UOP Cutting Tools - Metal Working Tools - Milling -

Cutting Parameters
for this family

45120 : Four flute end mills

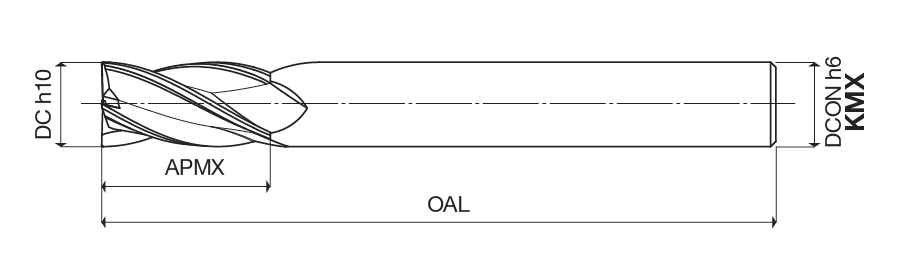

Designation	DC	APMX	OAL	DCONMS	NOF	GICAT
451200300KM	3.00	25.00	70.00	3.00	4	1857301
451200300KMX	3.00	25.00	70.00	3.00	4	1857302
451200400KM	4.00	32.00	72.00	4.00	4	1857313
451200400KMX	4.00	32.00	72.00	4.00	4	1857315
451200500KM	5.00	32.00	80.00	5.00	4	1857328
451200500KMX	5.00	32.00	80.00	5.00	4	1857329
451200600KM	6.00	40.00	80.00	6.00	4	1857342
451200600KMX	6.00	40.00	80.00	6.00	4	1857344
451200700KM	7.00	42.00	100.00	7.00	4	1857357
451200700KMX	7.00	42.00	100.00	7.00	4	1857358
451200800KM	8.00	42.00	100.00	8.00	4	1857366
451200800KMX	8.00	42.00	100.00	8.00	4	1857367
451200900KM	9.00	45.00	100.00	9.00	4	1857384
451200900KMX	9.00	45.00	100.00	9.00	4	1857385
451201000KM	10.00	45.00	100.00	10.00	4	1857394
451201000KMX	10.00	45.00	100.00	10.00	4	1857396
451201100KM	11.00	70.00	130.00	11.00	4	1857412
451201100KMX	11.00	70.00	130.00	11.00	4	1857413
451201200KM	12.00	75.00	160.00	12.00	4	1857419
451201200KMX	12.00	75.00	160.00	12.00	4	1857420
451201300KM	13.00	75.00	160.00	13.00	4	1857435
451201300KMX	13.00	75.00	160.00	13.00	4	1857436
451201400KM	14.00	75.00	160.00	14.00	4	1857442
451201400KMX	14.00	75.00	160.00	14.00	4	1857443
451201500KM	15.00	75.00	160.00	15.00	4	1857456
451201500KMX	15.00	75.00	160.00	15.00	4	1857457
451201600KM	16.00	75.00	160.00	16.00	4	1857463
451201600KMX	16.00	75.00	160.00	16.00	4	1857464
451201700KM	17.00	75.00	160.00	17.00	4	1857480
451201700KMX	17.00	75.00	160.00	17.00	4	1857481
451201800KM	18.00	75.00	160.00	18.00	4	1857485
451201800KMX	18.00	75.00	160.00	18.00	4	1857487
451201900KM	19.00	75.00	160.00	19.00	4	1857496
451201900KMX	19.00	75.00	160.00	19.00	4	1857497
451202000KM	20.00	75.00	160.00	20.00	4	1857501
451202000KMX	20.00	75.00	160.00	20.00	4	1857503
