Home Page
>
Milling
>
>
45135
Milling
Main Application
Cutting Parameters
for this family
45135 :

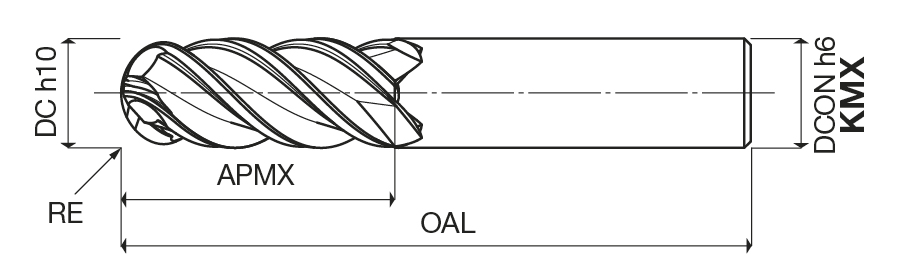

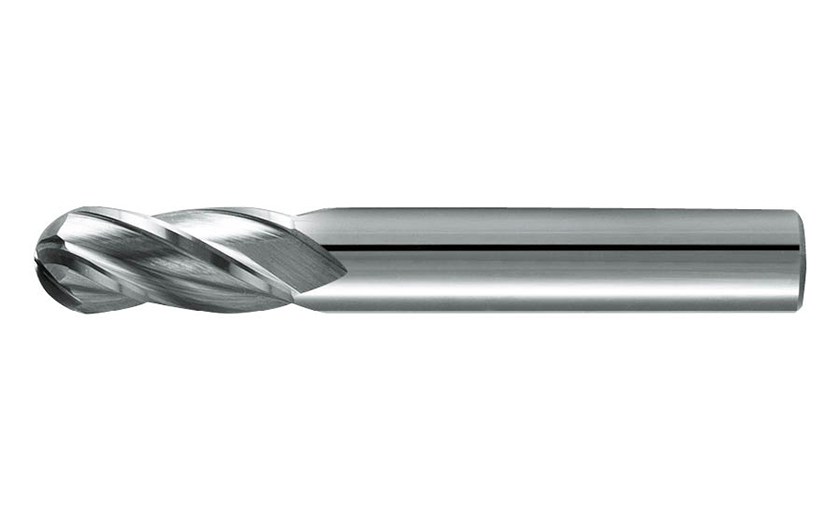

Ball-nosed four flute end mills
Designation
GICODE
DC
APMX
OAL
DCONMS
NOF
GICAT
GIREM
giic
451350200KM
2.00
7.00
40.00
2.00
4
1857519
0
451350200KMX
2.00
7.00
40.00
2.00
4
1857520
0
451350300KM
3.00
10.00
40.00
3.00
4
1857535
0
451350300KMX
3.00
10.00
40.00
3.00
4
1857536
0
451350400KM
4.00
11.00
50.00
4.00
4
1857551
0
451350400KMX
4.00
11.00
50.00
4.00
4
1857552
0
451350500KM
5.00
13.00
50.00
5.00
4
1857571
0
451350500KMX
5.00
13.00
50.00
5.00
4
1857572
0
451350600KM
6.00
16.00
57.00
6.00
4
1857589
0
451350600KMX
6.00
16.00
57.00
6.00
4
1857591
0
451350700KM
7.00
16.00
60.00
7.00
4
1857611
0
451350700KMX
7.00
16.00
60.00
7.00
4
1857612
0
451350800KM
8.00
19.00
63.00
8.00
4
1857621
0
451350800KMX
8.00
19.00
63.00
8.00
4
1857623
0
451350900KM
9.00
19.00
67.00
9.00
4
1857643
0
451350900KMX
9.00
19.00
67.00
9.00
4
1857644
0
451351000KM
10.00
22.00
72.00
10.00
4
1857653
0
451351000KMX
10.00
22.00
72.00
10.00
4
1857654
0
451351100KM
11.00
22.00
83.00
11.00
4
1857672
0
451351100KMX
11.00
22.00
83.00
11.00
4
1857673
0
451351200KM
12.00
26.00
83.00
12.00
4
1857679
0
451351200KMX
12.00
26.00
83.00
12.00
4
1857681
0
451351300KM
13.00
26.00
83.00
13.00
4
1857698
0
451351300KMX
13.00
26.00
83.00
13.00
4
1857699
0
451351400KM
14.00
28.00
83.00
14.00
4
1857707
0
451351400KMX
14.00
28.00
83.00
14.00
4
1857708
0
451351500KM
15.00
32.00
92.00
15.00
4
1857720
0
451351500KMX
15.00
32.00
92.00
15.00
4
1857722
0
451351600KM
16.00
32.00
92.00
16.00
4
1857729
0
451351600KMX
16.00
32.00
92.00
16.00
4
1857731
0
451351700KM
17.00
32.00
92.00
17.00
4
1857745
0
451351700KMX
17.00
32.00
92.00
17.00
4
1857746
0
451351800KM
18.00
32.00
92.00
18.00
4
1857750
0
451351800KMX
18.00
32.00
92.00
18.00
4
1857751
0
451351900KM
19.00
38.00
104.00
19.00
4
1857760
0
451351900KMX
19.00
38.00
104.00
19.00
4
1857761
0
451352000KM
20.00
38.00
104.00
20.00
4
1857766
0
451352000KMX
20.00
38.00
104.00
20.00
4
1857767
0
Click here for the Cutting Parameters for this family
