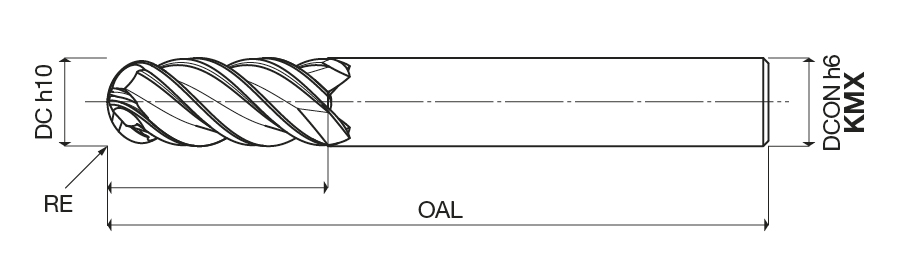

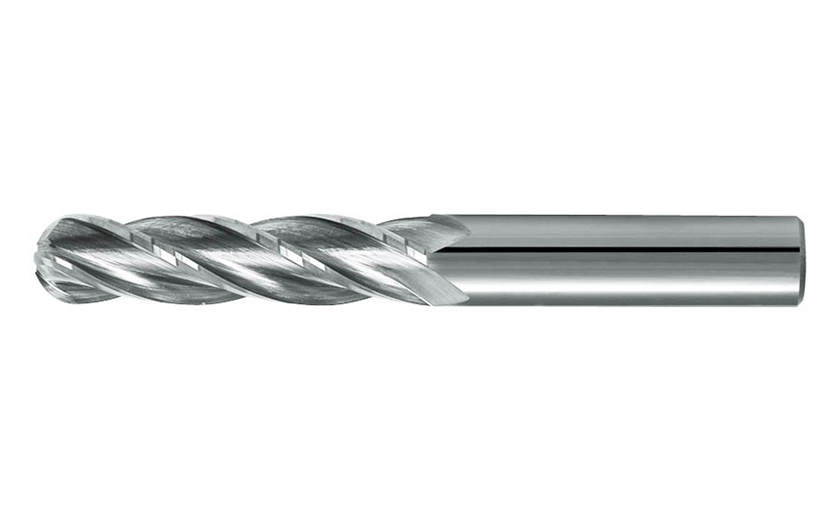

45140 : Ball-nosed four flute end mills

Designation	GICODE	DC	APMX	OAL	DCONMS	NOF	GICAT
451400300KM		3.00	20.00	55.00	3.00	4	1857780
451400300KMX		3.00	20.00	55.00	3.00	4	1857781
451400400KM		4.00	20.00	60.00	4.00	4	1857794
451400400KMX		4.00	20.00	60.00	4.00	4	1857795
451400500KM		5.00	20.00	60.00	5.00	4	1857812
451400500KMX		5.00	20.00	60.00	5.00	4	1857813
451400600KM		6.00	24.00	65.00	6.00	4	1857823
451400600KMX		6.00	24.00	65.00	6.00	4	1857825
451400700KM		7.00	30.00	75.00	7.00	4	1857840
451400700KMX		7.00	30.00	75.00	7.00	4	1857841
451400800KM		8.00	32.00	80.00	8.00	4	1857846
451400800KMX		8.00	32.00	80.00	8.00	4	1857848
451400900KM		9.00	32.00	80.00	9.00	4	1857862
451400900KMX		9.00	32.00	80.00	9.00	4	1857863
451401000KM		10.00	32.00	80.00	10.00	4	1857867
451401000KMX		10.00	32.00	80.00	10.00	4	1857868
451401100KM		11.00	50.00	100.00	11.00	4	1857882
451401100KMX		11.00	50.00	100.00	11.00	4	1857883
451401200KM		12.00	50.00	100.00	12.00	4	1857887
451401200KMX	Y	12.00	50.00	100.00	12.00	4	1857888
451401300KM		13.00	55.00	115.00	13.00	4	1857900
451401300KMX		13.00	55.00	115.00	13.00	4	1857901
451401400KM		14.00	55.00	115.00	14.00	4	1857905
451401400KMX		14.00	55.00	115.00	14.00	4	1857906
451401500KM		15.00	60.00	120.00	15.00	4	1857915
451401500KMX		15.00	60.00	120.00	15.00	4	1857916
451401600KM		16.00	60.00	120.00	16.00	4	1857921
451401600KMX		16.00	60.00	120.00	16.00	4	1857922
451401700KM		17.00	60.00	120.00	17.00	4	1857931
451401700KMX		17.00	60.00	120.00	17.00	4	1857932
451401800KM		18.00	60.00	120.00	18.00	4	1857936
451401800KMX		18.00	60.00	120.00	18.00	4	1857937
451401900KM		19.00	60.00	130.00	19.00	4	1857943
451401900KMX		19.00	60.00	130.00	19.00	4	1857944
451402000KM		20.00	60.00	130.00	20.00	4	1857948
451402000KMX		20.00	60.00	130.00	20.00	4	1857949
