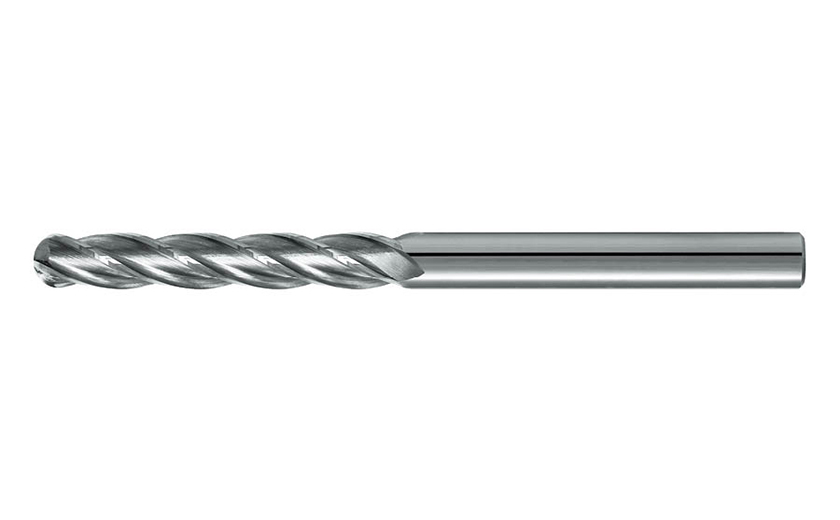

45150 : Ball-nosed four flute end mills

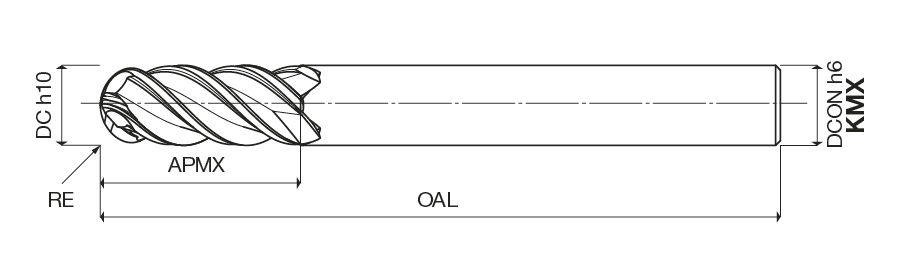

Designation	GICODE	DC	APMX	OAL	DCONMS	NOF	GICAT
451500300KM		3.00	25.00	70.00	3.00	4	1857959
451500300KMX		3.00	25.00	70.00	3.00	4	1857960
451500400KM		4.00	32.00	72.00	4.00	4	1857971
451500400KMX		4.00	32.00	72.00	4.00	4	1857972
451500500KM		5.00	32.00	80.00	5.00	4	1857986
451500500KMX		5.00	32.00	80.00	5.00	4	1857987
451500600KM		6.00	40.00	80.00	6.00	4	1857999
451500600KMX		6.00	40.00	80.00	6.00	4	1858000
451500700KM		7.00	42.00	100.00	7.00	4	1858015
451500700KMX		7.00	42.00	100.00	7.00	4	1858016
451500800KM		8.00	42.00	100.00	8.00	4	1858021
451500800KMX		8.00	42.00	100.00	8.00	4	1858022
451500900KM		9.00	45.00	100.00	9.00	4	1858035
451500900KMX		9.00	45.00	100.00	9.00	4	1858036
451501000KM		10.00	45.00	100.00	10.00	4	1858040
451501000KMX		10.00	45.00	100.00	10.00	4	1858041
451501100KM		11.00	70.00	130.00	11.00	4	1858051
451501100KMX		11.00	70.00	130.00	11.00	4	1858052
451501200KM		12.00	75.00	160.00	12.00	4	1858056
451501200KMX		12.00	75.00	160.00	12.00	4	1858057
451501300KM		13.00	75.00	160.00	13.00	4	1858066
451501300KMX		13.00	75.00	160.00	13.00	4	1858067
451501400KM		14.00	75.00	160.00	14.00	4	1858071
451501400KMX		14.00	75.00	160.00	14.00	4	1858072
451501500KM		15.00	75.00	160.00	15.00	4	1858078
451501500KMX		15.00	75.00	160.00	15.00	4	1858079
451501600KM		16.00	75.00	160.00	16.00	4	1858083
451501600KMX		16.00	75.00	160.00	16.00	4	1858084
451501700KM		17.00	75.00	160.00	17.00	4	1858091
451501700KMX	Y	17.00	75.00	160.00	17.00	4	1858092
451501800KM		18.00	75.00	160.00	18.00	4	1858096
451501800KMX		18.00	75.00	160.00	18.00	4	1858097
451501900KM		19.00	75.00	160.00	19.00	4	1858102
451501900KMX	Y	19.00	75.00	160.00	19.00	4	1858103
451502000KM		20.00	75.00	160.00	20.00	4	1858107
451502000KMX		20.00	75.00	160.00	20.00	4	1858108
