Milling
Main Application

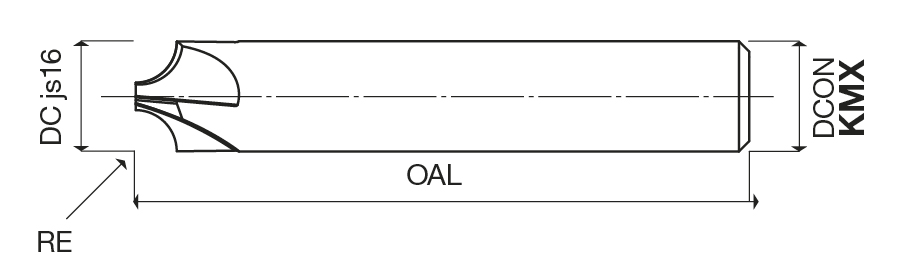

46805 : Corner-rounding cutters


 SKIN3  FINISHING CUTTING EDGE PROFILE H  WELDON ON REQUEST  QUALITY STANDARD UOP  NORMAL
  DesignationGICODEDCREOALDCONMSNOFGICATGIREMgiic
  468050100KMX  10.001.0050.0010.0041884065 0
  468050150KMX  10.001.5050.0010.0041884068 0
  468050200KMX  10.002.0050.0010.0041884071 0
  468050250KMX  10.002.5050.0010.0041884074 0
  468050300KMX  12.003.0060.0012.0041884077 0
  468050400KMX  12.004.0060.0012.0041884080 0
  468050500KMX  16.005.0075.0016.0041884083 0
  468050600KMX  16.006.0075.0016.0041884086 0
Click here for the Cutting Parameters for this family
