47105 :

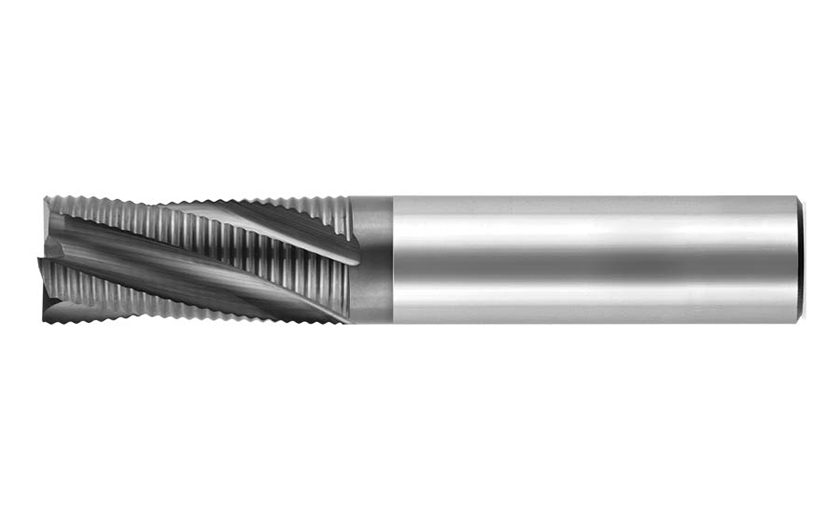

Roughing end mills. New geometry optimized for maximum chip removal

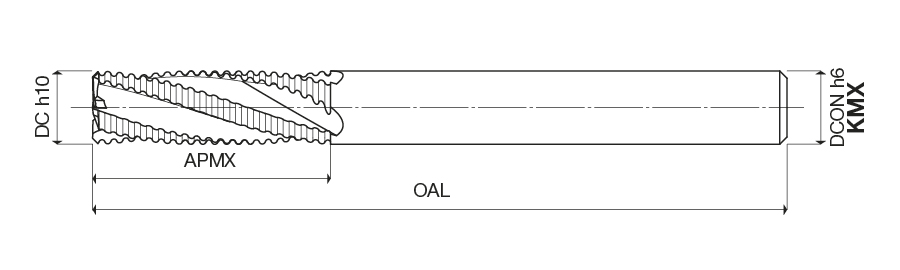

Designation
GICODE
DC
APMX
OAL
DCONMS
NOF
GICAT
GIREM
giic
471050500KM
5.00
13.00
50.00
5.00
3
1859176
0
471050500KMX
5.00
13.00
50.00
5.00
3
1859177
0
471050600KM
6.00
16.00
57.00
6.00
4
1859197
0
471050600KMX
6.00
16.00
57.00
6.00
4
1859199
0
471050700KM
7.00
16.00
60.00
7.00
4
1859220
0
471050700KMX
7.00
16.00
60.00
7.00
4
1859221
0
471050800KM
8.00
19.00
63.00
8.00
4
1859239
0
471050800KMX
8.00
19.00
63.00
8.00
4
1859241
0
471050900KM
9.00
19.00
67.00
9.00
4
1859260
0
471050900KMX
9.00
19.00
67.00
9.00
4
1859261
0
471051000KM
10.00
22.00
72.00
10.00
4
1859279
0
471051000KMX
10.00
22.00
72.00
10.00
4
1859281
0
471051100KM
11.00
22.00
83.00
11.00
4
1859304
0
471051100KMX
11.00
22.00
83.00
11.00
4
1859305
0
471051200KM
12.00
26.00
83.00
12.00
4
1859322
0
471051200KMX
12.00
26.00
83.00
12.00
4
1859324
0
471051300KM
13.00
26.00
83.00
13.00
4
1859346
0
471051300KMX
13.00
26.00
83.00
13.00
4
1859347
0
471051400KM
14.00
28.00
83.00
14.00
4
1859362
0
471051400KMX
14.00
28.00
83.00
14.00
4
1859364
0
471051500KM
15.00
32.00
92.00
15.00
4
1859383
0
471051500KMX
15.00
32.00
92.00
15.00
4
1859385
0
471051600KM
16.00
32.00
92.00
16.00
4
1859405
0
471051600KMX
16.00
32.00
92.00
16.00
4
1859407
0
471051700KM
17.00
32.00
92.00
17.00
4
1859428
0
471051700KMX
17.00
32.00
92.00
17.00
4
1859430
0
471051800KM
18.00
32.00
92.00
18.00
4
1859438
0
471051800KMX
18.00
32.00
92.00
18.00
4
1859439
0
471051900KM
19.00
38.00
104.00
19.00
4
1859456
0
471051900KMX
19.00
38.00
104.00
19.00
4
1859457
0
471052000KM
20.00
38.00
104.00
20.00
4
1859466
0
471052000KMX
20.00
38.00
104.00
20.00
4
1859468
0
Click here for the Cutting Parameters for this family
