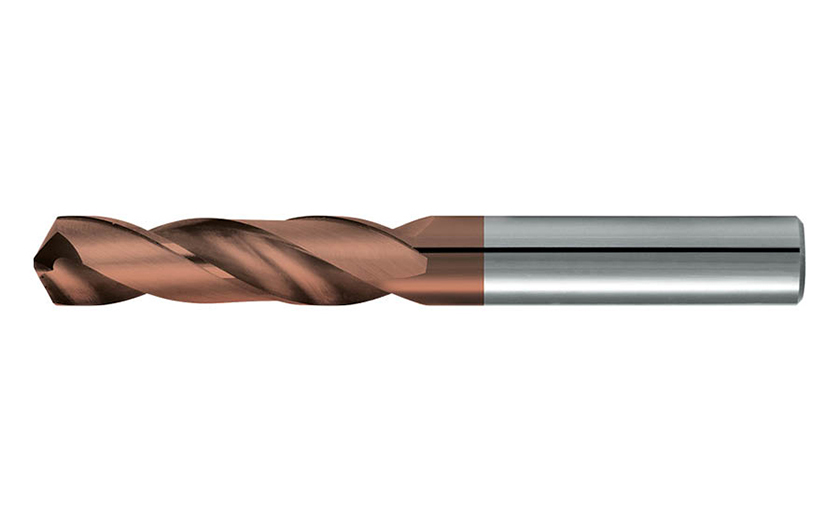

49105 : Two flute twist drills

EVO DRILL

LAMBDA 30

TANG ON REQUEST

HEAD ANGLE 120

DIN 1897

NORMAL

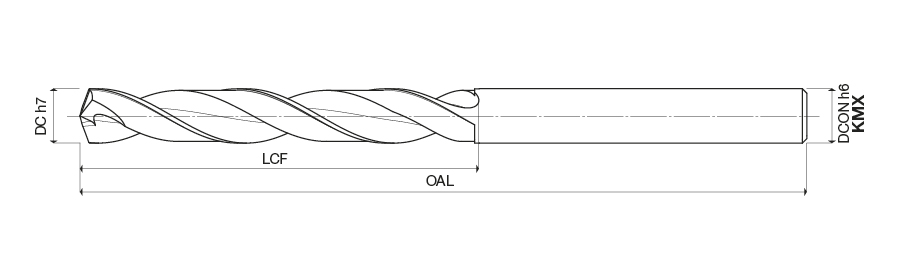

Designation	GICODE	DC	APMX	OAL	DCONMS	NOF				GICAT	GIREM	giic
491050200KM		2.00	12.00	38.00	2.00	2				1860847		0
491050200KMX		2.00	12.00	38.00	2.00	2				1860848		0
491050210KM		2.10	12.00	38.00	2.10	2				1860864		0
491050210KMX		2.10	12.00	38.00	2.10	2				1860865		0
491050220KM		2.20	13.00	40.00	2.20	2				1860875		0
491050220KMX		2.20	13.00	40.00	2.20	2				1860876		0
491050230KM		2.30	13.00	40.00	2.30	2				1860884		0
491050230KMX		2.30	13.00	40.00	2.30	2				1860885		0
491050240KM		2.40	14.00	43.00	2.40	2				1860890		0
491050240KMX		2.40	14.00	43.00	2.40	2				1860891		0
491050250KM		2.50	14.00	43.00	2.50	2				1860898		0
491050250KMX		2.50	14.00	43.00	2.50	2				1860899		0
491050260KM		2.60	14.00	43.00	2.60	2				1860913		0
491050260KMX		2.60	14.00	43.00	2.60	2				1860914		0
491050270KM		2.70	16.00	46.00	2.70	2				1860925		0
491050270KMX		2.70	16.00	46.00	2.70	2				1860926		0
491050280KM		2.80	16.00	46.00	2.80	2				1860936		0
491050280KMX		2.80	16.00	46.00	2.80	2				1860937		0
491050290KM		2.90	16.00	46.00	2.90	2				1860948		0
491050290KMX		2.90	16.00	46.00	2.90	2				1860949		0
491050300KM		3.00	16.00	46.00	3.00	2				1860956		0
491050300KMX		3.00	16.00	46.00	3.00	2				1860957		0
491050310KM		3.10	18.00	49.00	3.10	2				1860974		0
491050310KMX		3.10	18.00	49.00	3.10	2				1860975		0
491050320KM		3.20	18.00	49.00	3.20	2				1860984		0
491050320KMX		3.20	18.00	49.00	3.20	2				1860985		0
491050330KM		3.30	18.00	49.00	3.30	2				1860995		0
491050330KMX		3.30	18.00	49.00	3.30	2				1860996		0
491050340KM		3.40	20.00	52.00	3.40	2				1861009		0
491050340KMX		3.40	20.00	52.00	3.40	2				1861010		0
491050350KM		3.50	20.00	52.00	3.50	2				1861023		0
491050350KMX		3.50	20.00	52.00	3.50	2				1861024		0
491050360KM		3.60	20.00	52.00	3.60	2				1861036		0
491050360KMX		3.60	20.00	52.00	3.60	2				1861037		0
491050370KM		3.70	20.00	52.00	3.70	2				1861044		0
491050370KMX		3.70	20.00	52.00	3.70	2				1861045		0
491050380KM		3.80	22.00	55.00	3.80	2				1861051		0
491050380KMX		3.80	22.00	55.00	3.80	2				1861052		0
491050390KM		3.90	22.00	55.00	3.90	2				1861060		0
491050390KMX		3.90	22.00	55.00	3.90	2				1861061		0
491050400KM		4.00	22.00	55.00	4.00	2				1861069		0
491050400KMX		4.00	22.00	55.00	4.00	2				1861070		0
491050410KM		4.10	22.00	55.00	4.10	2				1861087		0
491050410KMX		4.10	22.00	55.00	4.10	2				1861088		0
491050420KM		4.20	22.00	55.00	4.20	2				1861096		0
491050420KMX		4.20	22.00	55.00	4.20	2				1861097		0
491050430KM		4.30	24.00	58.00	4.30	2				1861111		0
491050430KMX		4.30	24.00	58.00	4.30	2				1861112		0
491050440KM		4.40	24.00	58.00	4.40	2				1861126		0
491050440KMX		4.40	24.00	58.00	4.40	2				1861127		0
491050450KM		4.50	24.00	58.00	4.50	2				1861135		0
491050450KMX		4.50	24.00	58.00	4.50	2				1861136		0
491050460KM		4.60	24.00	58.00	4.60	2				1861148		0
491050460KMX		4.60	24.00	58.00	4.60	2				1861149		0
491050470KM		4.70	24.00	58.00	4.70	2				1861161		0
491050470KMX		4.70	24.00	58.00	4.70	2				1861162		0
491050480KM		4.80	26.00	62.00	4.80	2				1861171		0
491050480KMX		4.80	26.00	62.00	4.80	2				1861172		0
491050490KM		4.90	26.00	62.00	4.90	2				1861180		0
491050490KMX		4.90	26.00	62.00	4.90	2				1861181		0
491050500KM		5.00	26.00	62.00	5.00	2				1861186		0
491050500KMX		5.00	26.00	62.00	5.00	2				1861187		0
491050510KM		5.10	26.00	62.00	5.10	2				1861207		0
491050510KMX		5.10	26.00	62.00	5.10	2				1861208		0
491050520KM		5.20	26.00	62.00	5.20	2				1861224		0
491050520KMX		5.20	26.00	62.00	5.20	2				1861225		0
491050530KM		5.30	26.00	62.00	5.30	2				1861238		0
491050530KMX		5.30	26.00	62.00	5.30	2				1861239		0
491050540KM		5.40	28.00	66.00	5.40	2				1861249		0
491050540KMX		5.40	28.00	66.00	5.40	2				1861250		0
491050550KM		5.50	28.00	66.00	5.50	2				1861256		0
491050550KMX		5.50	28.00	66.00	5.50	2				1861257		0
491050560KM		5.60	28.00	66.00	5.60	2				1861268		0
491050560KMX		5.60	28.00	66.00	5.60	2				1861269		0
491050570KM		5.70	28.00	66.00	5.70	2				1861276		0
491050570KMX		5.70	28.00	66.00	5.70	2				1861277		0
491050580KM		5.80	28.00	66.00	5.80	2				1861284		0
491050580KMX		5.80	28.00	66.00	5.80	2				1861285		0
491050590KM		5.90	28.00	66.00	5.90	2				1861294		0
491050590KMX		5.90	28.00	66.00	5.90	2				1861295		0
491050600KM		6.00	28.00	66.00	6.00	2				1861303		0
491050600KMX		6.00	28.00	66.00	6.00	2				1861304		0
491050610KM		6.10	31.00	70.00	6.10	2				1861319		0
491050610KMX		6.10	31.00	70.00	6.10	2				1861320		0
491050620KM		6.20	31.00	70.00	6.20	2				1861331		0
491050620KMX		6.20	31.00	70.00	6.20	2				1861332		0
491050630KM		6.30	31.00	70.00	6.30	2				1861341		0
491050630KMX		6.30	31.00	70.00	6.30	2				1861342		0
491050640KM		6.40	31.00	70.00	6.40	2				1861349		0
491050640KMX		6.40	31.00	70.00	6.40	2				1861350		0
491050650KM		6.50	31.00	70.00	6.50	2				1861356		0
491050650KMX		6.50	31.00	70.00	6.50	2				1861357		0
491050660KM		6.60	31.00	70.00	6.60	2				1861370		0
491050660KMX		6.60	31.00	70.00	6.60	2				1861371		0
491050670KM		6.70	31.00	70.00	6.70	2				1861378		0
491050670KMX		6.70	31.00	70.00	6.70	2				1861379		0
491050680KM		6.80	34.00	74.00	6.80	2				1861389		0
491050680KMX		6.80	34.00	74.00	6.80	2				1861390		0
491050690KM		6.90	34.00	74.00	6.90	2				1861407		0
491050690KMX		6.90	34.00	74.00	6.90	2				1861408		0
491050700KM		7.00	34.00	74.00	7.00	2				1861415		0
491050700KMX		7.00	34.00	74.00	7.00	2				1861416		0
491050710KM		7.10	34.00	74.00	7.10	2				1861429		0
491050710KMX		7.10	34.00	74.00	7.10	2				1861430		0
491050720KM		7.20	34.00	74.00	7.20	2				1861435		0
491050720KMX		7.20	34.00	74.00	7.20	2				1861436		0
491050730KM		7.30	34.00	74.00	7.30	2				1861441		0
491050730KMX		7.30	34.00	74.00	7.30	2				1861442		0
491050740KM		7.40	34.00	74.00	7.40	2				1861451		0
491050740KMX		7.40	34.00	74.00	7.40	2				1861452		0
491050750KM		7.50	34.00	74.00	7.50	2				1861461		0
491050750KMX		7.50	34.00	74.00	7.50	2				1861462		0
491050760KM		7.60	37.00	79.00	7.60	2				1861471		0
491050760KMX		7.60	37.00	79.00	7.60	2				1861472		0
491050770KM		7.70	37.00	79.00	7.70	2				1861476		0
491050770KMX		7.70	37.00	79.00	7.70	2				1861477		0
491050780KM		7.80	37.00	79.00	7.80	2				1861483		0
491050780KMX		7.80	37.00	79.00	7.80	2				1861484		0
491050790KM		7.90	37.00	79.00	7.90	2				1861494		0
491050790KMX		7.90	37.00	79.00	7.90	2				1861495		0
491050800KM		8.00	37.00	79.00	8.00	2				1861502		0
491050800KMX		8.00	37.00	79.00	8.00	2				1861503		0
491050810KM		8.10	37.00	79.00	8.10	2				1861521		0
491050810KMX		8.10	37.00	79.00	8.10	2				1861522		0
491050820KM		8.20	37.00	79.00	8.20	2				1861529		0
491050820KMX		8.20	37.00	79.00	8.20	2				1861530		0
491050830KM		8.30	37.00	79.00	8.30	2				1861539		0
491050830KMX		8.30	37.00	79.00	8.30	2				1861540		0
491050840KM		8.40	37.00	79.00	8.40	2				1861548		0
491050840KMX		8.40	37.00	79.00	8.40	2				1861549		0
491050850KM		8.50	37.00	79.00	8.50	2				1861557		0
491050850KMX		8.50	37.00	79.00	8.50	2				1861558		0
491050860KM		8.60	40.00	84.00	8.60	2				1861573		0
491050860KMX		8.60	40.00	84.00	8.60	2				1861574		0
491050870KM		8.70	40.00	84.00	8.70	2				1861581		0
491050870KMX		8.70	40.00	84.00	8.70	2				1861582		0
491050880KM		8.80	40.00	84.00	8.80	2				1861592		0
491050880KMX		8.80	40.00	84.00	8.80	2				1861593		0
491050890KM		8.90	40.00	84.00	8.90	2				1861605		0
491050890KMX		8.90	40.00	84.00	8.90	2				1861606		0
491050900KM		9.00	40.00	84.00	9.00	2				1861612		0
491050900KMX		9.00	40.00	84.00	9.00	2				1861613		0
491050910KM		9.10	40.00	84.00	9.10	2				1861631		0
491050910KMX		9.10	40.00	84.00	9.10	2				1861632		0
491050920KM		9.20	40.00	84.00	9.20	2				1861638		0
491050920KMX		9.20	40.00	84.00	9.20	2				1861639		0
491050930KM		9.30	40.00	84.00	9.30	2				1861647		0
491050930KMX		9.30	40.00	84.00	9.30	2				1861648		0
491050940KM		9.40	40.00	84.00	9.40	2				1861654		0
491050940KMX		9.40	40.00	84.00	9.40	2				1861655		0
491050950KM		9.50	40.00	84.00	9.50	2				1861662		0
491050950KMX		9.50	40.00	84.00	9.50	2				1861663		0
491050960KM		9.60	43.00	89.00	9.60	2				1861673		0
491050960KMX		9.60	43.00	89.00	9.60	2				1861674		0
491050970KM		9.70	43.00	89.00	9.70	2				1861682		0
491050970KMX		9.70	43.00	89.00	9.70	2				1861683		0
491050980KM		9.80	43.00	89.00	9.80	2				1861690		0
491050980KMX		9.80	43.00	89.00	9.80	2				1861691		0
491050990KM		9.90	43.00	89.00	9.90	2				1861697		0
491050990KMX		9.90	43.00	89.00	9.90	2				1861698		0
491051000KM		10.00	43.00	89.00	10.00	2				1861703		0
491051000KMX		10.00	43.00	89.00	10.00	2				1861704		0
491051010KM		10.10	43.00	89.00	10.10	2				1861720		0
491051010KMX		10.10	43.00	89.00	10.10	2				1861721		0
491051020KM		10.20	43.00	89.00	10.20	2				1861730		0
491051020KMX		10.20	43.00	89.00	10.20	2				1861731		0
491051030KM		10.30	43.00	89.00	10.30	2				1861743		0
491051030KMX		10.30	43.00	89.00	10.30	2				1861744		0
491051040KM		10.40	43.00	89.00	10.40	2				1861755		0
491051040KMX		10.40	43.00	89.00	10.40	2				1861756		0
491051050KM		10.50	43.00	89.00	10.50	2				1861763		0
491051050KMX		10.50	43.00	89.00	10.50	2				1861764		0
491051060KM		10.60	43.00	89.00	10.60	2				1861778		0
491051060KMX		10.60	43.00	89.00	10.60	2				1861779		0
491051070KM		10.70	47.00	95.00	10.70	2				1861784		0
491051070KMX		10.70	47.00	95.00	10.70	2				1861785		0
491051080KM		10.80	47.00	95.00	10.80	2				1861790		0
491051080KMX		10.80	47.00	95.00	10.80	2				1861791		0
491051090KM		10.90	47.00	95.00	10.90	2				1861802		0
491051090KMX		10.90	47.00	95.00	10.90	2				1861803		0
491051100KM		11.00	47.00	95.00	11.00	2				1861809		0
491051100KMX		11.00	47.00	95.00	11.00	2				1861810		0
491051110KM		11.10	47.00	95.00	11.10	2				1861824		0
491051110KMX		11.10	47.00	95.00	11.10	2				1861825		0
491051120KM		11.20	47.00	95.00	11.20	2				1861831		0
491051120KMX		11.20	47.00	95.00	11.20	2				1861832		0
491051130KM		11.30	47.00	95.00	11.30	2				1861838		0
491051130KMX		11.30	47.00	95.00	11.30	2				1861839		0
491051140KM		11.40	47.00	95.00	11.40	2				1861843		0
491051140KMX		11.40	47.00	95.00	11.40	2				1861844		0
491051150KM		11.50	47.00	95.00	11.50	2				1861848		0
491051150KMX		11.50	47.00	95.00	11.50	2				1861849		0
491051160KM		11.60	47.00	95.00	11.60	2				1861856		0
491051160KMX		11.60	47.00	95.00	11.60	2				1861857		0
491051170KM		11.70	47.00	95.00	11.70	2				1861862		0
491051170KMX		11.70	47.00	95.00	11.70	2				1861863		0
491051180KM		11.80	47.00	95.00	11.80	2				1861867		0
491051180KMX		11.80	47.00	95.00	11.80	2				1861868		0
491051190KM		11.90	51.00	102.00	11.90	2				1861875		0
491051190KMX		11.90	51.00	102.00	11.90	2				1861876		0
491051200KM		12.00	51.00	102.00	12.00	2				1861880		0
491051200KMX		12.00	51.00	102.00	12.00	2				1861881		0
491051250KM		12.50	51.00	102.00	12.50	2				1861893		0
491051250KMX		12.50	51.00	102.00	12.50	2				1861894		0
491051300KM		13.00	51.00	102.00	13.00	2				1861907		0
491051300KMX		13.00	51.00	102.00	13.00	2				1861908		0
491051350KM		13.50	54.00	107.00	13.50	2				1861921		0
491051350KMX		13.50	54.00	107.00	13.50	2				1861922		0
491051400KM		14.00	54.00	107.00	14.00	2				1861931		0
491051400KMX		14.00	54.00	107.00	14.00	2				1861932		0
491051450KM		14.50	56.00	111.00	14.50	2				1861946		0
491051450KMX		14.50	56.00	111.00	14.50	2				1861947		0
491051500KM		15.00	56.00	111.00	15.00	2				1861958		0
491051500KMX		15.00	56.00	111.00	15.00	2				1861959		0
491051550KM		15.50	58.00	115.00	15.50	2				1861968		0
491051550KMX		15.50	58.00	115.00	15.50	2				1861969		0
491051600KM		16.00	58.00	115.00	16.00	2				1861975		0
491051600KMX		16.00	58.00	115.00	16.00	2				1861976		0
491051700KM		17.00	60.00	119.00	17.00	2				1861984		0
491051700KMX		17.00	60.00	119.00	17.00	2				1861985		0
491051800KM		18.00	62.00	123.00	18.00	2				1861991		0
491051800KMX		18.00	62.00	123.00	18.00	2				1861992		0
491051900KM		19.00	64.00	127.00	19.00	2				1862002		0
491051900KMX		19.00	64.00	127.00	19.00	2				1862003		0
491052000KM		20.00	66.00	131.00	20.00	2				1862012		0
491052000KMX		20.00	66.00	131.00	20.00	2				1862013		0

Click here for the Cutting Parameters for this family

Site Map

Milling Hole Making Reaming

Any use of the UOP e-catalogue and any transactions which may be performed as a result of using this program are subject to UOP’s General Terms of Sale
Privacy Policy Cookie Policy
© 2026 UOP S.p.A. Manufacturer of Metalworking Tools (UOP.it) All Rights Reserved
