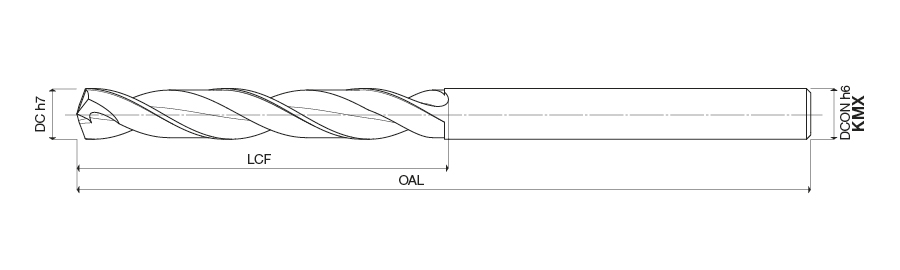

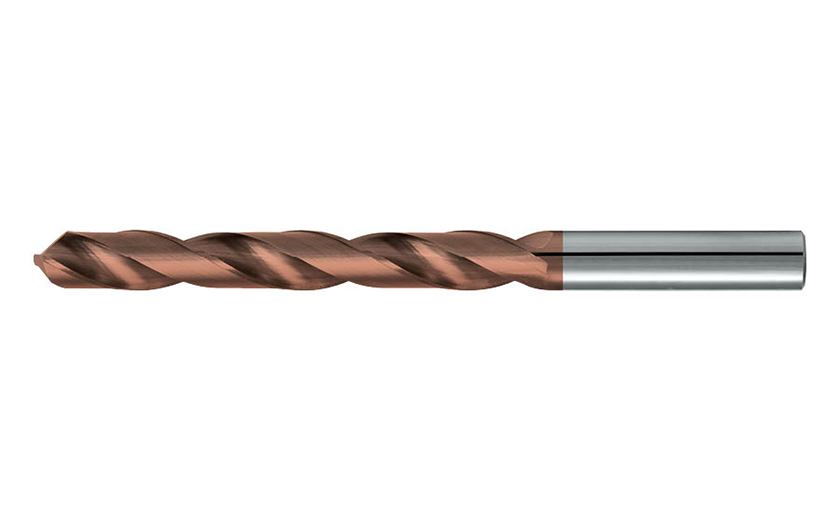

49120 : Two flute twist drills

EVO DRILL

LAMBDA 30

TANG ON REQUEST

HEAD ANGLE 120

DIN 338

LONG

Designation	GICODE	DC	APMX	OAL	DCONMS	NOF				GICAT	GIREM	giic
491200200KM		2.00	24.00	49.00	2.00	2				1862022		0
491200200KMX		2.00	24.00	49.00	2.00	2				1862023		0
491200210KM		2.10	24.00	49.00	2.10	2				1862034		0
491200210KMX	Y	2.10	24.00	49.00	2.10	2				1862035		0
491200220KM		2.20	27.00	53.00	2.20	2				1862039		0
491200220KMX		2.20	27.00	53.00	2.20	2				1862040		0
491200230KM		2.30	27.00	53.00	2.30	2				1862046		0
491200230KMX		2.30	27.00	53.00	2.30	2				1862047		0
491200240KM		2.40	30.00	57.00	2.40	2				1862054		0
491200240KMX		2.40	30.00	57.00	2.40	2				1862055		0
491200250KM		2.50	30.00	57.00	2.50	2				1862062		0
491200250KMX		2.50	30.00	57.00	2.50	2				1862063		0
491200260KM		2.60	30.00	57.00	2.60	2				1862076		0
491200260KMX		2.60	30.00	57.00	2.60	2				1862077		0
491200270KM		2.70	33.00	61.00	2.70	2				1862088		0
491200270KMX		2.70	33.00	61.00	2.70	2				1862089		0
491200280KM		2.80	33.00	61.00	2.80	2				1862096		0
491200280KMX		2.80	33.00	61.00	2.80	2				1862097		0
491200290KM		2.90	33.00	61.00	2.90	2				1862105		0
491200290KMX		2.90	33.00	61.00	2.90	2				1862106		0
491200300KM		3.00	33.00	61.00	3.00	2				1862114		0
491200300KMX		3.00	33.00	61.00	3.00	2				1862115		0
491200310KM		3.10	36.00	65.00	3.10	2				1862129		0
491200310KMX		3.10	36.00	65.00	3.10	2				1862130		0
491200320KM		3.20	36.00	65.00	3.20	2				1862138		0
491200320KMX		3.20	36.00	65.00	3.20	2				1862139		0
491200330KM		3.30	36.00	65.00	3.30	2				1862145		0
491200330KMX		3.30	36.00	65.00	3.30	2				1862146		0
491200340KM		3.40	39.00	70.00	3.40	2				1862157		0
491200340KMX		3.40	39.00	70.00	3.40	2				1862158		0
491200350KM		3.50	39.00	70.00	3.50	2				1862166		0
491200350KMX		3.50	39.00	70.00	3.50	2				1862167		0
491200360KM		3.60	39.00	70.00	3.60	2				1862181		0
491200360KMX		3.60	39.00	70.00	3.60	2				1862182		0
491200370KM		3.70	39.00	70.00	3.70	2				1862188		0
491200370KMX		3.70	39.00	70.00	3.70	2				1862189		0
491200380KM		3.80	43.00	75.00	3.80	2				1862197		0
491200380KMX		3.80	43.00	75.00	3.80	2				1862198		0
491200390KM		3.90	43.00	75.00	3.90	2				1862209		0
491200390KMX		3.90	43.00	75.00	3.90	2				1862210		0
491200400KM		4.00	43.00	75.00	4.00	2				1862220		0
491200400KMX		4.00	43.00	75.00	4.00	2				1862221		0
491200410KM		4.10	43.00	75.00	4.10	2				1862237		0
491200410KMX		4.10	43.00	75.00	4.10	2				1862238		0
491200420KM		4.20	43.00	75.00	4.20	2				1862243		0
491200420KMX		4.20	43.00	75.00	4.20	2				1862244		0
491200430KM		4.30	47.00	80.00	4.30	2				1862255		0
491200430KMX		4.30	47.00	80.00	4.30	2				1862256		0
491200440KM		4.40	47.00	80.00	4.40	2				1862268		0
491200440KMX		4.40	47.00	80.00	4.40	2				1862269		0
491200450KM		4.50	47.00	80.00	4.50	2				1862274		0
491200450KMX		4.50	47.00	80.00	4.50	2				1862275		0
491200460KM		4.60	47.00	80.00	4.60	2				1862288		0
491200460KMX		4.60	47.00	80.00	4.60	2				1862289		0
491200470KM		4.70	47.00	80.00	4.70	2				1862295		0
491200470KMX		4.70	47.00	80.00	4.70	2				1862296		0
491200480KM		4.80	52.00	86.00	4.80	2				1862305		0
491200480KMX		4.80	52.00	86.00	4.80	2				1862306		0
491200490KM		4.90	52.00	86.00	4.90	2				1862314		0
491200490KMX		4.90	52.00	86.00	4.90	2				1862315		0
491200500KM		5.00	52.00	86.00	5.00	2				1862322		0
491200500KMX		5.00	52.00	86.00	5.00	2				1862323		0
491200510KM		5.10	52.00	86.00	5.10	2				1862337		0
491200510KMX		5.10	52.00	86.00	5.10	2				1862338		0
491200520KM		5.20	52.00	86.00	5.20	2				1862344		0
491200520KMX		5.20	52.00	86.00	5.20	2				1862345		0
491200530KM		5.30	52.00	86.00	5.30	2				1862355		0
491200530KMX		5.30	52.00	86.00	5.30	2				1862356		0
491200540KM		5.40	57.00	93.00	5.40	2				1862362		0
491200540KMX		5.40	57.00	93.00	5.40	2				1862363		0
491200550KM		5.50	57.00	93.00	5.50	2				1862368		0
491200550KMX		5.50	57.00	93.00	5.50	2				1862369		0
491200560KM		5.60	57.00	93.00	5.60	2				1862380		0
491200560KMX		5.60	57.00	93.00	5.60	2				1862381		0
491200570KM		5.70	57.00	93.00	5.70	2				1862385		0
491200570KMX		5.70	57.00	93.00	5.70	2				1862386		0
491200580KM		5.80	57.00	93.00	5.80	2				1862392		0
491200580KMX		5.80	57.00	93.00	5.80	2				1862393		0
491200590KM		5.90	57.00	93.00	5.90	2				1862403		0
491200590KMX		5.90	57.00	93.00	5.90	2				1862404		0
491200600KM		6.00	57.00	93.00	6.00	2				1862410		0
491200600KMX		6.00	57.00	93.00	6.00	2				1862411		0
491200610KM		6.10	63.00	101.00	6.10	2				1862425		0
491200610KMX		6.10	63.00	101.00	6.10	2				1862426		0
491200620KM		6.20	63.00	101.00	6.20	2				1862431		0
491200620KMX		6.20	63.00	101.00	6.20	2				1862432		0
491200630KM		6.30	63.00	101.00	6.30	2				1862438		0
491200630KMX		6.30	63.00	101.00	6.30	2				1862439		0
491200640KM		6.40	63.00	101.00	6.40	2				1862449		0
491200640KMX		6.40	63.00	101.00	6.40	2				1862450		0
491200650KM		6.50	63.00	101.00	6.50	2				1862457		0
491200650KMX		6.50	63.00	101.00	6.50	2				1862458		0
491200660KM		6.60	63.00	101.00	6.60	2				1862471		0
491200660KMX		6.60	63.00	101.00	6.60	2				1862472		0
491200670KM		6.70	63.00	101.00	6.70	2				1862477		0
491200670KMX		6.70	63.00	101.00	6.70	2				1862478		0
491200680KM		6.80	69.00	109.00	6.80	2				1862486		0
491200680KMX		6.80	69.00	109.00	6.80	2				1862487		0
491200690KM		6.90	69.00	109.00	6.90	2				1862499		0
491200690KMX		6.90	69.00	109.00	6.90	2				1862500		0
491200700KM		7.00	69.00	109.00	7.00	2				1862505		0
491200700KMX		7.00	69.00	109.00	7.00	2				1862506		0
491200710KM		7.10	69.00	109.00	7.10	2				1862514		0
491200710KMX		7.10	69.00	109.00	7.10	2				1862515		0
491200720KM		7.20	69.00	109.00	7.20	2				1862521		0
491200720KMX		7.20	69.00	109.00	7.20	2				1862522		0
491200730KM		7.30	69.00	109.00	7.30	2				1862527		0
491200730KMX		7.30	69.00	109.00	7.30	2				1862528		0
491200740KM		7.40	69.00	109.00	7.40	2				1862534		0
491200740KMX		7.40	69.00	109.00	7.40	2				1862535		0
491200750KM		7.50	69.00	109.00	7.50	2				1862540		0
491200750KMX		7.50	69.00	109.00	7.50	2				1862541		0
491200760KM		7.60	75.00	117.00	7.60	2				1862550		0
491200760KMX		7.60	75.00	117.00	7.60	2				1862551		0
491200770KM		7.70	75.00	117.00	7.70	2				1862556		0
491200770KMX		7.70	75.00	117.00	7.70	2				1862557		0
491200780KM		7.80	75.00	117.00	7.80	2				1862565		0
491200780KMX		7.80	75.00	117.00	7.80	2				1862566		0
491200790KM		7.90	75.00	117.00	7.90	2				1862575		0
491200790KMX		7.90	75.00	117.00	7.90	2				1862576		0
491200800KM		8.00	75.00	117.00	8.00	2				1862585		0
491200800KMX		8.00	75.00	117.00	8.00	2				1862586		0
491200810KM		8.10	75.00	117.00	8.10	2				1862596		0
491200810KMX		8.10	75.00	117.00	8.10	2				1862597		0
491200820KM		8.20	75.00	117.00	8.20	2				1862603		0
491200820KMX		8.20	75.00	117.00	8.20	2				1862604		0
491200830KM		8.30	75.00	117.00	8.30	2				1862613		0
491200830KMX		8.30	75.00	117.00	8.30	2				1862614		0
491200840KM		8.40	75.00	117.00	8.40	2				1862622		0
491200840KMX		8.40	75.00	117.00	8.40	2				1862623		0
491200850KM		8.50	75.00	117.00	8.50	2				1862628		0
491200850KMX		8.50	75.00	117.00	8.50	2				1862629		0
491200860KM		8.60	81.00	125.00	8.60	2				1862641		0
491200860KMX		8.60	81.00	125.00	8.60	2				1862642		0
491200870KM		8.70	81.00	125.00	8.70	2				1862647		0
491200870KMX		8.70	81.00	125.00	8.70	2				1862648		0
491200880KM		8.80	81.00	125.00	8.80	2				1862655		0
491200880KMX		8.80	81.00	125.00	8.80	2				1862656		0
491200890KM		8.90	81.00	125.00	8.90	2				1862663		0
491200890KMX		8.90	81.00	125.00	8.90	2				1862664		0
491200900KM		9.00	81.00	125.00	9.00	2				1862668		0
491200900KMX		9.00	81.00	125.00	9.00	2				1862669		0
491200910KM		9.10	81.00	125.00	9.10	2				1862680		0
491200910KMX		9.10	81.00	125.00	9.10	2				1862681		0
491200920KM		9.20	81.00	125.00	9.20	2				1862686		0
491200920KMX		9.20	81.00	125.00	9.20	2				1862687		0
491200930KM		9.30	81.00	125.00	9.30	2				1862691		0
491200930KMX		9.30	81.00	125.00	9.30	2				1862692		0
491200940KM		9.40	81.00	125.00	9.40	2				1862696		0
491200940KMX		9.40	81.00	125.00	9.40	2				1862697		0
491200950KM		9.50	81.00	125.00	9.50	2				1862701		0
491200950KMX		9.50	81.00	125.00	9.50	2				1862702		0
491200960KM		9.60	87.00	133.00	9.60	2				1862709		0
491200960KMX		9.60	87.00	133.00	9.60	2				1862710		0
491200970KM		9.70	87.00	133.00	9.70	2				1862715		0
491200970KMX		9.70	87.00	133.00	9.70	2				1862716		0
491200980KM		9.80	87.00	133.00	9.80	2				1862722		0
491200980KMX		9.80	87.00	133.00	9.80	2				1862723		0
491200990KM		9.90	87.00	133.00	9.90	2				1862732		0
491200990KMX		9.90	87.00	133.00	9.90	2				1862733		0
491201000KM		10.00	87.00	133.00	10.00	2				1862739		0
491201000KMX		10.00	87.00	133.00	10.00	2				1862740		0
491201010KM		10.10	87.00	133.00	10.10	2				1862753		0
491201010KMX		10.10	87.00	133.00	10.10	2				1862754		0
491201020KM		10.20	87.00	133.00	10.20	2				1862758		0
491201020KMX		10.20	87.00	133.00	10.20	2				1862759		0
491201030KM		10.30	87.00	133.00	10.30	2				1862767		0
491201030KMX		10.30	87.00	133.00	10.30	2				1862768		0
491201040KM		10.40	87.00	133.00	10.40	2				1862772		0
491201040KMX		10.40	87.00	133.00	10.40	2				1862773		0
491201050KM		10.50	87.00	133.00	10.50	2				1862777		0
491201050KMX		10.50	87.00	133.00	10.50	2				1862778		0
491201060KM		10.60	87.00	133.00	10.60	2				1862789		0
491201060KMX		10.60	87.00	133.00	10.60	2				1862790		0
491201070KM		10.70	94.00	142.00	10.70	2				1862794		0
491201070KMX		10.70	94.00	142.00	10.70	2				1862795		0
491201080KM		10.80	94.00	142.00	10.80	2				1862802		0
491201080KMX		10.80	94.00	142.00	10.80	2				1862803		0
491201090KM		10.90	94.00	142.00	10.90	2				1862811		0
491201090KMX		10.90	94.00	142.00	10.90	2				1862812		0
491201100KM		11.00	94.00	142.00	11.00	2				1862816		0
491201100KMX		11.00	94.00	142.00	11.00	2				1862817		0
491201110KM		11.10	94.00	142.00	11.10	2				1862825		0
491201110KMX		11.10	94.00	142.00	11.10	2				1862826		0
491201120KM		11.20	94.00	142.00	11.20	2				1862831		0
491201120KMX		11.20	94.00	142.00	11.20	2				1862832		0
491201130KM		11.30	94.00	142.00	11.30	2				1862836		0
491201130KMX		11.30	94.00	142.00	11.30	2				1862837		0
491201140KM		11.40	94.00	142.00	11.40	2				1862841		0
491201140KMX		11.40	94.00	142.00	11.40	2				1862842		0
491201150KM		11.50	94.00	142.00	11.50	2				1862846		0
491201150KMX		11.50	94.00	142.00	11.50	2				1862847		0
491201160KM		11.60	94.00	142.00	11.60	2				1862855		0
491201160KMX		11.60	94.00	142.00	11.60	2				1862856		0
491201170KM		11.70	94.00	142.00	11.70	2				1862860		0
491201170KMX		11.70	94.00	142.00	11.70	2				1862861		0
491201180KM		11.80	94.00	142.00	11.80	2				1862865		0
491201180KMX		11.80	94.00	142.00	11.80	2				1862866		0
491201190KM		11.90	101.00	151.00	11.90	2				1862870		0
491201190KMX		11.90	101.00	151.00	11.90	2				1862871		0
491201200KM		12.00	101.00	151.00	12.00	2				1862875		0
491201200KMX		12.00	101.00	151.00	12.00	2				1862876		0
491201250KM		12.50	101.00	151.00	12.50	2				1862886		0
491201250KMX		12.50	101.00	151.00	12.50	2				1862887		0
491201300KM		13.00	101.00	151.00	13.00	2				1862895		0
491201300KMX		13.00	101.00	151.00	13.00	2				1862896		0
491201350KM		13.50	108.00	160.00	13.50	2				1862903		0
491201350KMX		13.50	108.00	160.00	13.50	2				1862904		0
491201400KM		14.00	108.00	160.00	14.00	2				1862909		0
491201400KMX		14.00	108.00	160.00	14.00	2				1862910		0
491201450KM		14.50	114.00	169.00	14.50	2				1862918		0
491201450KMX		14.50	114.00	169.00	14.50	2				1862919		0
491201500KM		15.00	114.00	169.00	15.00	2				1862923		0
491201500KMX		15.00	114.00	169.00	15.00	2				1862924		0
491201550KM		15.50	120.00	178.00	15.50	2				1862931		0
491201550KMX		15.50	120.00	178.00	15.50	2				1862932		0
491201600KM		16.00	120.00	178.00	16.00	2				1862937		0
491201600KMX		16.00	120.00	178.00	16.00	2				1862938		0
491201700KM		17.00	125.00	184.00	17.00	2				1862944		0
491201700KMX		17.00	125.00	184.00	17.00	2				1862945		0
491201800KM		18.00	130.00	191.00	18.00	2				1862949		0
491201800KMX		18.00	130.00	191.00	18.00	2				1862950		0
491201900KM		19.00	135.00	198.00	19.00	2				1862955		0
491201900KMX		19.00	135.00	198.00	19.00	2				1862956		0
491202000KM		20.00	140.00	205.00	20.00	2				1862960		0
491202000KMX		20.00	140.00	205.00	20.00	2				1862961		0

Click here for the Cutting Parameters for this family

Site Map

Milling Hole Making Reaming

Any use of the UOP e-catalogue and any transactions which may be performed as a result of using this program are subject to UOP’s General Terms of Sale
Privacy Policy Cookie Policy
© 2026 UOP S.p.A. Manufacturer of Metalworking Tools (UOP.it) All Rights Reserved
