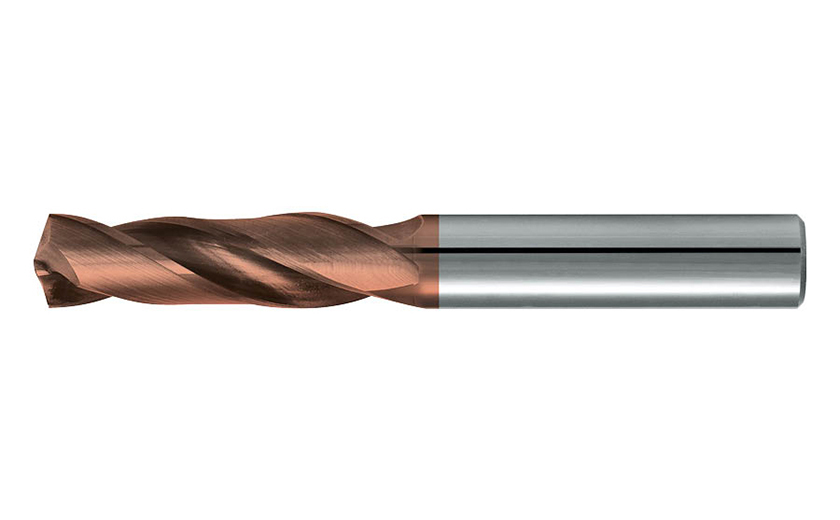

49305 : "TS" two flute drills

EVO DRILL

LAMBDA 30

HEAD ANGLE 140

UNI DIN 6539 ISO

NORMAL

Designation	GICODE	DC	APMX	OAL	DCONMS	NOF					GICAT	GIREM	giic
493050200KM		2.00	16.00	46.00	2.00	2					1862965		0
493050200KMX		2.00	16.00	46.00	2.00	2					1862966		0
493050210KM		2.10	16.00	46.00	2.10	2					1862984		0
493050210KMX		2.10	16.00	46.00	2.10	2					1862985		0
493050220KM		2.20	16.00	46.00	2.20	2					1862994		0
493050220KMX		2.20	16.00	46.00	2.20	2					1862995		0
493050230KM		2.30	16.00	46.00	2.30	2					1863004		0
493050230KMX		2.30	16.00	46.00	2.30	2					1863005		0
493050240KM		2.40	16.00	46.00	2.40	2					1863015		0
493050240KMX		2.40	16.00	46.00	2.40	2					1863016		0
493050250KM		2.50	16.00	46.00	2.50	2					1863029		0
493050250KMX		2.50	16.00	46.00	2.50	2					1863030		0
493050260KM		2.60	16.00	46.00	2.60	2					1863046		0
493050260KMX		2.60	16.00	46.00	2.60	2					1863047		0
493050270KM		2.70	16.00	46.00	2.70	2					1863061		0
493050270KMX		2.70	16.00	46.00	2.70	2					1863062		0
493050280KM		2.80	16.00	46.00	2.80	2					1863071		0
493050280KMX		2.80	16.00	46.00	2.80	2					1863072		0
493050290KM		2.90	16.00	46.00	2.90	2					1863084		0
493050290KMX		2.90	16.00	46.00	2.90	2					1863085		0
493050300KM		3.00	16.00	46.00	3.00	2					1863096		0
493050300KMX		3.00	16.00	46.00	3.00	2					1863097		0
493050310KM		3.10	18.00	49.00	3.10	2					1863116		0
493050310KMX		3.10	18.00	49.00	3.10	2					1863117		0
493050320KM		3.20	18.00	49.00	3.20	2					1863128		0
493050320KMX		3.20	18.00	49.00	3.20	2					1863129		0
493050330KM		3.30	18.00	49.00	3.30	2					1863139		0
493050330KMX		3.30	18.00	49.00	3.30	2					1863140		0
493050340KM		3.40	20.00	52.00	3.40	2					1863157		0
493050340KMX		3.40	20.00	52.00	3.40	2					1863158		0
493050350KM		3.50	20.00	52.00	3.50	2					1863168		0
493050350KMX		3.50	20.00	52.00	3.50	2					1863169		0
493050360KM		3.60	20.00	52.00	3.60	2					1863182		0
493050360KMX		3.60	20.00	52.00	3.60	2					1863183		0
493050370KM		3.70	20.00	52.00	3.70	2					1863192		0
493050370KMX		3.70	20.00	52.00	3.70	2					1863193		0
493050380KM		3.80	22.00	55.00	3.80	2					1863204		0
493050380KMX		3.80	22.00	55.00	3.80	2					1863205		0
493050390KM		3.90	22.00	55.00	3.90	2					1863214		0
493050390KMX		3.90	22.00	55.00	3.90	2					1863215		0
493050400KM		4.00	22.00	55.00	4.00	2					1863225		0
493050400KMX		4.00	22.00	55.00	4.00	2					1863226		0
493050410KM		4.10	22.00	55.00	4.10	2					1863241		0
493050410KMX		4.10	22.00	55.00	4.10	2					1863242		0
493050420KM		4.20	22.00	55.00	4.20	2					1863252		0
493050420KMX		4.20	22.00	55.00	4.20	2					1863253		0
493050430KM		4.30	24.00	58.00	4.30	2					1863268		0
493050430KMX		4.30	24.00	58.00	4.30	2					1863269		0
493050440KM		4.40	24.00	58.00	4.40	2					1863284		0
493050440KMX		4.40	24.00	58.00	4.40	2					1863285		0
493050450KM		4.50	24.00	58.00	4.50	2					1863294		0
493050450KMX		4.50	24.00	58.00	4.50	2					1863295		0
493050460KM		4.60	24.00	58.00	4.60	2					1863307		0
493050460KMX		4.60	24.00	58.00	4.60	2					1863308		0
493050470KM		4.70	24.00	58.00	4.70	2					1863319		0
493050470KMX		4.70	24.00	58.00	4.70	2					1863320		0
493050480KM		4.80	26.00	62.00	4.80	2					1863331		0
493050480KMX		4.80	26.00	62.00	4.80	2					1863332		0
493050490KM		4.90	26.00	62.00	4.90	2					1863341		0
493050490KMX		4.90	26.00	62.00	4.90	2					1863342		0
493050500KM		5.00	26.00	62.00	5.00	2					1863348		0
493050500KMX		5.00	26.00	62.00	5.00	2					1863349		0
493050510KM		5.10	26.00	62.00	5.10	2					1863367		0
493050510KMX		5.10	26.00	62.00	5.10	2					1863368		0
493050520KM		5.20	26.00	62.00	5.20	2					1863384		0
493050520KMX		5.20	26.00	62.00	5.20	2					1863385		0
493050530KM		5.30	26.00	62.00	5.30	2					1863401		0
493050530KMX		5.30	26.00	62.00	5.30	2					1863402		0
493050540KM		5.40	28.00	66.00	5.40	2					1863411		0
493050540KMX		5.40	28.00	66.00	5.40	2					1863412		0
493050550KM		5.50	28.00	66.00	5.50	2					1863421		0
493050550KMX		5.50	28.00	66.00	5.50	2					1863422		0
493050560KM		5.60	28.00	66.00	5.60	2					1863438		0
493050560KMX		5.60	28.00	66.00	5.60	2					1863439		0
493050570KM		5.70	28.00	66.00	5.70	2					1863450		0
493050570KMX		5.70	28.00	66.00	5.70	2					1863451		0
493050580KM		5.80	28.00	66.00	5.80	2					1863458		0
493050580KMX		5.80	28.00	66.00	5.80	2					1863459		0
493050590KM		5.90	28.00	66.00	5.90	2					1863470		0
493050590KMX		5.90	28.00	66.00	5.90	2					1863471		0
493050600KM		6.00	28.00	66.00	6.00	2					1863481		0
493050600KMX		6.00	28.00	66.00	6.00	2					1863482		0
493050610KM		6.10	31.00	70.00	6.10	2					1863499		0
493050610KMX		6.10	31.00	70.00	6.10	2					1863500		0
493050620KM		6.20	31.00	70.00	6.20	2					1863511		0
493050620KMX		6.20	31.00	70.00	6.20	2					1863512		0
493050630KM		6.30	31.00	70.00	6.30	2					1863524		0
493050630KMX		6.30	31.00	70.00	6.30	2					1863525		0
493050640KM		6.40	31.00	70.00	6.40	2					1863532		0
493050640KMX		6.40	31.00	70.00	6.40	2					1863533		0
493050650KM		6.50	31.00	70.00	6.50	2					1863542		0
493050650KMX		6.50	31.00	70.00	6.50	2					1863543		0
493050660KM		6.60	31.00	70.00	6.60	2					1863559		0
493050660KMX		6.60	31.00	70.00	6.60	2					1863560		0
493050670KM		6.70	31.00	70.00	6.70	2					1863568		0
493050670KMX		6.70	31.00	70.00	6.70	2					1863569		0
493050680KM		6.80	34.00	74.00	6.80	2					1863583		0
493050680KMX		6.80	34.00	74.00	6.80	2					1863584		0
493050690KM		6.90	34.00	74.00	6.90	2					1863600		0
493050690KMX		6.90	34.00	74.00	6.90	2					1863601		0
493050700KM		7.00	34.00	74.00	7.00	2					1863612		0
493050700KMX		7.00	34.00	74.00	7.00	2					1863613		0
493050710KM		7.10	34.00	74.00	7.10	2					1863629		0
493050710KMX		7.10	34.00	74.00	7.10	2					1863630		0
493050720KM		7.20	34.00	74.00	7.20	2					1863639		0
493050720KMX		7.20	34.00	74.00	7.20	2					1863640		0
493050730KM		7.30	34.00	74.00	7.30	2					1863648		0
493050730KMX		7.30	34.00	74.00	7.30	2					1863649		0
493050740KM		7.40	34.00	74.00	7.40	2					1863657		0
493050740KMX		7.40	34.00	74.00	7.40	2					1863658		0
493050750KM		7.50	34.00	74.00	7.50	2					1863669		0
493050750KMX		7.50	34.00	74.00	7.50	2					1863670		0
493050760KM		7.60	37.00	79.00	7.60	2					1863680		0
493050760KMX		7.60	37.00	79.00	7.60	2					1863681		0
493050770KM		7.70	37.00	79.00	7.70	2					1863688		0
493050770KMX		7.70	37.00	79.00	7.70	2					1863689		0
493050780KM		7.80	37.00	79.00	7.80	2					1863696		0
493050780KMX		7.80	37.00	79.00	7.80	2					1863697		0
493050790KM		7.90	37.00	79.00	7.90	2					1863710		0
493050790KMX		7.90	37.00	79.00	7.90	2					1863711		0
493050800KM		8.00	41.00	79.00	8.00	2					1863721		0
493050800KMX		8.00	41.00	79.00	8.00	2					1863722		0
493050810KM		8.10	47.00	79.00	8.10	2					1863737		0
493050810KMX		8.10	47.00	79.00	8.10	2					1863738		0
493050820KM		8.20	47.00	79.00	8.20	2					1863746		0
493050820KMX		8.20	47.00	79.00	8.20	2					1863747		0
493050830KM		8.30	47.00	79.00	8.30	2					1863761		0
493050830KMX		8.30	47.00	79.00	8.30	2					1863762		0
493050840KM		8.40	47.00	79.00	8.40	2					1863773		0
493050840KMX		8.40	47.00	79.00	8.40	2					1863774		0
493050850KM		8.50	47.00	79.00	8.50	2					1863787		0
493050850KMX		8.50	47.00	79.00	8.50	2					1863788		0
493050860KM		8.60	47.00	84.00	8.60	2					1863806		0
493050860KMX		8.60	47.00	84.00	8.60	2					1863807		0
493050870KM		8.70	47.00	84.00	8.70	2					1863816		0
493050870KMX		8.70	47.00	84.00	8.70	2					1863817		0
493050880KM		8.80	47.00	84.00	8.80	2					1863827		0
493050880KMX		8.80	47.00	84.00	8.80	2					1863828		0
493050890KM		8.90	47.00	84.00	8.90	2					1863842		0
493050890KMX		8.90	47.00	84.00	8.90	2					1863843		0
493050900KM		9.00	47.00	84.00	9.00	2					1863850		0
493050900KMX		9.00	47.00	84.00	9.00	2					1863851		0
493050910KM		9.10	47.00	84.00	9.10	2					1863869		0
493050910KMX		9.10	47.00	84.00	9.10	2					1863870		0
493050920KM		9.20	47.00	84.00	9.20	2					1863878		0
493050920KMX		9.20	47.00	84.00	9.20	2					1863879		0
493050930KM		9.30	47.00	84.00	9.30	2					1863886		0
493050930KMX		9.30	47.00	84.00	9.30	2					1863887		0
493050940KM		9.40	47.00	84.00	9.40	2					1863894		0
493050940KMX		9.40	47.00	84.00	9.40	2					1863895		0
493050950KM		9.50	47.00	84.00	9.50	2					1863903		0
493050950KMX		9.50	47.00	84.00	9.50	2					1863904		0
493050960KM		9.60	47.00	89.00	9.60	2					1863916		0
493050960KMX		9.60	47.00	89.00	9.60	2					1863917		0
493050970KM		9.70	47.00	89.00	9.70	2					1863923		0
493050970KMX		9.70	47.00	89.00	9.70	2					1863924		0
493050980KM		9.80	47.00	89.00	9.80	2					1863935		0
493050980KMX		9.80	47.00	89.00	9.80	2					1863936		0
493050990KM		9.90	47.00	89.00	9.90	2					1863947		0
493050990KMX		9.90	47.00	89.00	9.90	2					1863948		0
493051000KM		10.00	47.00	89.00	10.00	2					1863956		0
493051000KMX		10.00	47.00	89.00	10.00	2					1863957		0
493051010KM		10.10	47.00	89.00	10.10	2					1863971		0
493051010KMX		10.10	47.00	89.00	10.10	2					1863972		0
493051020KM		10.20	47.00	89.00	10.20	2					1863982		0
493051020KMX		10.20	47.00	89.00	10.20	2					1863983		0
493051030KM		10.30	47.00	89.00	10.30	2					1863995		0
493051030KMX		10.30	47.00	89.00	10.30	2					1863996		0
493051040KM		10.40	47.00	89.00	10.40	2					1864010		0
493051040KMX		10.40	47.00	89.00	10.40	2					1864011		0
493051050KM		10.50	47.00	89.00	10.50	2					1864018		0
493051050KMX		10.50	47.00	89.00	10.50	2					1864019		0
493051060KM		10.60	47.00	89.00	10.60	2					1864036		0
493051060KMX		10.60	47.00	89.00	10.60	2					1864037		0
493051070KM		10.70	47.00	95.00	10.70	2					1864043		0
493051070KMX		10.70	47.00	95.00	10.70	2					1864044		0
493051080KM		10.80	47.00	95.00	10.80	2					1864052		0
493051080KMX		10.80	47.00	95.00	10.80	2					1864053		0
493051090KM		10.90	47.00	95.00	10.90	2					1864063		0
493051090KMX		10.90	47.00	95.00	10.90	2					1864064		0
493051100KM		11.00	47.00	95.00	11.00	2					1864071		0
493051100KMX		11.00	47.00	95.00	11.00	2					1864072		0
493051110KM		11.10	47.00	95.00	11.10	2					1864087		0
493051110KMX		11.10	47.00	95.00	11.10	2					1864088		0
493051120KM		11.20	47.00	95.00	11.20	2					1864094		0
493051120KMX		11.20	47.00	95.00	11.20	2					1864095		0
493051130KM		11.30	47.00	95.00	11.30	2					1864102		0
493051130KMX		11.30	47.00	95.00	11.30	2					1864103		0
493051140KM		11.40	47.00	95.00	11.40	2					1864109		0
493051140KMX		11.40	47.00	95.00	11.40	2					1864110		0
493051150KM		11.50	47.00	95.00	11.50	2					1864116		0
493051150KMX		11.50	47.00	95.00	11.50	2					1864117		0
493051160KM		11.60	47.00	95.00	11.60	2					1864127		0
493051160KMX		11.60	47.00	95.00	11.60	2					1864128		0
493051170KM		11.70	47.00	95.00	11.70	2					1864135		0
493051170KMX		11.70	47.00	95.00	11.70	2					1864136		0
493051180KM		11.80	47.00	95.00	11.80	2					1864145		0
493051180KMX		11.80	47.00	95.00	11.80	2					1864146		0
493051190KM		11.90	47.00	95.00	11.90	2					1864155		0
493051190KMX		11.90	47.00	95.00	11.90	2					1864156		0
493051200KM		12.00	55.00	102.00	12.00	2					1864162		0
493051200KMX		12.00	55.00	102.00	12.00	2					1864163		0
493051250KM		12.50	55.00	102.00	12.50	2					1864180		0
493051250KMX		12.50	55.00	102.00	12.50	2					1864181		0
493051300KM		13.00	55.00	102.00	13.00	2					1864195		0
493051300KMX		13.00	55.00	102.00	13.00	2					1864196		0
493051350KM		13.50	55.00	107.00	13.50	2					1864211		0
493051350KMX		13.50	55.00	107.00	13.50	2					1864212		0
493051400KM		14.00	60.00	107.00	14.00	2					1864220		0
493051400KMX		14.00	60.00	107.00	14.00	2					1864221		0
493051450KM		14.50	60.00	111.00	14.50	2					1864236		0
493051450KMX		14.50	60.00	111.00	14.50	2					1864237		0
493051500KM		15.00	60.00	111.00	15.00	2					1864247		0
493051500KMX		15.00	60.00	111.00	15.00	2					1864248		0
493051550KM		15.50	60.00	115.00	15.50	2					1864260		0
493051550KMX		15.50	60.00	115.00	15.50	2					1864261		0
493051600KM		16.00	65.00	115.00	16.00	2					1864268		0
493051600KMX		16.00	65.00	115.00	16.00	2					1864269		0

Click here for the Cutting Parameters for this family

Site Map

Milling Hole Making Reaming

Any use of the UOP e-catalogue and any transactions which may be performed as a result of using this program are subject to UOP’s General Terms of Sale
Privacy Policy Cookie Policy
© 2026 UOP S.p.A. Manufacturer of Metalworking Tools (UOP.it) All Rights Reserved
