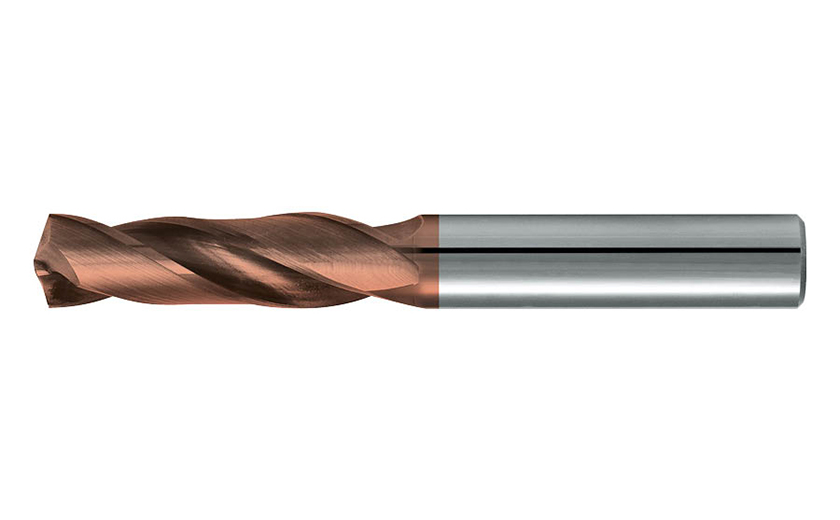

49310 : "TS" two flute drills

EVO DRILL

LAMBDA 30

DIN 6535HE ON REQUEST

HEAD ANGLE 140

UNI DIN 6537 ISO

NORMAL

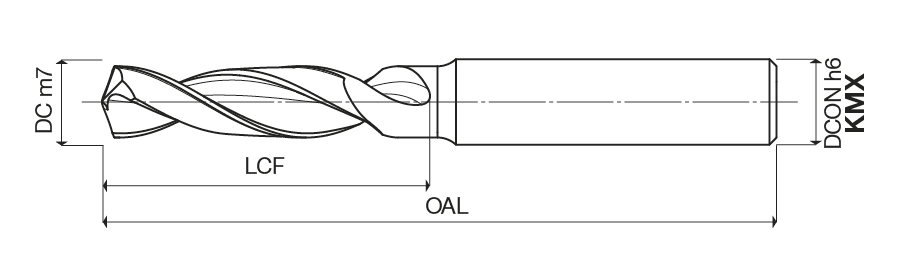

Designation	GICODE	DC	APMX	OAL	DCONMS	NOF					GICAT	GIREM	giic
493100300KM		3.00	20.00	62.00	6.00	2					1864280		0
493100300KMX		3.00	20.00	62.00	6.00	2					1864281		0
493100320KM		3.20	20.00	62.00	6.00	2					1864287		0
493100320KMX		3.20	20.00	62.00	6.00	2					1864288		0
493100330KM		3.30	20.00	62.00	6.00	2					1864294		0
493100330KMX		3.30	20.00	62.00	6.00	2					1864295		0
493100350KM		3.50	20.00	62.00	6.00	2					1864300		0
493100350KMX		3.50	20.00	62.00	6.00	2					1864301		0
493100400KM		4.00	24.00	66.00	6.00	2					1864309		0
493100400KMX		4.00	24.00	66.00	6.00	2					1864310		0
493100450KM		4.50	24.00	66.00	6.00	2					1864317		0
493100450KMX		4.50	24.00	66.00	6.00	2					1864318		0
493100500KM		5.00	28.00	66.00	6.00	2					1864323		0
493100500KMX		5.00	28.00	66.00	6.00	2					1864324		0
493100550KM		5.50	28.00	66.00	6.00	2					1864329		0
493100550KMX		5.50	28.00	66.00	6.00	2					1864330		0
493100600KM		6.00	28.00	66.00	6.00	2					1864336		0
493100600KMX		6.00	28.00	66.00	6.00	2					1864337		0
493100650KM		6.50	34.00	79.00	8.00	2					1864342		0
493100650KMX		6.50	34.00	79.00	8.00	2					1864343		0
493100670KM		6.70	34.00	79.00	8.00	2					1864352		0
493100670KMX		6.70	34.00	79.00	8.00	2					1864353		0
493100680KM		6.80	34.00	79.00	8.00	2					1864357		0
493100680KMX		6.80	34.00	79.00	8.00	2					1864358		0
493100700KM		7.00	34.00	79.00	8.00	2					1864364		0
493100700KMX		7.00	34.00	79.00	8.00	2					1864365		0
493100750KM		7.50	41.00	79.00	8.00	2					1864370		0
493100750KMX		7.50	41.00	79.00	8.00	2					1864371		0
493100800KM		8.00	41.00	79.00	8.00	2					1864377		0
493100800KMX		8.00	41.00	79.00	8.00	2					1864378		0
493100850KM		8.50	47.00	89.00	10.00	2					1864383		0
493100850KMX		8.50	47.00	89.00	10.00	2					1864384		0
493100900KM		9.00	47.00	89.00	10.00	2					1864394		0
493100900KMX		9.00	47.00	89.00	10.00	2					1864395		0
493100950KM		9.50	47.00	89.00	10.00	2					1864404		0
493100950KMX		9.50	47.00	89.00	10.00	2					1864405		0
493101000KM		10.00	47.00	89.00	10.00	2					1864410		0
493101000KMX		10.00	47.00	89.00	10.00	2					1864411		0
493101020KM		10.20	55.00	102.00	12.00	2					1864417		0
493101020KMX		10.20	55.00	102.00	12.00	2					1864418		0
493101050KM		10.50	55.00	102.00	12.00	2					1864423		0
493101050KMX		10.50	55.00	102.00	12.00	2					1864424		0
493101080KM		10.80	55.00	102.00	12.00	2					1864434		0
493101080KMX		10.80	55.00	102.00	12.00	2					1864435		0
493101100KM		11.00	55.00	102.00	12.00	2					1864440		0
493101100KMX		11.00	55.00	102.00	12.00	2					1864441		0
493101150KM		11.50	55.00	102.00	12.00	2					1864447		0
493101150KMX		11.50	55.00	102.00	12.00	2					1864448		0
493101180KM		11.80	55.00	102.00	12.00	2					1864452		0
493101180KMX		11.80	55.00	102.00	12.00	2					1864453		0
493101200KM		12.00	55.00	102.00	12.00	2					1864457		0
493101200KMX		12.00	55.00	102.00	12.00	2					1864458		0
493101250KM		12.50	60.00	107.00	14.00	2					1864462		0
493101250KMX		12.50	60.00	107.00	14.00	2					1864463		0
493101300KM		13.00	60.00	107.00	14.00	2					1864467		0
493101300KMX		13.00	60.00	107.00	14.00	2					1864468		0
493101350KM		13.50	60.00	107.00	14.00	2					1864473		0
493101350KMX		13.50	60.00	107.00	14.00	2					1864474		0
493101400KM		14.00	60.00	107.00	14.00	2					1864478		0
493101400KMX		14.00	60.00	107.00	14.00	2					1864479		0
493101500KM		15.00	65.00	115.00	16.00	2					1864491		0
493101500KMX		15.00	65.00	115.00	16.00	2					1864492		0
493101550KM		15.50	65.00	115.00	16.00	2					1864496		0
493101550KMX	Y	15.50	65.00	115.00	16.00	2					1864497		0
493101600KM		16.00	65.00	115.00	16.00	2					1864501		0
493101600KMX		16.00	65.00	115.00	16.00	2					1864502		0
493101650KM		16.50	73.00	123.00	18.00	2					1864507		0
493101650KMX		16.50	73.00	123.00	18.00	2					1864508		0
493101700KM		17.00	73.00	123.00	18.00	2					1864515		0
493101700KMX		17.00	73.00	123.00	18.00	2					1864516		0
493101800KM		18.00	73.00	123.00	18.00	2					1864523		0
493101800KMX		18.00	73.00	123.00	18.00	2					1864524		0
493101850KM		18.50	79.00	131.00	20.00	2					1864529		0
493101850KMX		18.50	79.00	131.00	20.00	2					1864530		0
493101900KM		19.00	79.00	131.00	20.00	2					1864534		0
493101900KMX		19.00	79.00	131.00	20.00	2					1864535		0
493101950KM		19.50	79.00	131.00	20.00	2					1864540		0
493101950KMX		19.50	79.00	131.00	20.00	2					1864541		0
493102000KM		20.00	79.00	131.00	20.00	2					1864545		0
493102000KMX		20.00	79.00	131.00	20.00	2					1864546		0

Click here for the Cutting Parameters for this family
