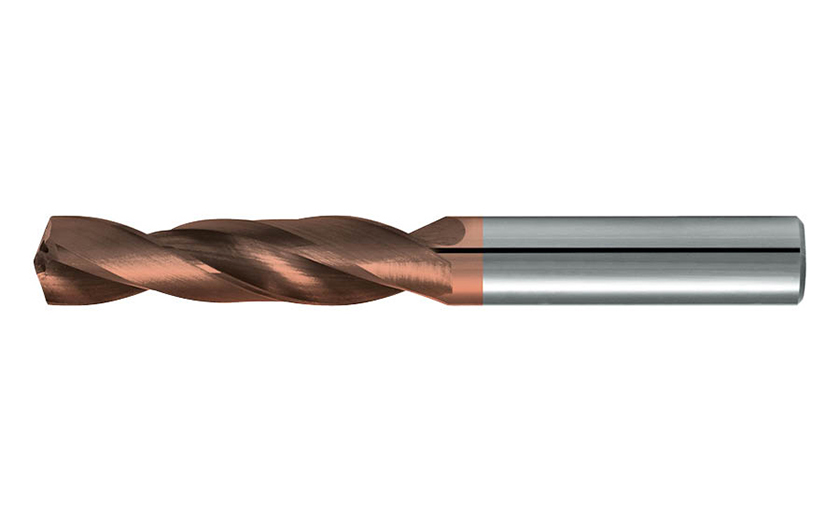

49505 : "HP" two flute twist drills with internal coolant

Designation	GICODE	DC	APMX	OAL	DCONMS	NOF	GICAT	giic	Grade
495050500KMX		5.00	28.00	66.00	6.00	2	1864552	1	EVO
495050550KMX		5.50	28.00	66.00	6.00	2	1864565	1	EVO
495050600KMX		6.00	28.00	66.00	6.00	2	1864575	1	EVO
495050650KMX		6.50	34.00	79.00	8.00	2	1864585	1	EVO
495050670KMX		6.70	34.00	79.00	8.00	2	1864598	1	EVO
495050680KMX		6.80	34.00	79.00	8.00	2	1864604	1	EVO
495050700KMX		7.00	34.00	79.00	8.00	2	1864618	1	EVO
495050750KMX		7.50	41.00	79.00	8.00	2	1864630	1	EVO
495050780KMX		7.80	41.00	79.00	8.00	2	1864638	1	EVO
495050800KMX		8.00	41.00	79.00	8.00	2	1864645	1	EVO
495050850KMX		8.50	47.00	89.00	10.00	2	1864659	1	EVO
495050880KMX		8.80	47.00	89.00	10.00	2	1864678	1	EVO
495050900KMX		9.00	47.00	89.00	10.00	2	1864690	1	EVO
495050950KMX		9.50	47.00	89.00	10.00	2	1864702	1	EVO
495050980KMX		9.80	47.00	89.00	10.00	2	1864709	1	EVO
495051000KMX		10.00	47.00	89.00	10.00	2	1864715	1	EVO
495051020KMX		10.20	55.00	102.00	12.00	2	1864722	1	EVO
495051050KMX		10.50	55.00	102.00	12.00	2	1864734	1	EVO
495051080KMX		10.80	55.00	102.00	12.00	2	1864744	1	EVO
495051100KMX		11.00	55.00	102.00	12.00	2	1864751	1	EVO
495051150KMX		11.50	55.00	102.00	12.00	2	1864767	1	EVO
495051180KMX		11.80	55.00	102.00	12.00	2	1864775	1	EVO
495051200KMX		12.00	55.00	102.00	12.00	2	1864783	1	EVO
495051250KMX		12.50	60.00	107.00	14.00	2	1864793	1	EVO
495051300KMX		13.00	60.00	107.00	14.00	2	1864803	1	EVO
495051350KMX		13.50	60.00	107.00	14.00	2	1864812	1	EVO
495051400KMX		14.00	60.00	107.00	14.00	2	1864820	1	EVO
495051450KMX	Y	14.50	65.00	115.00	16.00	2	1864830	1	EVO
495051500KMX		15.00	65.00	115.00	16.00	2	1864838	1	EVO
495051550KMX		15.50	65.00	115.00	16.00	2	1864848	1	EVO
495051600KMX	Y	16.00	65.00	115.00	16.00	2	1864854	1	EVO
495051650KMX		16.50	73.00	123.00	18.00	2	1864860	1	EVO
495051700KMX		17.00	73.00	123.00	18.00	2	1864865	1	EVO
495051750KMX		17.50	73.00	123.00	18.00	2	1864872	1	EVO
495051800KMX		18.00	73.00	123.00	18.00	2	1864880	1	EVO
495051850KMX		18.50	79.00	131.00	20.00	2	1864885	1	EVO
495051900KMX		19.00	79.00	131.00	20.00	2	1864890	1	EVO
495052000KMX		20.00	79.00	131.00	20.00	2	1864895	1	EVO
