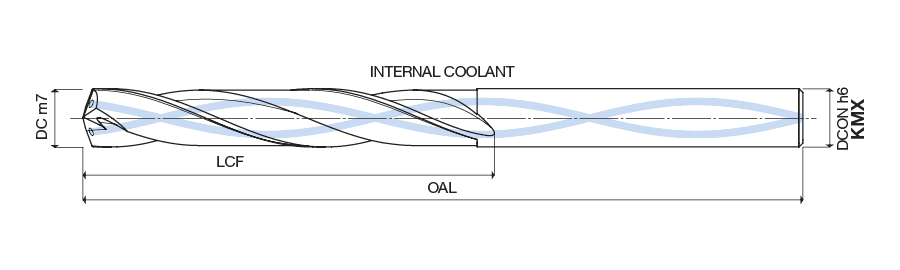

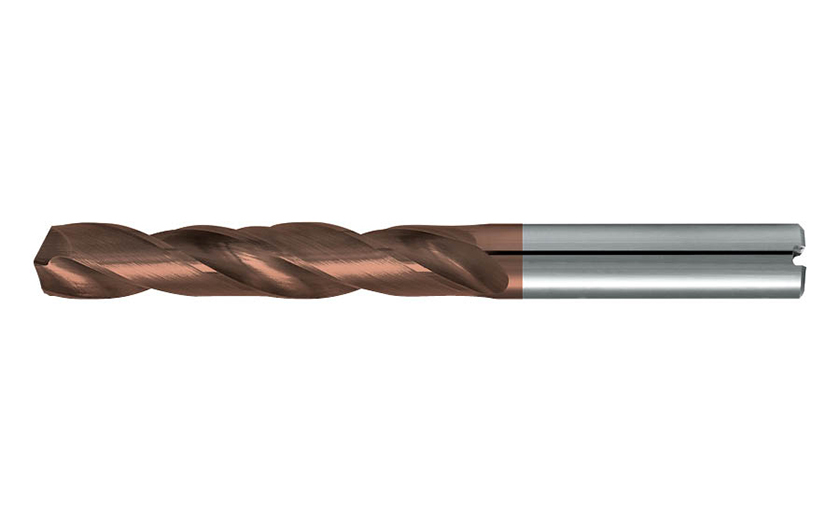

49510 : "HP" two flute twist drills with internal coolant

Designation	DC	APMX	OAL	DCONMS	NOF	GICAT	giic	Grade
495100500KMX	5.00	44.00	82.00	6.00	2	1864902	1	EVO
495100600KMX	6.00	44.00	82.00	6.00	2	1864919	1	EVO
495100650KMX	6.50	53.00	91.00	8.00	2	1864930	1	EVO
495100670KMX	6.70	53.00	91.00	8.00	2	1864948	1	EVO
495100680KMX	6.80	53.00	91.00	8.00	2	1864955	1	EVO
495100700KMX	7.00	53.00	91.00	8.00	2	1864971	1	EVO
495100750KMX	7.50	53.00	91.00	8.00	2	1864983	1	EVO
495100780KMX	7.80	53.00	91.00	8.00	2	1864991	1	EVO
495100800KMX	8.00	53.00	91.00	8.00	2	1865001	1	EVO
495100850KMX	8.50	61.00	103.00	10.00	2	1865010	1	EVO
495100880KMX	8.80	61.00	103.00	10.00	2	1865030	1	EVO
495100900KMX	9.00	61.00	103.00	10.00	2	1865040	1	EVO
495100950KMX	9.50	61.00	103.00	10.00	2	1865051	1	EVO
495100980KMX	9.80	61.00	103.00	10.00	2	1865060	1	EVO
495101000KMX	10.00	61.00	103.00	10.00	2	1865072	1	EVO
495101020KMX	10.20	71.00	118.00	12.00	2	1865083	1	EVO
495101050KMX	10.50	71.00	118.00	12.00	2	1865092	1	EVO
495101080KMX	10.80	71.00	118.00	12.00	2	1865111	1	EVO
495101100KMX	11.00	71.00	118.00	12.00	2	1865121	1	EVO
495101150KMX	11.50	71.00	118.00	12.00	2	1865135	1	EVO
495101180KMX	11.80	71.00	118.00	12.00	2	1865143	1	EVO
495101200KMX	12.00	71.00	118.00	12.00	2	1865154	1	EVO
495101250KMX	12.50	77.00	124.00	14.00	2	1865167	1	EVO
495101300KMX	13.00	77.00	124.00	14.00	2	1865178	1	EVO
495101350KMX	13.50	77.00	124.00	14.00	2	1865190	1	EVO
495101400KMX	14.00	77.00	124.00	14.00	2	1865198	1	EVO
495101450KMX	14.50	83.00	133.00	16.00	2	1865210	1	EVO
495101500KMX	15.00	83.00	133.00	16.00	2	1865218	1	EVO
495101550KMX	15.50	83.00	133.00	16.00	2	1865228	1	EVO
495101600KMX	16.00	83.00	133.00	16.00	2	1865237	1	EVO
495101650KMX	16.50	93.00	143.00	18.00	2	1865247	1	EVO
495101700KMX	17.00	93.00	143.00	18.00	2	1865256	1	EVO
495101750KMX	17.50	93.00	143.00	18.00	2	1865265	1	EVO
495101800KMX	18.00	93.00	143.00	18.00	2	1865273	1	EVO
495101900KMX	19.00	101.00	153.00	20.00	2	1865280	1	EVO
495102000KMX	20.00	101.00	153.00	20.00	2	1865288	1	EVO
