UOP Cutting Tools - Metal Working Tools - Hole Making -

Cutting Parameters
for this family

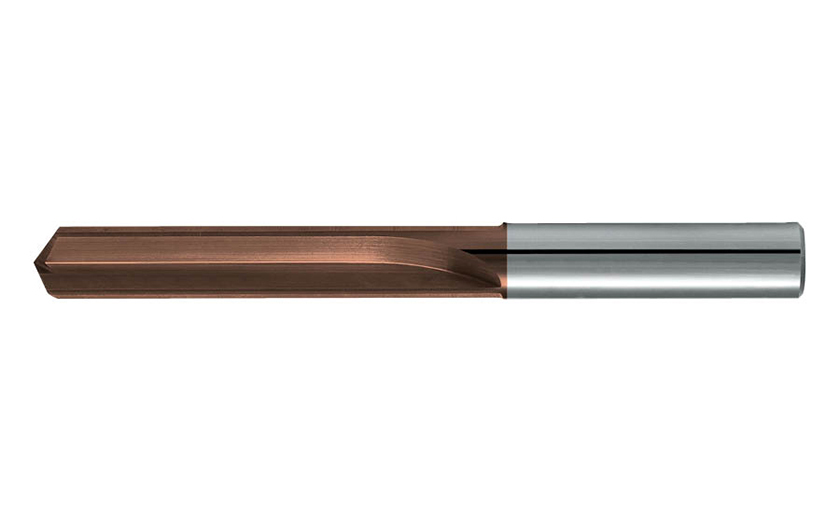

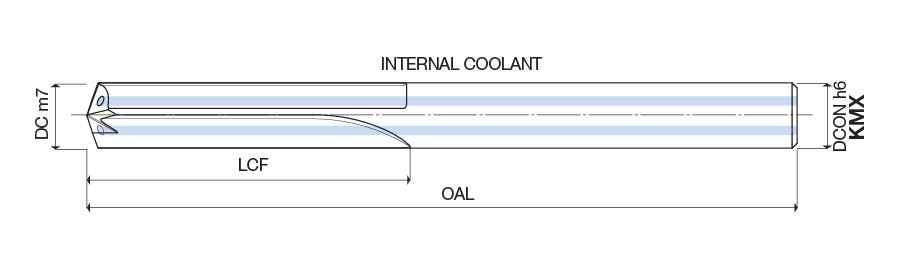

49610 : Double margin. straight flute drills, with internal coolant

Designation	GICODE	DC	APMX	OAL	DCONMS	NOF	GICAT	giic	Grade
496100500KMX		5.00	44.00	82.00	6.00	2	1865296	1	EVO
496100600KMX		6.00	44.00	82.00	6.00	2	1865302	1	EVO
496100650KMX		6.50	53.00	91.00	8.00	2	1865308	1	EVO
496100670KMX		6.70	53.00	91.00	8.00	2	1865314	1	EVO
496100680KMX		6.80	53.00	91.00	8.00	2	1865317	1	EVO
496100700KMX		7.00	53.00	91.00	8.00	2	1865322	1	EVO
496100750KMX		7.50	53.00	91.00	8.00	2	1865325	1	EVO
496100780KMX		7.80	53.00	91.00	8.00	2	1865329	1	EVO
496100800KMX		8.00	53.00	91.00	8.00	2	1865333	1	EVO
496100850KMX		8.50	61.00	103.00	10.00	2	1865340	1	EVO
496100880KMX		8.80	61.00	103.00	10.00	2	1865346	1	EVO
496100900KMX		9.00	61.00	103.00	10.00	2	1865350	1	EVO
496100950KMX		9.50	61.00	103.00	10.00	2	1865356	1	EVO
496100980KMX		9.80	61.00	103.00	10.00	2	1865360	1	EVO
496101000KMX		10.00	61.00	103.00	10.00	2	1865365	1	EVO
496101020KMX	Y	10.20	71.00	118.00	12.00	2	1865371	1	EVO
496101050KMX		10.50	71.00	118.00	12.00	2	1865374	1	EVO
496101080KMX		10.80	71.00	118.00	12.00	2	1865384	1	EVO
496101100KMX		11.00	71.00	118.00	12.00	2	1865389	1	EVO
496101150KMX		11.50	71.00	118.00	12.00	2	1865394	1	EVO
496101180KMX		11.80	71.00	118.00	12.00	2	1865399	1	EVO
496101200KMX		12.00	71.00	118.00	12.00	2	1865402	1	EVO
496101250KMX		12.50	77.00	124.00	14.00	2	1865406	1	EVO
496101300KMX		13.00	77.00	124.00	14.00	2	1865411	1	EVO
496101350KMX		13.50	77.00	124.00	14.00	2	1865414	1	EVO
496101400KMX		14.00	77.00	124.00	14.00	2	1865417	1	EVO
496101450KMX		14.50	83.00	133.00	16.00	2	1865420	1	EVO
496101500KMX		15.00	83.00	133.00	16.00	2	1865423	1	EVO
496101550KMX		15.50	83.00	133.00	16.00	2	1865427	1	EVO
496101600KMX		16.00	83.00	133.00	16.00	2	1865431	1	EVO
496101650KMX		16.50	93.00	143.00	18.00	2	1865435	1	EVO
496101700KMX		17.00	93.00	143.00	18.00	2	1865438	1	EVO
496101750KMX		17.50	93.00	143.00	18.00	2	1865443	1	EVO
496101800KMX		18.00	93.00	143.00	18.00	2	1865447	1	EVO
496101900KMX		19.00	101.00	153.00	20.00	2	1865450	1	EVO
496102000KMX		20.00	101.00	153.00	20.00	2	1865453	1	EVO
