Hole Making
Main Application

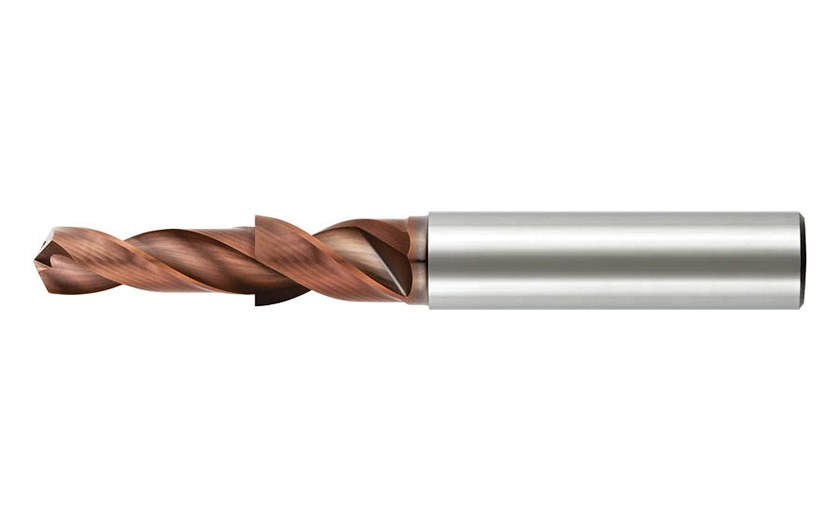

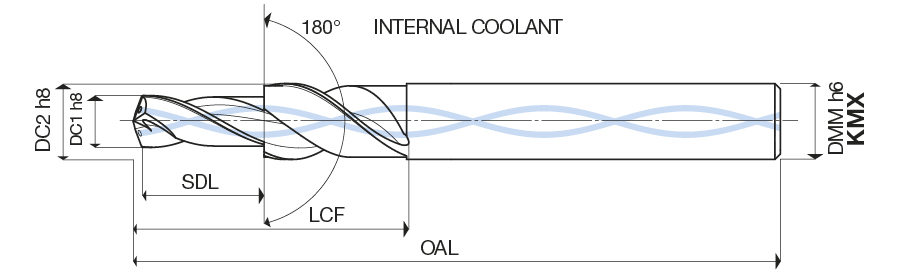

49910 : Step drills 180¢ with internal coolant


 EVO DRILL  FINISHING CUTTING EDGE PROFILE H  HEAD ANGLE 120  DIN 6535HE ON REQUEST  QUALITY STANDARD UOP  NORMAL
  DesignationGICODESCREWDCD1 h8LUAPMXOALDCONMSNOFGICATGIREMgiicGrade
  499101002KM  M10 18.0011.052.0026.00110.0018.0021865929 0
  499101002KMX  M10 18.0011.052.0026.00110.0018.0021865930 1EVO
  499100302KM  M3 6.003.428.009.0066.006.0021865888 0
  499100302KMX  M3 6.003.428.009.0066.006.0021865889 1EVO
  499100402KM  M4 8.004.537.0011.0079.008.0021865893 0
  499100402KMX  M4 8.004.537.0011.0079.008.0021865894 1EVO
  499100502KM  M5 10.005.543.0013.0083.0010.0021865899 0
  499100502KMX  M5 10.005.543.0013.0083.0010.0021865900 1EVO
  499100602KM  M6 11.006.647.0015.0095.0012.0021865908 0
  499100602KMX  M6 11.006.647.0015.0095.0012.0021865909 1EVO
  499100802KM  M8 15.009.052.0021.00110.0016.0021865919 0
  499100802KMX  M8 15.009.052.0021.00110.0016.0021865920 1EVO
Click here for the Cutting Parameters for this family
