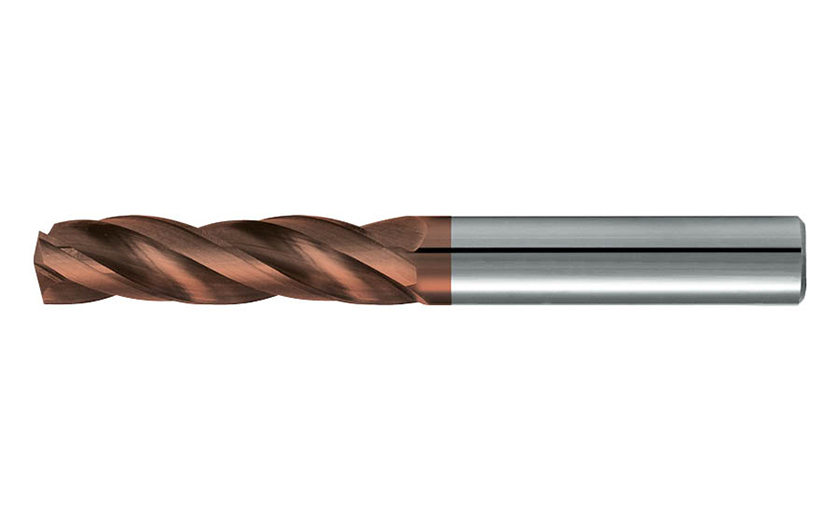

50105 : Three flutes twist drill

EVO DRILL

LAMBDA 30

TANG ON REQUEST

HEAD ANGLE 150

QUALITY STANDARD UOP

NORMAL

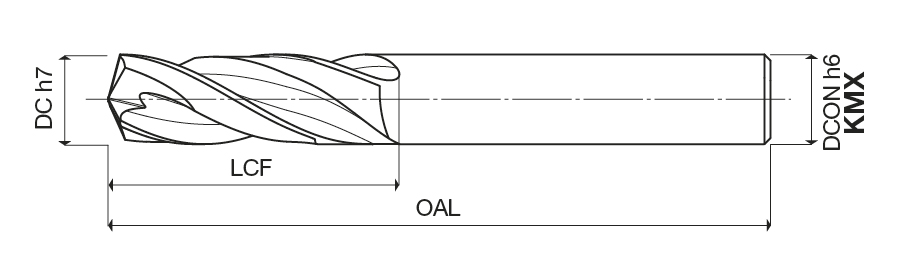

Designation	GICODE	DC	APMX	OAL	DCONMS	NOF	GICAT	GIREM	giic	Grade
501050200KM		2.00	12.00	38.00	2.00	3	1865939		0
501050200KMX		2.00	12.00	38.00	2.00	3	1865940		1	EVO
501050210KM		2.10	12.00	38.00	2.10	3	1865949		0
501050210KMX		2.10	12.00	38.00	2.10	3	1865950		1	EVO
501050220KM		2.20	13.00	40.00	2.20	3	1865955		0
501050220KMX		2.20	13.00	40.00	2.20	3	1865956		1	EVO
501050230KM		2.30	13.00	40.00	2.30	3	1865960		0
501050230KMX		2.30	13.00	40.00	2.30	3	1865961		1	EVO
501050240KM		2.40	14.00	43.00	2.40	3	1865965		0
501050240KMX		2.40	14.00	43.00	2.40	3	1865966		1	EVO
501050250KM		2.50	14.00	43.00	2.50	3	1865970		0
501050250KMX		2.50	14.00	43.00	2.50	3	1865971		1	EVO
501050260KM		2.60	14.00	43.00	2.60	3	1865978		0
501050260KMX		2.60	14.00	43.00	2.60	3	1865979		1	EVO
501050270KM		2.70	16.00	46.00	2.70	3	1865984		0
501050270KMX		2.70	16.00	46.00	2.70	3	1865985		1	EVO
501050280KM		2.80	16.00	46.00	2.80	3	1865991		0
501050280KMX		2.80	16.00	46.00	2.80	3	1865992		1	EVO
501050290KM		2.90	16.00	46.00	2.90	3	1865996		0
501050290KMX		2.90	16.00	46.00	2.90	3	1865997		1	EVO
501050300KM		3.00	16.00	46.00	3.00	3	1866003		0
501050300KMX		3.00	16.00	46.00	3.00	3	1866004		1	EVO
501050310KM		3.10	18.00	49.00	3.10	3	1866015		0
501050310KMX		3.10	18.00	49.00	3.10	3	1866016		1	EVO
501050320KM		3.20	18.00	49.00	3.20	3	1866021		0
501050320KMX		3.20	18.00	49.00	3.20	3	1866022		1	EVO
501050330KM		3.30	18.00	49.00	3.30	3	1866029		0
501050330KMX		3.30	18.00	49.00	3.30	3	1866030		1	EVO
501050340KM		3.40	20.00	52.00	3.40	3	1866037		0
501050340KMX		3.40	20.00	52.00	3.40	3	1866038		1	EVO
501050350KM		3.50	20.00	52.00	3.50	3	1866043		0
501050350KMX		3.50	20.00	52.00	3.50	3	1866044		1	EVO
501050360KM		3.60	20.00	52.00	3.60	3	1866053		0
501050360KMX		3.60	20.00	52.00	3.60	3	1866054		1	EVO
501050370KM		3.70	20.00	52.00	3.70	3	1866058		0
501050370KMX		3.70	20.00	52.00	3.70	3	1866059		1	EVO
501050380KM		3.80	22.00	55.00	3.80	3	1866066		0
501050380KMX		3.80	22.00	55.00	3.80	3	1866067		1	EVO
501050390KM		3.90	22.00	55.00	3.90	3	1866075		0
501050390KMX		3.90	22.00	55.00	3.90	3	1866076		1	EVO
501050400KM		4.00	22.00	55.00	4.00	3	1866081		0
501050400KMX		4.00	22.00	55.00	4.00	3	1866082		1	EVO
501050410KM		4.10	22.00	55.00	4.10	3	1866091		0
501050410KMX		4.10	22.00	55.00	4.10	3	1866092		1	EVO
501050420KM		4.20	22.00	55.00	4.20	3	1866096		0
501050420KMX		4.20	22.00	55.00	4.20	3	1866097		1	EVO
501050430KM		4.30	24.00	58.00	4.30	3	1866105		0
501050430KMX		4.30	24.00	58.00	4.30	3	1866106		1	EVO
501050440KM		4.40	24.00	58.00	4.40	3	1866113		0
501050440KMX		4.40	24.00	58.00	4.40	3	1866114		1	EVO
501050450KM		4.50	24.00	58.00	4.50	3	1866119		0
501050450KMX		4.50	24.00	58.00	4.50	3	1866120		1	EVO
501050460KM		4.60	24.00	58.00	4.60	3	1866127		0
501050460KMX		4.60	24.00	58.00	4.60	3	1866128		1	EVO
501050470KM		4.70	24.00	58.00	4.70	3	1866134		0
501050470KMX		4.70	24.00	58.00	4.70	3	1866135		1	EVO
501050480KM		4.80	26.00	62.00	4.80	3	1866142		0
501050480KMX		4.80	26.00	62.00	4.80	3	1866143		1	EVO
501050490KM		4.90	26.00	62.00	4.90	3	1866149		0
501050490KMX		4.90	26.00	62.00	4.90	3	1866150		1	EVO
501050500KM		5.00	26.00	62.00	5.00	3	1866155		0
501050500KMX		5.00	26.00	62.00	5.00	3	1866156		1	EVO
501050510KM		5.10	26.00	62.00	5.10	3	1866167		0
501050510KMX		5.10	26.00	62.00	5.10	3	1866168		1	EVO
501050520KM		5.20	26.00	62.00	5.20	3	1866176		0
501050520KMX		5.20	26.00	62.00	5.20	3	1866177		1	EVO
501050530KM		5.30	26.00	62.00	5.30	3	1866183		0
501050530KMX		5.30	26.00	62.00	5.30	3	1866184		1	EVO
501050540KM		5.40	28.00	66.00	5.40	3	1866190		0
501050540KMX		5.40	28.00	66.00	5.40	3	1866191		1	EVO
501050550KM		5.50	28.00	66.00	5.50	3	1866195		0
501050550KMX		5.50	28.00	66.00	5.50	3	1866196		1	EVO
501050560KM		5.60	28.00	66.00	5.60	3	1866205		0
501050560KMX		5.60	28.00	66.00	5.60	3	1866206		1	EVO
501050570KM		5.70	28.00	66.00	5.70	3	1866210		0
501050570KMX		5.70	28.00	66.00	5.70	3	1866211		1	EVO
501050580KM		5.80	28.00	66.00	5.80	3	1866219		0
501050580KMX		5.80	28.00	66.00	5.80	3	1866220		1	EVO
501050590KM		5.90	28.00	66.00	5.90	3	1866227		0
501050590KMX		5.90	28.00	66.00	5.90	3	1866228		1	EVO
501050600KM		6.00	28.00	66.00	6.00	3	1866233		0
501050600KMX		6.00	28.00	66.00	6.00	3	1866234		1	EVO
501050610KM		6.10	31.00	70.00	6.10	3	1866244		0
501050610KMX		6.10	31.00	70.00	6.10	3	1866245		1	EVO
501050620KM		6.20	31.00	70.00	6.20	3	1866249		0
501050620KMX		6.20	31.00	70.00	6.20	3	1866250		1	EVO
501050630KM		6.30	31.00	70.00	6.30	3	1866256		0
501050630KMX		6.30	31.00	70.00	6.30	3	1866257		1	EVO
501050640KM		6.40	31.00	70.00	6.40	3	1866264		0
501050640KMX		6.40	31.00	70.00	6.40	3	1866265		1	EVO
501050650KM		6.50	31.00	70.00	6.50	3	1866269		0
501050650KMX		6.50	31.00	70.00	6.50	3	1866270		1	EVO
501050660KM		6.60	31.00	70.00	6.60	3	1866281		0
501050660KMX		6.60	31.00	70.00	6.60	3	1866282		1	EVO
501050670KM		6.70	31.00	70.00	6.70	3	1866288		0
501050670KMX		6.70	31.00	70.00	6.70	3	1866289		1	EVO
501050680KM		6.80	34.00	74.00	6.80	3	1866300		0
501050680KMX		6.80	34.00	74.00	6.80	3	1866301		1	EVO
501050690KM		6.90	34.00	74.00	6.90	3	1866311		0
501050690KMX		6.90	34.00	74.00	6.90	3	1866312		1	EVO
501050700KM		7.00	34.00	74.00	7.00	3	1866317		0
501050700KMX		7.00	34.00	74.00	7.00	3	1866318		1	EVO
501050710KM		7.10	34.00	74.00	7.10	3	1866328		0
501050710KMX		7.10	34.00	74.00	7.10	3	1866329		1	EVO
501050720KM		7.20	34.00	74.00	7.20	3	1866333		0
501050720KMX		7.20	34.00	74.00	7.20	3	1866334		1	EVO
501050730KM		7.30	34.00	74.00	7.30	3	1866338		0
501050730KMX		7.30	34.00	74.00	7.30	3	1866339		1	EVO
501050740KM		7.40	34.00	74.00	7.40	3	1866344		0
501050740KMX		7.40	34.00	74.00	7.40	3	1866345		1	EVO
501050750KM		7.50	34.00	74.00	7.50	3	1866349		0
501050750KMX		7.50	34.00	74.00	7.50	3	1866350		1	EVO
501050760KM		7.60	37.00	79.00	7.60	3	1866356		0
501050760KMX		7.60	37.00	79.00	7.60	3	1866357		1	EVO
501050770KM		7.70	37.00	79.00	7.70	3	1866362		0
501050770KMX		7.70	37.00	79.00	7.70	3	1866363		1	EVO
501050780KM		7.80	37.00	79.00	7.80	3	1866369		0
501050780KMX		7.80	37.00	79.00	7.80	3	1866370		1	EVO
501050790KM		7.90	37.00	79.00	7.90	3	1866375		0
501050790KMX		7.90	37.00	79.00	7.90	3	1866376		1	EVO
501050800KM		8.00	37.00	79.00	8.00	3	1866382		0
501050800KMX		8.00	37.00	79.00	8.00	3	1866383		1	EVO
501050810KM		8.10	37.00	79.00	8.10	3	1866395		0
501050810KMX		8.10	37.00	79.00	8.10	3	1866396		1	EVO
501050820KM		8.20	37.00	79.00	8.20	3	1866400		0
501050820KMX		8.20	37.00	79.00	8.20	3	1866401		1	EVO
501050830KM		8.30	37.00	79.00	8.30	3	1866407		0
501050830KMX		8.30	37.00	79.00	8.30	3	1866408		1	EVO
501050840KM		8.40	37.00	79.00	8.40	3	1866412		0
501050840KMX		8.40	37.00	79.00	8.40	3	1866413		1	EVO
501050850KM		8.50	37.00	79.00	8.50	3	1866417		0
501050850KMX		8.50	37.00	79.00	8.50	3	1866418		1	EVO
501050860KM		8.60	40.00	84.00	8.60	3	1866430		0
501050860KMX		8.60	40.00	84.00	8.60	3	1866431		1	EVO
501050870KM		8.70	40.00	84.00	8.70	3	1866435		0
501050870KMX		8.70	40.00	84.00	8.70	3	1866436		1	EVO
501050880KM		8.80	40.00	84.00	8.80	3	1866443		0
501050880KMX		8.80	40.00	84.00	8.80	3	1866444		1	EVO
501050890KM		8.90	40.00	84.00	8.90	3	1866450		0
501050890KMX		8.90	40.00	84.00	8.90	3	1866451		1	EVO
501050900KM		9.00	40.00	84.00	9.00	3	1866455		0
501050900KMX		9.00	40.00	84.00	9.00	3	1866456		1	EVO
501050910KM		9.10	40.00	84.00	9.10	3	1866464		0
501050910KMX		9.10	40.00	84.00	9.10	3	1866465		1	EVO
501050920KM		9.20	40.00	84.00	9.20	3	1866470		0
501050920KMX		9.20	40.00	84.00	9.20	3	1866471		1	EVO
501050930KM		9.30	40.00	84.00	9.30	3	1866475		0
501050930KMX		9.30	40.00	84.00	9.30	3	1866476		1	EVO
501050940KM		9.40	40.00	84.00	9.40	3	1866481		0
501050940KMX		9.40	40.00	84.00	9.40	3	1866482		1	EVO
501050950KM		9.50	40.00	84.00	9.50	3	1866486		0
501050950KMX		9.50	40.00	84.00	9.50	3	1866487		1	EVO
501050960KM		9.60	43.00	89.00	9.60	3	1866495		0
501050960KMX		9.60	43.00	89.00	9.60	3	1866496		1	EVO
501050970KM		9.70	43.00	89.00	9.70	3	1866501		0
501050970KMX		9.70	43.00	89.00	9.70	3	1866502		1	EVO
501050980KM		9.80	43.00	89.00	9.80	3	1866508		0
501050980KMX		9.80	43.00	89.00	9.80	3	1866509		1	EVO
501050990KM		9.90	43.00	89.00	9.90	3	1866513		0
501050990KMX		9.90	43.00	89.00	9.90	3	1866514		1	EVO
501051000KM		10.00	43.00	89.00	10.00	3	1866519		0
501051000KMX		10.00	43.00	89.00	10.00	3	1866520		1	EVO
501051010KM		10.10	43.00	89.00	10.10	3	1866531		0
501051010KMX		10.10	43.00	89.00	10.10	3	1866532		1	EVO
501051020KM		10.20	43.00	89.00	10.20	3	1866538		0
501051020KMX		10.20	43.00	89.00	10.20	3	1866539		1	EVO
501051030KM		10.30	43.00	89.00	10.30	3	1866548		0
501051030KMX		10.30	43.00	89.00	10.30	3	1866549		1	EVO
501051040KM		10.40	43.00	89.00	10.40	3	1866555		0
501051040KMX		10.40	43.00	89.00	10.40	3	1866556		1	EVO
501051050KM		10.50	43.00	89.00	10.50	3	1866560		0
501051050KMX		10.50	43.00	89.00	10.50	3	1866561		1	EVO
501051060KM		10.60	43.00	89.00	10.60	3	1866571		0
501051060KMX		10.60	43.00	89.00	10.60	3	1866572		1	EVO
501051070KM		10.70	47.00	95.00	10.70	3	1866576		0
501051070KMX		10.70	47.00	95.00	10.70	3	1866577		1	EVO
501051080KM		10.80	47.00	95.00	10.80	3	1866583		0
501051080KMX		10.80	47.00	95.00	10.80	3	1866584		1	EVO
501051090KM		10.90	47.00	95.00	10.90	3	1866589		0
501051090KMX		10.90	47.00	95.00	10.90	3	1866590		1	EVO
501051100KM		11.00	47.00	95.00	11.00	3	1866594		0
501051100KMX		11.00	47.00	95.00	11.00	3	1866595		1	EVO
501051110KM		11.10	47.00	95.00	11.10	3	1866602		0
501051110KMX		11.10	47.00	95.00	11.10	3	1866603		1	EVO
501051120KM		11.20	47.00	95.00	11.20	3	1866608		0
501051120KMX		11.20	47.00	95.00	11.20	3	1866609		1	EVO
501051130KM	Y	11.30	47.00	95.00	11.30	3	1866613		0
501051130KMX		11.30	47.00	95.00	11.30	3	1866614		1	EVO
501051140KM		11.40	47.00	95.00	11.40	3	1866618		0
501051140KMX		11.40	47.00	95.00	11.40	3	1866619		1	EVO
501051150KM		11.50	47.00	95.00	11.50	3	1866623		0
501051150KMX		11.50	47.00	95.00	11.50	3	1866624		1	EVO
501051160KM		11.60	47.00	95.00	11.60	3	1866631		0
501051160KMX		11.60	47.00	95.00	11.60	3	1866632		1	EVO
501051170KM		11.70	47.00	95.00	11.70	3	1866636		0
501051170KMX		11.70	47.00	95.00	11.70	3	1866637		1	EVO
501051180KM		11.80	47.00	95.00	11.80	3	1866641		0
501051180KMX		11.80	47.00	95.00	11.80	3	1866642		1	EVO
501051190KM		11.90	51.00	102.00	11.90	3	1866646		0
501051190KMX		11.90	51.00	102.00	11.90	3	1866647		1	EVO
501051200KM		12.00	51.00	102.00	12.00	3	1866651		0
501051200KMX		12.00	51.00	102.00	12.00	3	1866652		1	EVO
501051250KM		12.50	51.00	102.00	12.50	3	1866663		0
501051250KMX		12.50	51.00	102.00	12.50	3	1866664		1	EVO
501051300KM		13.00	51.00	102.00	13.00	3	1866670		0
501051300KMX		13.00	51.00	102.00	13.00	3	1866671		1	EVO
501051350KM		13.50	54.00	107.00	13.50	3	1866680		0
501051350KMX		13.50	54.00	107.00	13.50	3	1866681		1	EVO
501051400KM		14.00	54.00	107.00	14.00	3	1866687		0
501051400KMX		14.00	54.00	107.00	14.00	3	1866688		1	EVO
501051450KM		14.50	56.00	111.00	14.50	3	1866695		0
501051450KMX		14.50	56.00	111.00	14.50	3	1866696		1	EVO
501051500KM		15.00	56.00	111.00	15.00	3	1866700		0
501051500KMX		15.00	56.00	111.00	15.00	3	1866701		1	EVO
501051550KM		15.50	58.00	115.00	15.50	3	1866709		0
501051550KMX		15.50	58.00	115.00	15.50	3	1866710		1	EVO
501051600KM		16.00	58.00	115.00	16.00	3	1866716		0
501051600KMX		16.00	58.00	115.00	16.00	3	1866717		1	EVO
501051700KM		17.00	60.00	119.00	17.00	3	1866723		0
501051700KMX		17.00	60.00	119.00	17.00	3	1866724		1	EVO
501051800KM		18.00	62.00	123.00	18.00	3	1866728		0
501051800KMX		18.00	62.00	123.00	18.00	3	1866729		1	EVO
501051900KM		19.00	64.00	127.00	19.00	3	1866736		0
501051900KMX		19.00	64.00	127.00	19.00	3	1866737		1	EVO
501052000KM		20.00	66.00	131.00	20.00	3	1866743		0
501052000KMX		20.00	66.00	131.00	20.00	3	1866744		1	EVO

Click here for the Cutting Parameters for this family

Site Map

Milling Hole Making Reaming

Any use of the UOP e-catalogue and any transactions which may be performed as a result of using this program are subject to UOP’s General Terms of Sale
Privacy Policy Cookie Policy
© 2026 UOP S.p.A. Manufacturer of Metalworking Tools (UOP.it) All Rights Reserved
