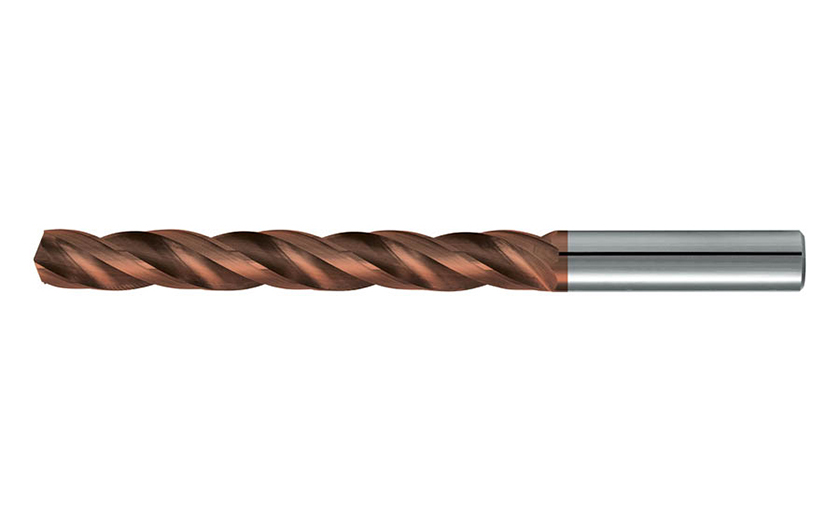

50120 : Three flutes twist drill

EVO DRILL

LAMBDA 30

TANG ON REQUEST

HEAD ANGLE 150

QUALITY STANDARD UOP

LONG

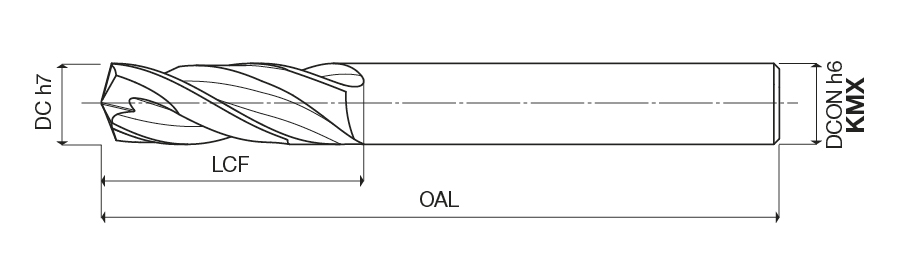

Designation	GICODE	DC	APMX	OAL	DCONMS	NOF	GICAT	GIREM	giic	Grade
501200200KM		2.00	24.00	49.00	2.00	3	1866749		0
501200200KMX		2.00	24.00	49.00	2.00	3	1866750		1	EVO
501200210KM		2.10	24.00	49.00	2.10	3	1866758		0
501200210KMX		2.10	24.00	49.00	2.10	3	1866759		1	EVO
501200220KM		2.20	27.00	53.00	2.20	3	1866763		0
501200220KMX		2.20	27.00	53.00	2.20	3	1866764		1	EVO
501200230KM		2.30	27.00	53.00	2.30	3	1866772		0
501200230KMX		2.30	27.00	53.00	2.30	3	1866773		1	EVO
501200240KM		2.40	30.00	57.00	2.40	3	1866777		0
501200240KMX		2.40	30.00	57.00	2.40	3	1866778		1	EVO
501200250KM		2.50	30.00	57.00	2.50	3	1866782		0
501200250KMX		2.50	30.00	57.00	2.50	3	1866783		1	EVO
501200260KM		2.60	30.00	57.00	2.60	3	1866788		0
501200260KMX		2.60	30.00	57.00	2.60	3	1866789		1	EVO
501200270KM		2.70	33.00	61.00	2.70	3	1866794		0
501200270KMX		2.70	33.00	61.00	2.70	3	1866795		1	EVO
501200280KM		2.80	33.00	61.00	2.80	3	1866799		0
501200280KMX		2.80	33.00	61.00	2.80	3	1866800		1	EVO
501200290KM		2.90	33.00	61.00	2.90	3	1866806		0
501200290KMX		2.90	33.00	61.00	2.90	3	1866807		1	EVO
501200300KM		3.00	33.00	61.00	3.00	3	1866811		0
501200300KMX		3.00	33.00	61.00	3.00	3	1866812		1	EVO
501200310KM		3.10	36.00	65.00	3.10	3	1866820		0
501200310KMX		3.10	36.00	65.00	3.10	3	1866821		1	EVO
501200320KM		3.20	36.00	65.00	3.20	3	1866827		0
501200320KMX		3.20	36.00	65.00	3.20	3	1866828		1	EVO
501200330KM		3.30	36.00	65.00	3.30	3	1866833		0
501200330KMX		3.30	36.00	65.00	3.30	3	1866834		1	EVO
501200340KM		3.40	39.00	70.00	3.40	3	1866839		0
501200340KMX		3.40	39.00	70.00	3.40	3	1866840		1	EVO
501200350KM		3.50	39.00	70.00	3.50	3	1866845		0
501200350KMX		3.50	39.00	70.00	3.50	3	1866846		1	EVO
501200360KM		3.60	39.00	70.00	3.60	3	1866853		0
501200360KMX		3.60	39.00	70.00	3.60	3	1866854		1	EVO
501200370KM		3.70	39.00	70.00	3.70	3	1866858		0
501200370KMX	Y	3.70	39.00	70.00	3.70	3	1866859		1	EVO
501200380KM		3.80	43.00	75.00	3.80	3	1866864		0
501200380KMX		3.80	43.00	75.00	3.80	3	1866865		1	EVO
501200390KM		3.90	43.00	75.00	3.90	3	1866871		0
501200390KMX		3.90	43.00	75.00	3.90	3	1866872		1	EVO
501200400KM		4.00	43.00	75.00	4.00	3	1866879		0
501200400KMX		4.00	43.00	75.00	4.00	3	1866880		1	EVO
501200410KM		4.10	43.00	75.00	4.10	3	1866888		0
501200410KMX		4.10	43.00	75.00	4.10	3	1866889		1	EVO
501200420KM		4.20	43.00	75.00	4.20	3	1866893		0
501200420KMX		4.20	43.00	75.00	4.20	3	1866894		1	EVO
501200430KM		4.30	47.00	80.00	4.30	3	1866900		0
501200430KMX		4.30	47.00	80.00	4.30	3	1866901		1	EVO
501200440KM		4.40	47.00	80.00	4.40	3	1866907		0
501200440KMX		4.40	47.00	80.00	4.40	3	1866908		1	EVO
501200450KM		4.50	47.00	80.00	4.50	3	1866912		0
501200450KMX		4.50	47.00	80.00	4.50	3	1866913		1	EVO
501200460KM		4.60	47.00	80.00	4.60	3	1866918		0
501200460KMX		4.60	47.00	80.00	4.60	3	1866919		1	EVO
501200470KM		4.70	52.00	86.00	4.70	3	1866923		0
501200470KMX		4.70	52.00	86.00	4.70	3	1866924		1	EVO
501200480KM		4.80	52.00	86.00	4.80	3	1866928		0
501200480KMX		4.80	52.00	86.00	4.80	3	1866929		1	EVO
501200490KM		4.90	52.00	86.00	4.90	3	1866936		0
501200490KMX		4.90	52.00	86.00	4.90	3	1866937		1	EVO
501200500KM		5.00	52.00	86.00	5.00	3	1866941		0
501200500KMX		5.00	52.00	86.00	5.00	3	1866942		1	EVO
501200510KM		5.10	52.00	86.00	5.10	3	1866950		0
501200510KMX		5.10	52.00	86.00	5.10	3	1866951		1	EVO
501200520KM		5.20	52.00	86.00	5.20	3	1866955		0
501200520KMX		5.20	52.00	86.00	5.20	3	1866956		1	EVO
501200530KM		5.30	52.00	86.00	5.30	3	1866960		0
501200530KMX		5.30	52.00	86.00	5.30	3	1866961		1	EVO
501200540KM	Y	5.40	57.00	93.00	5.40	3	1866966		0
501200540KMX		5.40	57.00	93.00	5.40	3	1866967		1	EVO
501200550KM		5.50	57.00	93.00	5.50	3	1866971		0
501200550KMX		5.50	57.00	93.00	5.50	3	1866972		1	EVO
501200560KM		5.60	57.00	93.00	5.60	3	1866979		0
501200560KMX		5.60	57.00	93.00	5.60	3	1866980		1	EVO
501200570KM		5.70	57.00	93.00	5.70	3	1866984		0
501200570KMX		5.70	57.00	93.00	5.70	3	1866985		1	EVO
501200580KM		5.80	57.00	93.00	5.80	3	1866989		0
501200580KMX		5.80	57.00	93.00	5.80	3	1866990		1	EVO
501200590KM		5.90	57.00	93.00	5.90	3	1866995		0
501200590KMX		5.90	57.00	93.00	5.90	3	1866996		1	EVO
501200600KM		6.00	57.00	93.00	6.00	3	1867004		0
501200600KMX		6.00	57.00	93.00	6.00	3	1867005		1	EVO
501200610KM		6.10	63.00	101.00	6.10	3	1867012		0
501200610KMX		6.10	63.00	101.00	6.10	3	1867013		1	EVO
501200620KM		6.20	63.00	101.00	6.20	3	1867019		0
501200620KMX		6.20	63.00	101.00	6.20	3	1867020		1	EVO
501200630KM		6.30	63.00	101.00	6.30	3	1867024		0
501200630KMX		6.30	63.00	101.00	6.30	3	1867025		1	EVO
501200640KM		6.40	63.00	101.00	6.40	3	1867029		0
501200640KMX		6.40	63.00	101.00	6.40	3	1867030		1	EVO
501200650KM		6.50	63.00	101.00	6.50	3	1867034		0
501200650KMX		6.50	63.00	101.00	6.50	3	1867035		1	EVO
501200660KM		6.60	63.00	101.00	6.60	3	1867041		0
501200660KMX		6.60	63.00	101.00	6.60	3	1867042		1	EVO
501200670KM		6.70	63.00	101.00	6.70	3	1867046		0
501200670KMX		6.70	63.00	101.00	6.70	3	1867047		1	EVO
501200680KM		6.80	69.00	109.00	6.80	3	1867052		0
501200680KMX		6.80	69.00	109.00	6.80	3	1867053		1	EVO
501200690KM		6.90	69.00	109.00	6.90	3	1867060		0
501200690KMX		6.90	69.00	109.00	6.90	3	1867061		1	EVO
501200700KM		7.00	69.00	109.00	7.00	3	1867065		0
501200700KMX		7.00	69.00	109.00	7.00	3	1867066		1	EVO
501200710KM		7.10	69.00	109.00	7.10	3	1867071		0
501200710KMX		7.10	69.00	109.00	7.10	3	1867072		1	EVO
501200720KM		7.20	69.00	109.00	7.20	3	1867076		0
501200720KMX		7.20	69.00	109.00	7.20	3	1867077		1	EVO
501200730KM		7.30	69.00	109.00	7.30	3	1867081		0
501200730KMX		7.30	69.00	109.00	7.30	3	1867082		1	EVO
501200740KM		7.40	69.00	109.00	7.40	3	1867086		0
501200740KMX		7.40	69.00	109.00	7.40	3	1867087		1	EVO
501200750KM		7.50	69.00	109.00	7.50	3	1867091		0
501200750KMX		7.50	69.00	109.00	7.50	3	1867092		1	EVO
501200760KM		7.60	75.00	117.00	7.60	3	1867096		0
501200760KMX		7.60	75.00	117.00	7.60	3	1867097		1	EVO
501200770KM		7.70	75.00	117.00	7.70	3	1867101		0
501200770KMX		7.70	75.00	117.00	7.70	3	1867102		1	EVO
501200780KM		7.80	75.00	117.00	7.80	3	1867106		0
501200780KMX		7.80	75.00	117.00	7.80	3	1867107		1	EVO
501200790KM		7.90	75.00	117.00	7.90	3	1867112		0
501200790KMX		7.90	75.00	117.00	7.90	3	1867113		1	EVO
501200800KM		8.00	75.00	117.00	8.00	3	1867118		0
501200800KMX		8.00	75.00	117.00	8.00	3	1867119		1	EVO
501200810KM		8.10	75.00	117.00	8.10	3	1867125		0
501200810KMX		8.10	75.00	117.00	8.10	3	1867126		1	EVO
501200820KM		8.20	75.00	117.00	8.20	3	1867130		0
501200820KMX		8.20	75.00	117.00	8.20	3	1867131		1	EVO
501200830KM		8.30	75.00	117.00	8.30	3	1867136		0
501200830KMX		8.30	75.00	117.00	8.30	3	1867137		1	EVO
501200840KM		8.40	75.00	117.00	8.40	3	1867142		0
501200840KMX		8.40	75.00	117.00	8.40	3	1867143		1	EVO
501200850KM		8.50	75.00	117.00	8.50	3	1867147		0
501200850KMX		8.50	75.00	117.00	8.50	3	1867148		1	EVO
501200860KM		8.60	81.00	125.00	8.60	3	1867156		0
501200860KMX		8.60	81.00	125.00	8.60	3	1867157		1	EVO
501200870KM		8.70	81.00	125.00	8.70	3	1867162		0
501200870KMX		8.70	81.00	125.00	8.70	3	1867163		1	EVO
501200880KM		8.80	81.00	125.00	8.80	3	1867167		0
501200880KMX		8.80	81.00	125.00	8.80	3	1867168		1	EVO
501200890KM		8.90	81.00	125.00	8.90	3	1867173		0
501200890KMX		8.90	81.00	125.00	8.90	3	1867174		1	EVO
501200900KM		9.00	81.00	125.00	9.00	3	1867178		0
501200900KMX		9.00	81.00	125.00	9.00	3	1867179		1	EVO
501200910KM		9.10	81.00	125.00	9.10	3	1867185		0
501200910KMX		9.10	81.00	125.00	9.10	3	1867186		1	EVO
501200920KM		9.20	81.00	125.00	9.20	3	1867190		0
501200920KMX		9.20	81.00	125.00	9.20	3	1867191		1	EVO
501200930KM		9.30	81.00	125.00	9.30	3	1867195		0
501200930KMX		9.30	81.00	125.00	9.30	3	1867196		1	EVO
501200940KM		9.40	81.00	125.00	9.40	3	1867200		0
501200940KMX		9.40	81.00	125.00	9.40	3	1867201		1	EVO
501200950KM		9.50	81.00	125.00	9.50	3	1867205		0
501200950KMX		9.50	81.00	125.00	9.50	3	1867206		1	EVO
501200960KM		9.60	87.00	133.00	9.60	3	1867211		0
501200960KMX		9.60	87.00	133.00	9.60	3	1867212		1	EVO
501200970KM		9.70	87.00	133.00	9.70	3	1867216		0
501200970KMX		9.70	87.00	133.00	9.70	3	1867217		1	EVO
501200980KM		9.80	87.00	133.00	9.80	3	1867221		0
501200980KMX		9.80	87.00	133.00	9.80	3	1867222		1	EVO
501200990KM		9.90	87.00	133.00	9.90	3	1867227		0
501200990KMX		9.90	87.00	133.00	9.90	3	1867228		1	EVO
501201000KM		10.00	87.00	133.00	10.00	3	1867234		0
501201000KMX		10.00	87.00	133.00	10.00	3	1867235		1	EVO
501201010KM		10.10	87.00	133.00	10.10	3	1867242		0
501201010KMX		10.10	87.00	133.00	10.10	3	1867243		1	EVO
501201020KM		10.20	87.00	133.00	10.20	3	1867247		0
501201020KMX		10.20	87.00	133.00	10.20	3	1867248		1	EVO
501201030KM		10.30	87.00	133.00	10.30	3	1867253		0
501201030KMX		10.30	87.00	133.00	10.30	3	1867254		1	EVO
501201040KM		10.40	87.00	133.00	10.40	3	1867259		0
501201040KMX		10.40	87.00	133.00	10.40	3	1867260		1	EVO
501201050KM		10.50	87.00	133.00	10.50	3	1867264		0
501201050KMX		10.50	87.00	133.00	10.50	3	1867265		1	EVO
501201060KM		10.60	87.00	133.00	10.60	3	1867273		0
501201060KMX		10.60	87.00	133.00	10.60	3	1867274		1	EVO
501201070KM		10.70	94.00	142.00	10.70	3	1867278		0
501201070KMX		10.70	94.00	142.00	10.70	3	1867279		1	EVO
501201080KM		10.80	94.00	142.00	10.80	3	1867283		0
501201080KMX		10.80	94.00	142.00	10.80	3	1867284		1	EVO
501201090KM		10.90	94.00	142.00	10.90	3	1867289		0
501201090KMX		10.90	94.00	142.00	10.90	3	1867290		1	EVO
501201100KM		11.00	94.00	142.00	11.00	3	1867294		0
501201100KMX		11.00	94.00	142.00	11.00	3	1867295		1	EVO
501201110KM		11.10	94.00	142.00	11.10	3	1867299		0
501201110KMX		11.10	94.00	142.00	11.10	3	1867300		1	EVO
501201120KM		11.20	94.00	142.00	11.20	3	1867304		0
501201120KMX		11.20	94.00	142.00	11.20	3	1867305		1	EVO
501201130KM		11.30	94.00	142.00	11.30	3	1867309		0
501201130KMX		11.30	94.00	142.00	11.30	3	1867310		1	EVO
501201140KM		11.40	94.00	142.00	11.40	3	1867314		0
501201140KMX		11.40	94.00	142.00	11.40	3	1867315		1	EVO
501201150KM		11.50	94.00	142.00	11.50	3	1867319		0
501201150KMX		11.50	94.00	142.00	11.50	3	1867320		1	EVO
501201160KM		11.60	94.00	142.00	11.60	3	1867324		0
501201160KMX		11.60	94.00	142.00	11.60	3	1867325		1	EVO
501201170KM		11.70	94.00	142.00	11.70	3	1867329		0
501201170KMX		11.70	94.00	142.00	11.70	3	1867330		1	EVO
501201180KM		11.80	94.00	142.00	11.80	3	1867335		0
501201180KMX		11.80	94.00	142.00	11.80	3	1867336		1	EVO
501201190KM		11.90	101.00	151.00	11.90	3	1867340		0
501201190KMX		11.90	101.00	151.00	11.90	3	1867341		1	EVO
501201200KM		12.00	101.00	151.00	12.00	3	1867346		0
501201200KMX		12.00	101.00	151.00	12.00	3	1867347		1	EVO
501201250KM		12.50	101.00	151.00	12.50	3	1867354		0
501201250KMX		12.50	101.00	151.00	12.50	3	1867355		1	EVO
501201300KM		13.00	101.00	151.00	13.00	3	1867360		0
501201300KMX		13.00	101.00	151.00	13.00	3	1867361		1	EVO
501201350KM		13.50	108.00	160.00	13.50	3	1867367		0
501201350KMX		13.50	108.00	160.00	13.50	3	1867368		1	EVO
501201400KM		14.00	108.00	160.00	14.00	3	1867372		0
501201400KMX		14.00	108.00	160.00	14.00	3	1867373		1	EVO
501201450KM		14.50	114.00	169.00	14.50	3	1867378		0
501201450KMX		14.50	114.00	169.00	14.50	3	1867379		1	EVO
501201500KM		15.00	114.00	169.00	15.00	3	1867383		0
501201500KMX		15.00	114.00	169.00	15.00	3	1867384		1	EVO
501201550KM		15.50	120.00	178.00	15.50	3	1867389		0
501201550KMX		15.50	120.00	178.00	15.50	3	1867390		1	EVO
501201600KM		16.00	120.00	178.00	16.00	3	1867394		0
501201600KMX		16.00	120.00	178.00	16.00	3	1867395		1	EVO
501201700KM		17.00	125.00	184.00	17.00	3	1867400		0
501201700KMX		17.00	125.00	184.00	17.00	3	1867401		1	EVO
501201800KM		18.00	130.00	191.00	18.00	3	1867406		0
501201800KMX		18.00	130.00	191.00	18.00	3	1867407		1	EVO
501201900KM		19.00	135.00	198.00	19.00	3	1867412		0
501201900KMX		19.00	135.00	198.00	19.00	3	1867413		1	EVO
501202000KM		20.00	140.00	205.00	20.00	3	1867417		0
501202000KMX		20.00	140.00	205.00	20.00	3	1867418		1	EVO

Click here for the Cutting Parameters for this family

Site Map

Milling Hole Making Reaming

Any use of the UOP e-catalogue and any transactions which may be performed as a result of using this program are subject to UOP’s General Terms of Sale
Privacy Policy Cookie Policy
© 2026 UOP S.p.A. Manufacturer of Metalworking Tools (UOP.it) All Rights Reserved
