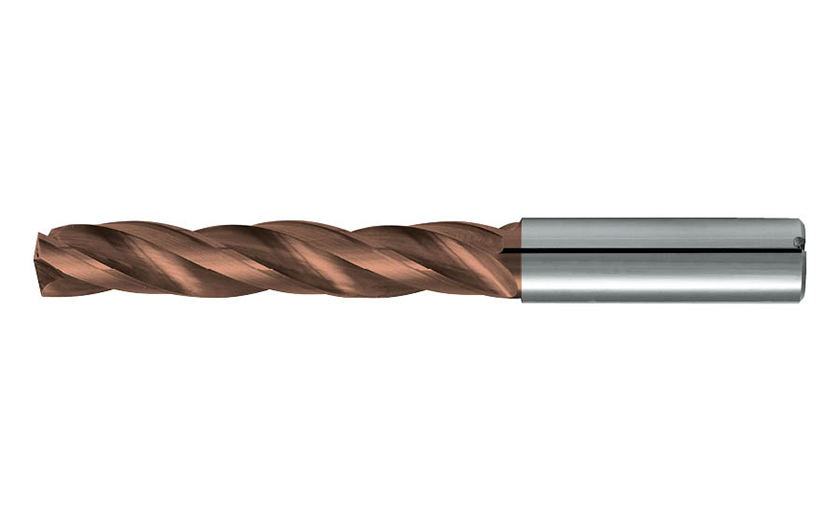

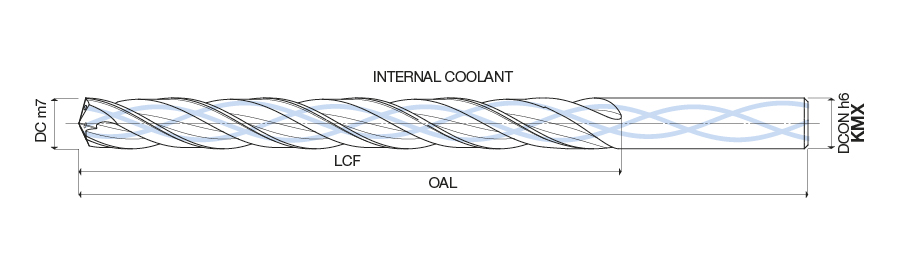

50510 : "HP" three flute twist drills with inner coolant

Designation	GICODE	DC	APMX	OAL	DCONMS	NOF	GICAT	giic	Grade
505100500KM		5.00	44.00	82.00	6.00	3	1884394	0
505100500KMX		5.00	44.00	82.00	6.00	3	1867422	1	EVO
505100600KM		6.00	44.00	82.00	6.00	3	1884395	0
505100600KMX		6.00	44.00	82.00	6.00	3	1867430	1	EVO
505100650KM		6.50	53.00	91.00	8.00	3	1884396	0
505100650KMX		6.50	53.00	91.00	8.00	3	1867436	1	EVO
505100660KM		6.60	53.00	91.00	8.00	3	1867443	0
505100660KMX		6.60	53.00	91.00	8.00	3	1867444	1	EVO
505100680KM		6.80	53.00	91.00	8.00	3	1884397	0
505100680KMX		6.80	53.00	91.00	8.00	3	1867450	1	EVO
505100700KM		7.00	53.00	91.00	8.00	3	1884398	0
505100700KMX		7.00	53.00	91.00	8.00	3	1867458	1	EVO
505100750KM		7.50	53.00	91.00	8.00	3	1884399	0
505100750KMX		7.50	53.00	91.00	8.00	3	1867464	1	EVO
505100780KM		7.80	53.00	91.00	8.00	3	1884400	0
505100780KMX		7.80	53.00	91.00	8.00	3	1867470	1	EVO
505100800KM		8.00	53.00	91.00	8.00	3	1867478	0
505100800KMX		8.00	53.00	91.00	8.00	3	1867479	1	EVO
505100850KM		8.50	61.00	103.00	10.00	3	1884401	0
505100850KMX		8.50	61.00	103.00	10.00	3	1867486	1	EVO
505100880KM		8.80	61.00	103.00	10.00	3	1867495	0
505100880KMX		8.80	61.00	103.00	10.00	3	1867496	1	EVO
505100900KM		9.00	61.00	103.00	10.00	3	1867504	0
505100900KMX		9.00	61.00	103.00	10.00	3	1867505	1	EVO
505100950KM		9.50	61.00	103.00	10.00	3	1867511	0
505100950KMX		9.50	61.00	103.00	10.00	3	1867512	1	EVO
505100980KM		9.80	61.00	103.00	10.00	3	1884402	0
505100980KMX		9.80	61.00	103.00	10.00	3	1867521	1	EVO
505101000KM		10.00	61.00	103.00	10.00	3	1884390	0
505101000KMX		10.00	61.00	103.00	10.00	3	1867527	1	EVO
505101020KM		10.20	71.00	118.00	12.00	3	1884403	0
505101020KMX		10.20	71.00	118.00	12.00	3	1867534	1	EVO
505101050KM		10.50	71.00	118.00	12.00	3	1884404	0
505101050KMX		10.50	71.00	118.00	12.00	3	1867540	1	EVO
505101080KM		10.80	71.00	118.00	12.00	3	1884405	0
505101080KMX		10.80	71.00	118.00	12.00	3	1867547	1	EVO
505101100KM		11.00	71.00	118.00	12.00	3	1884406	0
505101100KMX		11.00	71.00	118.00	12.00	3	1867553	1	EVO
505101150KM		11.50	71.00	118.00	12.00	3	1884407	0
505101150KMX		11.50	71.00	118.00	12.00	3	1867560	1	EVO
505101180KM		11.80	71.00	118.00	12.00	3	1884408	0
505101180KMX		11.80	71.00	118.00	12.00	3	1867566	1	EVO
505101200KM		12.00	71.00	118.00	12.00	3	1884409	0
505101200KMX		12.00	71.00	118.00	12.00	3	1867572	1	EVO
505101250KM		12.50	77.00	124.00	14.00	3	1884410	0
505101250KMX		12.50	77.00	124.00	14.00	3	1867579	1	EVO
505101300KM		13.00	77.00	124.00	14.00	3	1867585	0
505101300KMX		13.00	77.00	124.00	14.00	3	1867586	1	EVO
505101350KM		13.50	77.00	124.00	14.00	3	1884411	0
505101350KMX	Y	13.50	77.00	124.00	14.00	3	1867592	1	EVO
505101400KM		14.00	77.00	124.00	14.00	3	1867598	0
505101400KMX		14.00	77.00	124.00	14.00	3	1867599	1	EVO
505101450KM		14.50	83.00	133.00	16.00	3	1884412	0
505101450KMX		14.50	83.00	133.00	16.00	3	1867605	1	EVO
505101500KM		15.00	83.00	133.00	16.00	3	1867611	0
505101500KMX		15.00	83.00	133.00	16.00	3	1867612	1	EVO
505101550KM		15.50	83.00	133.00	16.00	3	1884413	0
505101550KMX		15.50	83.00	133.00	16.00	3	1867618	1	EVO
505101600KM		16.00	83.00	133.00	16.00	3	1884414	0
505101600KMX		16.00	83.00	133.00	16.00	3	1867625	1	EVO
505101650KM		16.50	93.00	143.00	18.00	3	1884415	0
505101650KMX		16.50	93.00	143.00	18.00	3	1867631	1	EVO
505101700KM		17.00	93.00	143.00	18.00	3	1884416	0
505101700KMX		17.00	93.00	143.00	18.00	3	1867637	1	EVO
505101750KM		17.50	93.00	143.00	18.00	3	1884417	0
505101750KMX		17.50	93.00	143.00	18.00	3	1867643	1	EVO
505101800KM		18.00	93.00	143.00	18.00	3	1884418	0
505101800KMX		18.00	93.00	143.00	18.00	3	1867649	1	EVO
505101900KM		19.00	101.00	153.00	20.00	3	1884419	0
505101900KMX		19.00	101.00	153.00	20.00	3	1867655	1	EVO
505102000KM		20.00	101.00	153.00	20.00	3	1884420	0
505102000KMX		20.00	101.00	153.00	20.00	3	1867661	1	EVO
