Hole Making
Main Application

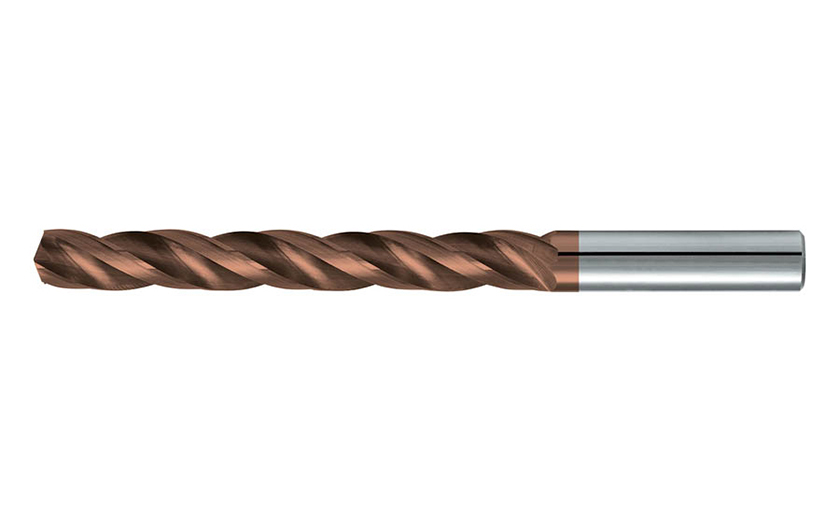

50520 : "HP" three flute twist drills with inner coolante.


 EVO DRILL  FINISHING CUTTING EDGE PROFILE H  DIN 6535HE ON REQUEST  HEAD ANGLE 150  QUALITY STANDARD UOP  LONG

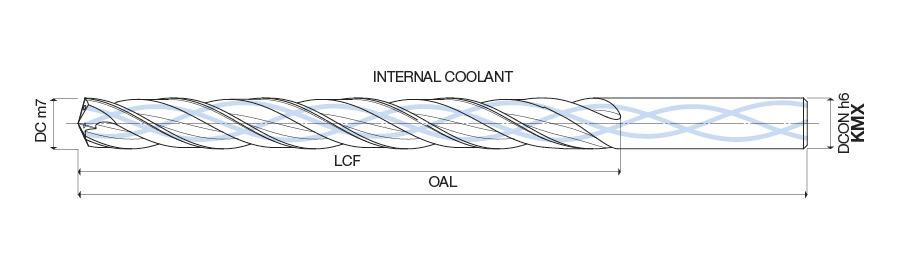

  DesignationGICODEDCLCFOALDCONMSNOFGICATGIREMgiicGrade
  505200500KM  5.0052.086.006.0031812422 0
  505200500KMX  5.0052.086.006.0031812427 1EVO
  505200550KM  5.5057.093.006.0031812428 0
  505200550KMX  5.5057.093.006.0031812434 1EVO
  505200600KM  6.0057.093.006.0031812435 0
  505200600KMX  6.0057.093.006.0031812436 1EVO
  505200650KM  6.5063.0101.008.0031812437 0
  505200650KMX  6.5063.0101.008.0031812438 1EVO
  505200680KM  6.8069.0109.008.0031812443 0
  505200680KMX  6.8069.0109.008.0031812444 1EVO
  505200700KM  7.0069.0109.008.0031812445 0
  505200700KMX  7.0069.0109.008.0031812446 1EVO
  505200750KM  7.5069.0109.008.0031812451 0
  505200750KMX  7.5069.0109.008.0031812452 1EVO
  505200800KM  8.0075.0117.008.0031812453 0
  505200800KMX  8.0075.0117.008.0031812454 1EVO
  505200850KM  8.5075.0117.0010.0031812458 0
  505200850KMX  8.5075.0117.0010.0031812459 1EVO
  505200880KM  8.8081.0125.0010.0031812460 0
  505200880KMX  8.8081.0125.0010.0031812461 1EVO
  505200900KM  9.0081.0125.0010.0031812462 0
  505200900KMX  9.0081.0125.0010.0031812468 1EVO
  505200950KM  9.5081.0125.0010.0031812469 0
  505200950KMX  9.5081.0125.0010.0031812470 1EVO
  505201000KM  10.0087.0133.0010.0031812471 0
  505201000KMX  10.0087.0133.0010.0031812476 1EVO
  505201020KM  10.2087.0133.0012.0031812477 0
  505201020KMX  10.2087.0133.0012.0031812478 1EVO
  505201050KM  10.5087.0133.0012.0031812479 0
  505201050KMX  10.5087.0133.0012.0031812480 1EVO
  505201100KM  11.0094.0142.0012.0031812487 0
  505201100KMX  11.0094.0142.0012.0031812488 1EVO
  505201150KM  11.5094.0142.0012.0031812489 0
  505201150KMX  11.5094.0142.0012.0031812490 1EVO
  505201200KM  12.00101.0151.0012.0031812491 0
  505201200KMX  12.00101.0151.0012.0031812496 1EVO
  505201250KM  12.50101.0151.0014.0031812497 0
  505201250KMX  12.50101.0151.0014.0031812498 1EVO
  505201300KM  13.00101.0151.0014.0031812499 0
  505201300KMX  13.00101.0151.0014.0031812500 1EVO
  505201350KM  13.50108.0160.0014.0031812501 0
  505201350KMX  13.50108.0160.0014.0031812508 1EVO
  505201400KM  14.00108.0160.0014.0031812509 0
  505201400KMX  14.00108.0160.0014.0031812510 1EVO
  505201450KM  14.50114.0169.0016.0031812511 0
  505201450KMX  14.50114.0169.0016.0031812512 1EVO
  505201500KM  15.00114.0169.0016.0031812513 0
  505201500KMX  15.00114.0169.0016.0031812518 1EVO
  505201550KM  15.50120.0178.0016.0031812519 0
  505201550KMX  15.50120.0178.0016.0031812520 1EVO
  505201600KM  16.00120.0178.0016.0031812521 0
  505201600KMX  16.00120.0178.0016.0031812528 1EVO
Click here for the Cutting Parameters for this family
