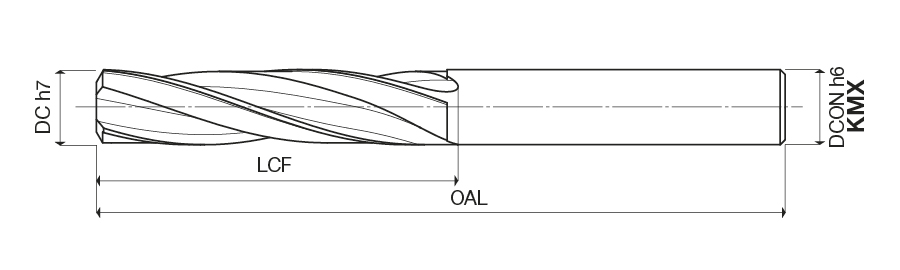

51105 : Three flute core drills

EVO DRILL

LAMBDA 30

TANG ON REQUEST

QUALITY STANDARD UOP

NORMAL

Designation	GICODE	DC	APMX	OAL	DCONMS	NOF				GICAT	GIREM	giic
511050200KM		2.00	11.00	37.00	2.00	3				1867667		0
511050200KMX		2.00	11.00	37.00	2.00	3				1867668		0
511050210KM		2.10	11.00	37.00	2.10	3				1867672		0
511050210KMX		2.10	11.00	37.00	2.10	3				1867673		0
511050220KM		2.20	12.00	39.00	2.20	3				1867677		0
511050220KMX		2.20	12.00	39.00	2.20	3				1867678		0
511050230KM		2.30	12.00	39.00	2.30	3				1867682		0
511050230KMX		2.30	12.00	39.00	2.30	3				1867683		0
511050240KM		2.40	13.00	42.00	2.40	3				1867687		0
511050240KMX		2.40	13.00	42.00	2.40	3				1867688		0
511050250KM		2.50	13.00	42.00	2.50	3				1867692		0
511050250KMX		2.50	13.00	42.00	2.50	3				1867693		0
511050260KM		2.60	13.00	42.00	2.60	3				1867697		0
511050260KMX		2.60	13.00	42.00	2.60	3				1867698		0
511050270KM		2.70	15.00	45.00	2.70	3				1867702		0
511050270KMX		2.70	15.00	45.00	2.70	3				1867703		0
511050280KM		2.80	15.00	45.00	2.80	3				1867707		0
511050280KMX		2.80	15.00	45.00	2.80	3				1867708		0
511050290KM		2.90	15.00	45.00	2.90	3				1867714		0
511050290KMX		2.90	15.00	45.00	2.90	3				1867715		0
511050300KM		3.00	15.00	45.00	3.00	3				1867720		0
511050300KMX		3.00	15.00	45.00	3.00	3				1867721		0
511050310KM		3.10	17.00	48.00	3.10	3				1867726		0
511050310KMX		3.10	17.00	48.00	3.10	3				1867727		0
511050320KM		3.20	17.00	48.00	3.20	3				1867731		0
511050320KMX		3.20	17.00	48.00	3.20	3				1867732		0
511050330KM		3.30	17.00	48.00	3.30	3				1867736		0
511050330KMX		3.30	17.00	48.00	3.30	3				1867737		0
511050340KM		3.40	19.00	51.00	3.40	3				1867742		0
511050340KMX		3.40	19.00	51.00	3.40	3				1867743		0
511050350KM		3.50	19.00	51.00	3.50	3				1867747		0
511050350KMX		3.50	19.00	51.00	3.50	3				1867748		0
511050360KM		3.60	19.00	51.00	3.60	3				1867753		0
511050360KMX		3.60	19.00	51.00	3.60	3				1867754		0
511050370KM		3.70	19.00	51.00	3.70	3				1867758		0
511050370KMX		3.70	19.00	51.00	3.70	3				1867759		0
511050380KM		3.80	21.00	54.00	3.80	3				1867763		0
511050380KMX		3.80	21.00	54.00	3.80	3				1867764		0
511050390KM		3.90	21.00	54.00	3.90	3				1867770		0
511050390KMX		3.90	21.00	54.00	3.90	3				1867771		0
511050400KM		4.00	21.00	54.00	4.00	3				1867776		0
511050400KMX		4.00	21.00	54.00	4.00	3				1867777		0
511050410KM		4.10	21.00	54.00	4.10	3				1867785		0
511050410KMX		4.10	21.00	54.00	4.10	3				1867786		0
511050420KM		4.20	21.00	54.00	4.20	3				1867790		0
511050420KMX		4.20	21.00	54.00	4.20	3				1867791		0
511050430KM		4.30	23.00	57.00	4.30	3				1867795		0
511050430KMX		4.30	23.00	57.00	4.30	3				1867796		0
511050440KM		4.40	23.00	57.00	4.40	3				1867800		0
511050440KMX		4.40	23.00	57.00	4.40	3				1867801		0
511050450KM		4.50	23.00	57.00	4.50	3				1867805		0
511050450KMX		4.50	23.00	57.00	4.50	3				1867806		0
511050460KM		4.60	23.00	57.00	4.60	3				1867811		0
511050460KMX		4.60	23.00	57.00	4.60	3				1867812		0
511050470KM		4.70	23.00	57.00	4.70	3				1867816		0
511050470KMX	Y	4.70	23.00	57.00	4.70	3				1867817		0
511050480KM		4.80	25.00	61.00	4.80	3				1867821		0
511050480KMX		4.80	25.00	61.00	4.80	3				1867822		0
511050490KM		4.90	25.00	61.00	4.90	3				1867827		0
511050490KMX		4.90	25.00	61.00	4.90	3				1867828		0
511050500KM		5.00	25.00	61.00	5.00	3				1867832		0
511050500KMX		5.00	25.00	61.00	5.00	3				1867833		0
511050510KM		5.10	25.00	61.00	5.10	3				1867841		0
511050510KMX		5.10	25.00	61.00	5.10	3				1867842		0
511050520KM		5.20	25.00	61.00	5.20	3				1867847		0
511050520KMX		5.20	25.00	61.00	5.20	3				1867848		0
511050530KM		5.30	25.00	61.00	5.30	3				1867853		0
511050530KMX		5.30	25.00	61.00	5.30	3				1867854		0
511050540KM		5.40	27.00	65.00	5.40	3				1867858		0
511050540KMX		5.40	27.00	65.00	5.40	3				1867859		0
511050550KM		5.50	27.00	65.00	5.50	3				1867864		0
511050550KMX		5.50	27.00	65.00	5.50	3				1867865		0
511050560KM		5.60	27.00	65.00	5.60	3				1867869		0
511050560KMX		5.60	27.00	65.00	5.60	3				1867870		0
511050570KM		5.70	27.00	65.00	5.70	3				1867874		0
511050570KMX		5.70	27.00	65.00	5.70	3				1867875		0
511050580KM		5.80	27.00	65.00	5.80	3				1867879		0
511050580KMX		5.80	27.00	65.00	5.80	3				1867880		0
511050590KM		5.90	27.00	65.00	5.90	3				1867885		0
511050590KMX		5.90	27.00	65.00	5.90	3				1867886		0
511050600KM		6.00	27.00	65.00	6.00	3				1867893		0
511050600KMX		6.00	27.00	65.00	6.00	3				1867894		0
511050610KM		6.10	30.00	69.00	6.10	3				1867900		0
511050610KMX		6.10	30.00	69.00	6.10	3				1867901		0
511050620KM		6.20	30.00	69.00	6.20	3				1867905		0
511050620KMX		6.20	30.00	69.00	6.20	3				1867906		0
511050630KM		6.30	30.00	69.00	6.30	3				1867912		0
511050630KMX		6.30	30.00	69.00	6.30	3				1867913		0
511050640KM		6.40	30.00	69.00	6.40	3				1867917		0
511050640KMX		6.40	30.00	69.00	6.40	3				1867918		0
511050650KM		6.50	30.00	69.00	6.50	3				1867922		0
511050650KMX		6.50	30.00	69.00	6.50	3				1867923		0
511050660KM		6.60	30.00	69.00	6.60	3				1867927		0
511050660KMX		6.60	30.00	69.00	6.60	3				1867928		0
511050670KM		6.70	30.00	69.00	6.70	3				1867932		0
511050670KMX		6.70	30.00	69.00	6.70	3				1867933		0
511050680KM		6.80	33.00	73.00	6.80	3				1867937		0
511050680KMX		6.80	33.00	73.00	6.80	3				1867938		0
511050690KM		6.90	33.00	73.00	6.90	3				1867942		0
511050690KMX		6.90	33.00	73.00	6.90	3				1867943		0
511050700KM		7.00	33.00	73.00	7.00	3				1867947		0
511050700KMX		7.00	33.00	73.00	7.00	3				1867948		0
511050710KM		7.10	33.00	73.00	7.10	3				1867953		0
511050710KMX		7.10	33.00	73.00	7.10	3				1867954		0
511050720KM		7.20	33.00	73.00	7.20	3				1867958		0
511050720KMX		7.20	33.00	73.00	7.20	3				1867959		0
511050730KM		7.30	33.00	73.00	7.30	3				1867963		0
511050730KMX		7.30	33.00	73.00	7.30	3				1867964		0
511050740KM		7.40	33.00	73.00	7.40	3				1867969		0
511050740KMX		7.40	33.00	73.00	7.40	3				1867970		0
511050750KM		7.50	33.00	73.00	7.50	3				1867974		0
511050750KMX		7.50	33.00	73.00	7.50	3				1867975		0
511050760KM		7.60	35.00	77.00	7.60	3				1867979		0
511050760KMX		7.60	35.00	77.00	7.60	3				1867980		0
511050770KM		7.70	35.00	77.00	7.70	3				1867984		0
511050770KMX		7.70	35.00	77.00	7.70	3				1867985		0
511050780KM		7.80	35.00	77.00	7.80	3				1867989		0
511050780KMX		7.80	35.00	77.00	7.80	3				1867990		0
511050790KM		7.90	35.00	77.00	7.90	3				1867996		0
511050790KMX		7.90	35.00	77.00	7.90	3				1867997		0
511050800KM		8.00	35.00	77.00	8.00	3				1868003		0
511050800KMX		8.00	35.00	77.00	8.00	3				1868004		0
511050810KM		8.10	35.00	77.00	8.10	3				1868011		0
511050810KMX		8.10	35.00	77.00	8.10	3				1868012		0
511050820KM		8.20	35.00	77.00	8.20	3				1868016		0
511050820KMX		8.20	35.00	77.00	8.20	3				1868017		0
511050830KM		8.30	35.00	77.00	8.30	3				1868021		0
511050830KMX		8.30	35.00	77.00	8.30	3				1868022		0
511050840KM		8.40	35.00	77.00	8.40	3				1868026		0
511050840KMX		8.40	35.00	77.00	8.40	3				1868027		0
511050850KM		8.50	35.00	77.00	8.50	3				1868031		0
511050850KMX		8.50	35.00	77.00	8.50	3				1868032		0
511050860KM		8.60	38.00	82.00	8.60	3				1868036		0
511050860KMX		8.60	38.00	82.00	8.60	3				1868037		0
511050870KM		8.70	38.00	82.00	8.70	3				1868041		0
511050870KMX		8.70	38.00	82.00	8.70	3				1868042		0
511050880KM		8.80	38.00	82.00	8.80	3				1868046		0
511050880KMX		8.80	38.00	82.00	8.80	3				1868047		0
511050890KM		8.90	38.00	82.00	8.90	3				1868051		0
511050890KMX		8.90	38.00	82.00	8.90	3				1868052		0
511050900KM		9.00	38.00	82.00	9.00	3				1868056		0
511050900KMX		9.00	38.00	82.00	9.00	3				1868057		0
511050910KM		9.10	38.00	82.00	9.10	3				1868061		0
511050910KMX		9.10	38.00	82.00	9.10	3				1868062		0
511050920KM		9.20	38.00	82.00	9.20	3				1868066		0
511050920KMX		9.20	38.00	82.00	9.20	3				1868067		0
511050930KM		9.30	38.00	82.00	9.30	3				1868071		0
511050930KMX		9.30	38.00	82.00	9.30	3				1868072		0
511050940KM		9.40	38.00	82.00	9.40	3				1868076		0
511050940KMX		9.40	38.00	82.00	9.40	3				1868077		0
511050950KM		9.50	38.00	82.00	9.50	3				1868081		0
511050950KMX		9.50	38.00	82.00	9.50	3				1868082		0
511050960KM		9.60	41.00	87.00	9.60	3				1868086		0
511050960KMX		9.60	41.00	87.00	9.60	3				1868087		0
511050970KM		9.70	41.00	87.00	9.70	3				1868091		0
511050970KMX		9.70	41.00	87.00	9.70	3				1868092		0
511050980KM		9.80	41.00	87.00	9.80	3				1868096		0
511050980KMX		9.80	41.00	87.00	9.80	3				1868097		0
511050990KM		9.90	41.00	87.00	9.90	3				1868103		0
511050990KMX		9.90	41.00	87.00	9.90	3				1868104		0
511051000KM		10.00	41.00	87.00	10.00	3				1868109		0
511051000KMX		10.00	41.00	87.00	10.00	3				1868110		0
511051010KM		10.10	41.00	87.00	10.10	3				1868116		0
511051010KMX		10.10	41.00	87.00	10.10	3				1868117		0
511051020KM		10.20	41.00	87.00	10.20	3				1868121		0
511051020KMX		10.20	41.00	87.00	10.20	3				1868122		0
511051030KM		10.30	41.00	87.00	10.30	3				1868128		0
511051030KMX		10.30	41.00	87.00	10.30	3				1868129		0
511051040KM		10.40	41.00	87.00	10.40	3				1868133		0
511051040KMX		10.40	41.00	87.00	10.40	3				1868134		0
511051050KM		10.50	41.00	87.00	10.50	3				1868138		0
511051050KMX		10.50	41.00	87.00	10.50	3				1868139		0
511051060KM		10.60	41.00	87.00	10.60	3				1868143		0
511051060KMX		10.60	41.00	87.00	10.60	3				1868144		0
511051070KM		10.70	45.00	93.00	10.70	3				1868148		0
511051070KMX		10.70	45.00	93.00	10.70	3				1868149		0
511051080KM		10.80	45.00	93.00	10.80	3				1868153		0
511051080KMX		10.80	45.00	93.00	10.80	3				1868154		0
511051090KM		10.90	45.00	93.00	10.90	3				1868159		0
511051090KMX		10.90	45.00	93.00	10.90	3				1868160		0
511051100KM		11.00	45.00	93.00	11.00	3				1868164		0
511051100KMX		11.00	45.00	93.00	11.00	3				1868165		0
511051110KM		11.10	45.00	93.00	11.10	3				1868169		0
511051110KMX	Y	11.10	45.00	93.00	11.10	3				1868170		0
511051120KM		11.20	45.00	93.00	11.20	3				1868178		0
511051120KMX		11.20	45.00	93.00	11.20	3				1868179		0
511051130KM		11.30	45.00	93.00	11.30	3				1868187		0
511051130KMX		11.30	45.00	93.00	11.30	3				1868188		0
511051140KM		11.40	45.00	93.00	11.40	3				1868196		0
511051140KMX		11.40	45.00	93.00	11.40	3				1868197		0
511051150KM		11.50	45.00	93.00	11.50	3				1868201		0
511051150KMX		11.50	45.00	93.00	11.50	3				1868202		0
511051160KM		11.60	45.00	93.00	11.60	3				1868206		0
511051160KMX		11.60	45.00	93.00	11.60	3				1868207		0
511051170KM		11.70	45.00	93.00	11.70	3				1868211		0
511051170KMX		11.70	45.00	93.00	11.70	3				1868212		0
511051180KM		11.80	45.00	93.00	11.80	3				1868216		0
511051180KMX		11.80	45.00	93.00	11.80	3				1868217		0
511051190KM		11.90	49.00	100.00	11.90	3				1868221		0
511051190KMX		11.90	49.00	100.00	11.90	3				1868222		0
511051200KM		12.00	49.00	100.00	12.00	3				1868229		0
511051200KMX		12.00	49.00	100.00	12.00	3				1868230		0
511051250KM		12.50	49.00	100.00	12.50	3				1868235		0
511051250KMX		12.50	49.00	100.00	12.50	3				1868236		0
511051300KM		13.00	49.00	100.00	13.00	3				1868240		0
511051300KMX		13.00	49.00	100.00	13.00	3				1868241		0
511051350KM		13.50	52.00	105.00	13.50	3				1868245		0
511051350KMX		13.50	52.00	105.00	13.50	3				1868246		0
511051400KM		14.00	52.00	105.00	14.00	3				1868250		0
511051400KMX		14.00	52.00	105.00	14.00	3				1868251		0
511051450KM		14.50	54.00	109.00	14.50	3				1868255		0
511051450KMX		14.50	54.00	109.00	14.50	3				1868256		0
511051500KM		15.00	54.00	109.00	15.00	3				1868260		0
511051500KMX		15.00	54.00	109.00	15.00	3				1868261		0
511051550KM		15.50	55.00	112.00	15.50	3				1868265		0
511051550KMX		15.50	55.00	112.00	15.50	3				1868266		0
511051600KM		16.00	55.00	112.00	16.00	3				1868272		0
511051600KMX		16.00	55.00	112.00	16.00	3				1868273		0
511051700KM		17.00	57.00	116.00	17.00	3				1868277		0
511051700KMX		17.00	57.00	116.00	17.00	3				1868278		0
511051800KM		18.00	59.00	120.00	18.00	3				1868282		0
511051800KMX		18.00	59.00	120.00	18.00	3				1868283		0
511051900KM		19.00	61.00	124.00	19.00	3				1868287		0
511051900KMX		19.00	61.00	124.00	19.00	3				1868288		0
511052000KM		20.00	63.00	128.00	20.00	3				1868292		0
511052000KMX		20.00	63.00	128.00	20.00	3				1868293		0

Click here for the Cutting Parameters for this family

Site Map

Milling Hole Making Reaming

Any use of the UOP e-catalogue and any transactions which may be performed as a result of using this program are subject to UOP’s General Terms of Sale
Privacy Policy Cookie Policy
© 2026 UOP S.p.A. Manufacturer of Metalworking Tools (UOP.it) All Rights Reserved
