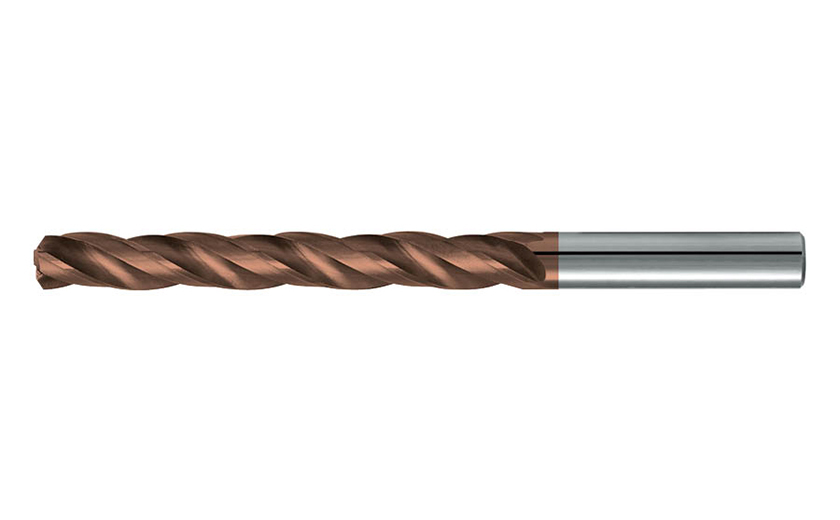

51120 : Three flute core drills

EVO DRILL

LAMBDA 30

TANG ON REQUEST

QUALITY STANDARD UOP

LONG

Designation	GICODE	DC	APMX	OAL	DCONMS	NOF					GICAT	GIREM	giic
511200200KM		2.00	23.00	48.00	2.00	3					1868297		0
511200200KMX		2.00	23.00	48.00	2.00	3					1868298		0
511200210KM		2.10	23.00	48.00	2.10	3					1868302		0
511200210KMX		2.10	23.00	48.00	2.10	3					1868303		0
511200220KM		2.20	26.00	52.00	2.20	3					1868307		0
511200220KMX		2.20	26.00	52.00	2.20	3					1868308		0
511200230KM		2.30	26.00	52.00	2.30	3					1868312		0
511200230KMX		2.30	26.00	52.00	2.30	3					1868313		0
511200240KM		2.40	29.00	56.00	2.40	3					1868317		0
511200240KMX		2.40	29.00	56.00	2.40	3					1868318		0
511200250KM		2.50	29.00	56.00	2.50	3					1868323		0
511200250KMX		2.50	29.00	56.00	2.50	3					1868324		0
511200260KM		2.60	29.00	56.00	2.60	3					1868328		0
511200260KMX		2.60	29.00	56.00	2.60	3					1868329		0
511200270KM		2.70	32.00	60.00	2.70	3					1868333		0
511200270KMX		2.70	32.00	60.00	2.70	3					1868334		0
511200280KM		2.80	32.00	60.00	2.80	3					1868338		0
511200280KMX		2.80	32.00	60.00	2.80	3					1868339		0
511200290KM		2.90	32.00	60.00	2.90	3					1868344		0
511200290KMX		2.90	32.00	60.00	2.90	3					1868345		0
511200300KM		3.00	32.00	60.00	3.00	3					1868349		0
511200300KMX		3.00	32.00	60.00	3.00	3					1868350		0
511200310KM		3.10	35.00	64.00	3.10	3					1868354		0
511200310KMX		3.10	35.00	64.00	3.10	3					1868355		0
511200320KM		3.20	35.00	64.00	3.20	3					1868359		0
511200320KMX		3.20	35.00	64.00	3.20	3					1868360		0
511200330KM		3.30	35.00	64.00	3.30	3					1868364		0
511200330KMX		3.30	35.00	64.00	3.30	3					1868365		0
511200340KM		3.40	38.00	69.00	3.40	3					1868369		0
511200340KMX		3.40	38.00	69.00	3.40	3					1868370		0
511200350KM		3.50	38.00	69.00	3.50	3					1868374		0
511200350KMX	Y	3.50	38.00	69.00	3.50	3					1868375		0
511200360KM		3.60	38.00	69.00	3.60	3					1868380		0
511200360KMX		3.60	38.00	69.00	3.60	3					1868381		0
511200370KM		3.70	38.00	69.00	3.70	3					1868385		0
511200370KMX		3.70	38.00	69.00	3.70	3					1868386		0
511200380KM		3.80	42.00	74.00	3.80	3					1868390		0
511200380KMX		3.80	42.00	74.00	3.80	3					1868391		0
511200390KM		3.90	42.00	74.00	3.90	3					1868396		0
511200390KMX		3.90	42.00	74.00	3.90	3					1868397		0
511200400KM		4.00	42.00	74.00	4.00	3					1868401		0
511200400KMX		4.00	42.00	74.00	4.00	3					1868402		0
511200410KM		4.10	42.00	74.00	4.10	3					1868408		0
511200410KMX		4.10	42.00	74.00	4.10	3					1868409		0
511200420KM		4.20	42.00	74.00	4.20	3					1868413		0
511200420KMX		4.20	42.00	74.00	4.20	3					1868414		0
511200430KM		4.30	46.00	79.00	4.30	3					1868419		0
511200430KMX		4.30	46.00	79.00	4.30	3					1868420		0
511200440KM		4.40	46.00	79.00	4.40	3					1868424		0
511200440KMX		4.40	46.00	79.00	4.40	3					1868425		0
511200450KM		4.50	46.00	79.00	4.50	3					1868430		0
511200450KMX		4.50	46.00	79.00	4.50	3					1868431		0
511200460KM		4.60	46.00	79.00	4.60	3					1868435		0
511200460KMX		4.60	46.00	79.00	4.60	3					1868436		0
511200470KM		4.70	46.00	79.00	4.70	3					1868440		0
511200470KMX		4.70	46.00	79.00	4.70	3					1868441		0
511200480KM		4.80	51.00	85.00	4.80	3					1868445		0
511200480KMX		4.80	51.00	85.00	4.80	3					1868446		0
511200490KM		4.90	51.00	85.00	4.90	3					1868451		0
511200490KMX		4.90	51.00	85.00	4.90	3					1868452		0
511200500KM		5.00	51.00	85.00	5.00	3					1868456		0
511200500KMX		5.00	51.00	85.00	5.00	3					1868457		0
511200510KM		5.10	51.00	85.00	5.10	3					1868462		0
511200510KMX		5.10	51.00	85.00	5.10	3					1868463		0
511200530KM		5.30	51.00	85.00	5.30	3					1868472		0
511200530KMX		5.30	51.00	85.00	5.30	3					1868473		0
511200540KM		5.40	56.00	92.00	5.40	3					1868477		0
511200540KMX		5.40	56.00	92.00	5.40	3					1868478		0
511200550KM		5.50	56.00	92.00	5.50	3					1868482		0
511200550KMX		5.50	56.00	92.00	5.50	3					1868483		0
511200560KM		5.60	56.00	92.00	5.60	3					1868488		0
511200560KMX	Y	5.60	56.00	92.00	5.60	3					1868489		0
511200570KM		5.70	56.00	92.00	5.70	3					1868493		0
511200570KMX		5.70	56.00	92.00	5.70	3					1868494		0
511200580KM		5.80	56.00	92.00	5.80	3					1868498		0
511200580KMX		5.80	56.00	92.00	5.80	3					1868499		0
511200590KM		5.90	56.00	92.00	5.90	3					1868503		0
511200590KMX		5.90	56.00	92.00	5.90	3					1868504		0
511200600KM		6.00	56.00	92.00	6.00	3					1868508		0
511200600KMX		6.00	56.00	92.00	6.00	3					1868509		0
511200610KM		6.10	62.00	100.00	6.10	3					1868515		0
511200610KMX		6.10	62.00	100.00	6.10	3					1868516		0
511200620KM		6.20	62.00	100.00	6.20	3					1868520		0
511200620KMX		6.20	62.00	100.00	6.20	3					1868521		0
511200630KM		6.30	62.00	100.00	6.30	3					1868526		0
511200630KMX		6.30	62.00	100.00	6.30	3					1868527		0
511200640KM		6.40	62.00	100.00	6.40	3					1868531		0
511200640KMX		6.40	62.00	100.00	6.40	3					1868532		0
511200650KM		6.50	62.00	100.00	6.50	3					1868536		0
511200650KMX		6.50	62.00	100.00	6.50	3					1868537		0
511200660KM		6.60	62.00	100.00	6.60	3					1868542		0
511200660KMX		6.60	62.00	100.00	6.60	3					1868543		0
511200670KM		6.70	62.00	100.00	6.70	3					1868547		0
511200670KMX		6.70	62.00	100.00	6.70	3					1868548		0
511200680KM		6.80	68.00	108.00	6.80	3					1868552		0
511200680KMX		6.80	68.00	108.00	6.80	3					1868553		0
511200690KM		6.90	68.00	108.00	6.90	3					1868557		0
511200690KMX		6.90	68.00	108.00	6.90	3					1868558		0
511200700KM		7.00	68.00	108.00	7.00	3					1868562		0
511200700KMX		7.00	68.00	108.00	7.00	3					1868563		0
511200710KM		7.10	68.00	108.00	7.10	3					1868568		0
511200710KMX		7.10	68.00	108.00	7.10	3					1868569		0
511200720KM		7.20	68.00	108.00	7.20	3					1868573		0
511200720KMX		7.20	68.00	108.00	7.20	3					1868574		0
511200730KM		7.30	68.00	108.00	7.30	3					1868578		0
511200730KMX		7.30	68.00	108.00	7.30	3					1868579		0
511200740KM		7.40	68.00	108.00	7.40	3					1868583		0
511200740KMX		7.40	68.00	108.00	7.40	3					1868584		0
511200750KM		7.50	68.00	108.00	7.50	3					1868588		0
511200750KMX		7.50	68.00	108.00	7.50	3					1868589		0
511200760KM		7.60	73.00	115.00	7.60	3					1868593		0
511200760KMX		7.60	73.00	115.00	7.60	3					1868594		0
511200770KM		7.70	73.00	115.00	7.70	3					1868598		0
511200770KMX		7.70	73.00	115.00	7.70	3					1868599		0
511200780KM		7.80	73.00	115.00	7.80	3					1868603		0
511200780KMX		7.80	73.00	115.00	7.80	3					1868604		0
511200790KM		7.90	73.00	115.00	7.90	3					1868610		0
511200790KMX		7.90	73.00	115.00	7.90	3					1868611		0
511200800KM		8.00	73.00	115.00	8.00	3					1868616		0
511200800KMX		8.00	73.00	115.00	8.00	3					1868617		0
511200810KM		8.10	73.00	115.00	8.10	3					1868622		0
511200810KMX		8.10	73.00	115.00	8.10	3					1868623		0
511200820KM		8.20	73.00	115.00	8.20	3					1868627		0
511200820KMX		8.20	73.00	115.00	8.20	3					1868628		0
511200830KM		8.30	73.00	115.00	8.30	3					1868632		0
511200830KMX		8.30	73.00	115.00	8.30	3					1868633		0
511200840KM		8.40	73.00	115.00	8.40	3					1868637		0
511200840KMX		8.40	73.00	115.00	8.40	3					1868638		0
511200850KM		8.50	73.00	115.00	8.50	3					1868642		0
511200850KMX		8.50	73.00	115.00	8.50	3					1868643		0
511200860KM		8.60	79.00	123.00	8.60	3					1868647		0
511200860KMX		8.60	79.00	123.00	8.60	3					1868648		0
511200870KM		8.70	79.00	123.00	8.70	3					1868652		0
511200870KMX		8.70	79.00	123.00	8.70	3					1868653		0
511200880KM		8.80	79.00	123.00	8.80	3					1868657		0
511200880KMX		8.80	79.00	123.00	8.80	3					1868658		0
511200890KM		8.90	79.00	123.00	8.90	3					1868662		0
511200890KMX		8.90	79.00	123.00	8.90	3					1868663		0
511200900KM		9.00	79.00	123.00	9.00	3					1868667		0
511200900KMX		9.00	79.00	123.00	9.00	3					1868668		0
511200910KM		9.10	79.00	123.00	9.10	3					1868672		0
511200910KMX		9.10	79.00	123.00	9.10	3					1868673		0
511200920KM		9.20	79.00	123.00	9.20	3					1868677		0
511200920KMX		9.20	79.00	123.00	9.20	3					1868678		0
511200930KM		9.30	79.00	123.00	9.30	3					1868682		0
511200930KMX		9.30	79.00	123.00	9.30	3					1868683		0
511200940KM		9.40	79.00	123.00	9.40	3					1868687		0
511200940KMX		9.40	79.00	123.00	9.40	3					1868688		0
511200950KM		9.50	79.00	123.00	9.50	3					1868692		0
511200950KMX		9.50	79.00	123.00	9.50	3					1868693		0
511200960KM		9.60	85.00	131.00	9.60	3					1868698		0
511200960KMX		9.60	85.00	131.00	9.60	3					1868699		0
511200970KM		9.70	85.00	131.00	9.70	3					1868703		0
511200970KMX		9.70	85.00	131.00	9.70	3					1868704		0
511200980KM		9.80	85.00	131.00	9.80	3					1868708		0
511200980KMX		9.80	85.00	131.00	9.80	3					1868709		0
511200990KM		9.90	85.00	131.00	9.90	3					1868714		0
511200990KMX		9.90	85.00	131.00	9.90	3					1868715		0
511201000KM		10.00	85.00	131.00	10.00	3					1868719		0
511201000KMX		10.00	85.00	131.00	10.00	3					1868720		0
511201010KM		10.10	85.00	131.00	10.10	3					1868725		0
511201010KMX		10.10	85.00	131.00	10.10	3					1868726		0
511201020KM		10.20	85.00	131.00	10.20	3					1868733		0
511201020KMX		10.20	85.00	131.00	10.20	3					1868734		0
511201030KM		10.30	85.00	131.00	10.30	3					1868739		0
511201030KMX		10.30	85.00	131.00	10.30	3					1868740		0
511201040KM		10.40	85.00	131.00	10.40	3					1868745		0
511201040KMX		10.40	85.00	131.00	10.40	3					1868746		0
511201050KM		10.50	85.00	131.00	10.50	3					1868750		0
511201050KMX		10.50	85.00	131.00	10.50	3					1868751		0
511201060KM		10.60	85.00	131.00	10.60	3					1868755		0
511201060KMX		10.60	85.00	131.00	10.60	3					1868756		0
511201070KM		10.70	92.00	140.00	10.70	3					1868760		0
511201070KMX		10.70	92.00	140.00	10.70	3					1868761		0
511201080KM		10.80	92.00	140.00	10.80	3					1868765		0
511201080KMX		10.80	92.00	140.00	10.80	3					1868766		0
511201090KM		10.90	92.00	140.00	10.90	3					1868770		0
511201090KMX		10.90	92.00	140.00	10.90	3					1868771		0
511201100KM		11.00	92.00	140.00	11.00	3					1868775		0
511201100KMX		11.00	92.00	140.00	11.00	3					1868776		0
511201110KM		11.10	92.00	140.00	11.10	3					1868781		0
511201110KMX		11.10	92.00	140.00	11.10	3					1868782		0
511201120KM		11.20	92.00	140.00	11.20	3					1868786		0
511201120KMX		11.20	92.00	140.00	11.20	3					1868787		0
511201130KM		11.30	92.00	140.00	11.30	3					1868791		0
511201130KMX		11.30	92.00	140.00	11.30	3					1868792		0
511201140KM		11.40	92.00	140.00	11.40	3					1868796		0
511201140KMX		11.40	92.00	140.00	11.40	3					1868797		0
511201150KM		11.50	92.00	140.00	11.50	3					1868801		0
511201150KMX		11.50	92.00	140.00	11.50	3					1868802		0
511201160KM		11.60	92.00	140.00	11.60	3					1868806		0
511201160KMX		11.60	92.00	140.00	11.60	3					1868807		0
511201170KM		11.70	92.00	140.00	11.70	3					1868811		0
511201170KMX		11.70	92.00	140.00	11.70	3					1868812		0
511201180KM		11.80	92.00	140.00	11.80	3					1868816		0
511201180KMX		11.80	92.00	140.00	11.80	3					1868817		0
511201190KM		11.90	99.00	149.00	11.90	3					1868824		0
511201190KMX		11.90	99.00	149.00	11.90	3					1868825		0
511201200KM		12.00	99.00	149.00	12.00	3					1868830		0
511201200KMX		12.00	99.00	149.00	12.00	3					1868831		0
511201250KM		12.50	99.00	149.00	12.50	3					1868836		0
511201250KMX		12.50	99.00	149.00	12.50	3					1868837		0
511201300KM		13.00	99.00	149.00	13.00	3					1868841		0
511201300KMX		13.00	99.00	149.00	13.00	3					1868842		0
511201350KM		13.50	106.00	158.00	13.50	3					1868847		0
511201350KMX		13.50	106.00	158.00	13.50	3					1868848		0
511201400KM		14.00	106.00	158.00	14.00	3					1868853		0
511201400KMX		14.00	106.00	158.00	14.00	3					1868854		0
511201450KM		14.50	112.00	167.00	14.50	3					1868859		0
511201450KMX		14.50	112.00	167.00	14.50	3					1868860		0
511201500KM		15.00	112.00	167.00	15.00	3					1868864		0
511201500KMX		15.00	112.00	167.00	15.00	3					1868865		0
511201550KM		15.50	117.00	175.00	15.50	3					1868869		0
511201550KMX		15.50	117.00	175.00	15.50	3					1868870		0
511201600KM		16.00	117.00	175.00	16.00	3					1868874		0
511201600KMX		16.00	117.00	175.00	16.00	3					1868875		0
511201700KM		17.00	122.00	181.00	17.00	3					1868881		0
511201700KMX		17.00	122.00	181.00	17.00	3					1868882		0
511201800KM		18.00	127.00	188.00	18.00	3					1868886		0
511201800KMX		18.00	127.00	188.00	18.00	3					1868887		0
511201900KM		19.00	132.00	195.00	19.00	3					1868891		0
511201900KMX		19.00	132.00	195.00	19.00	3					1868892		0
511202000KM		20.00	137.00	202.00	20.00	3					1868897		0
511202000KMX		20.00	137.00	202.00	20.00	3					1868898		0

Click here for the Cutting Parameters for this family

Site Map

Milling Hole Making Reaming

Any use of the UOP e-catalogue and any transactions which may be performed as a result of using this program are subject to UOP’s General Terms of Sale
Privacy Policy Cookie Policy
© 2026 UOP S.p.A. Manufacturer of Metalworking Tools (UOP.it) All Rights Reserved
