UOP Cutting Tools - Metal Working Tools - Hole Making -

Cutting Parameters
for this family

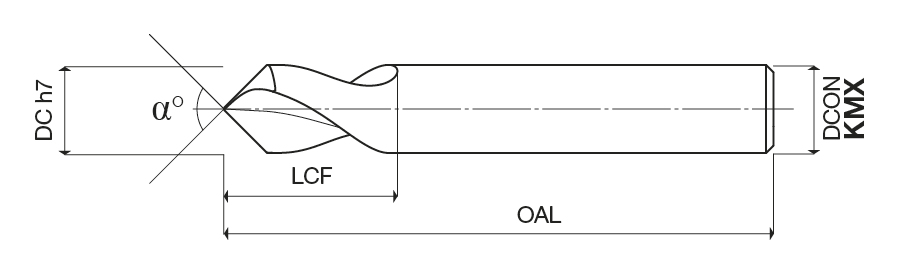

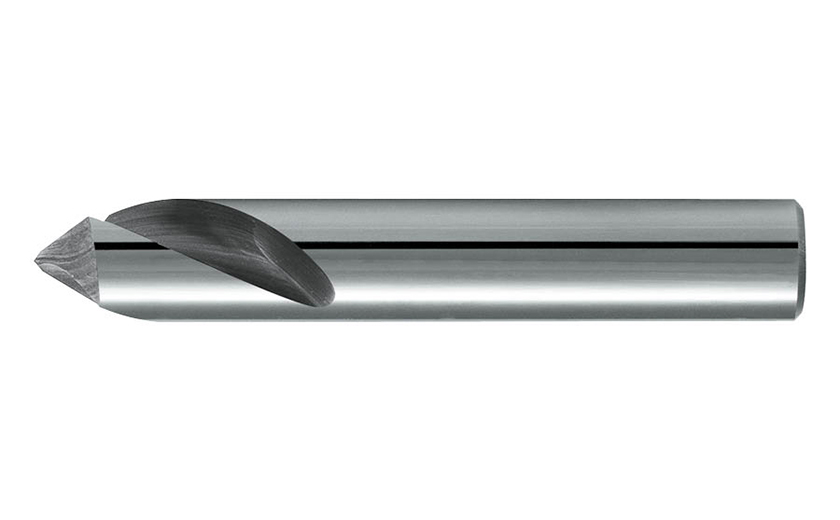

52105 : CNC drills

Designation	DC	a°	APMX	OAL	DCONMS	NOF	GICAT
521050500KM	5.00	90	10.00	50.00	5.00	2	1868902
521050500KMX	5.00	90	10.00	50.00	5.00	2	1868903
521050600KM	6.00	90	16.00	50.00	6.00	2	1868919
521050600KMX	6.00	90	16.00	50.00	6.00	2	1868920
521050800KM	8.00	90	20.00	60.00	8.00	2	1868942
521050800KMX	8.00	90	20.00	60.00	8.00	2	1868943
521051000KM	10.00	90	22.00	70.00	10.00	2	1868964
521051000KMX	10.00	90	22.00	70.00	10.00	2	1868965
521051200KM	12.00	90	22.00	75.00	12.00	2	1868982
521051200KMX	12.00	90	22.00	75.00	12.00	2	1868983
521051600KM	16.00	90	25.00	90.00	16.00	2	1869011
521051600KMX	16.00	90	25.00	90.00	16.00	2	1869012
521052000KM	20.00	90	28.00	100.00	20.00	2	1869031
521052000KMX	20.00	90	28.00	100.00	20.00	2	1869032

Click here for the Cutting Parameters for this family
