Reaming
Main Application

Cutting Parameters
for this family

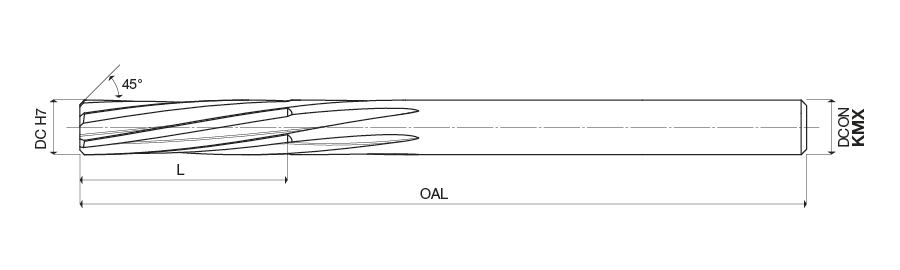

56105 : machine reamers

SKIN UP

LAMBDA 30/10

UNI DIN 212D ISO

NORMAL

Designation	GICODE	DC	APMX	OAL	HELIX	NOF							GICAT	GIREM	giic
561050100KM		1.00	5.00	37.00	30.0	3							1869761		0
561050100KMX		1.00	5.00	37.00	30.0	3							1869762		0
561050110KM		1.10	7.00	40.00	30.0	3							1869772		0
561050110KMX		1.10	7.00	40.00	30.0	3							1869773		0
561050120KM		1.20	7.00	40.00	30.0	3							1869780		0
561050120KMX		1.20	7.00	40.00	30.0	3							1869781		0
561050130KM		1.30	7.00	40.00	30.0	3							1869790		0
561050130KMX		1.30	7.00	40.00	30.0	3							1869791		0
561050140KM		1.40	8.00	40.00	30.0	3							1869798		0
561050140KMX		1.40	8.00	40.00	30.0	3							1869799		0
561050150KM		1.50	8.00	40.00	30.0	3							1869808		0
561050150KMX		1.50	8.00	40.00	30.0	3							1869809		0
561050160KM		1.60	9.00	43.00	30.0	3							1869819		0
561050160KMX		1.60	9.00	43.00	30.0	3							1869820		0
561050170KM		1.70	9.00	43.00	30.0	3							1869827		0
561050170KMX		1.70	9.00	43.00	30.0	3							1869828		0
561050180KM		1.80	10.00	46.00	30.0	3							1869835		0
561050180KMX		1.80	10.00	46.00	30.0	3							1869836		0
561050190KM		1.90	10.00	46.00	30.0	3							1869843		0
561050190KMX		1.90	10.00	46.00	30.0	3							1869844		0
561050200KM		2.00	11.00	49.00	10.0	5							1869851		0
561050200KMX		2.00	11.00	49.00	10.0	5							1869852		0
561050210KM		2.10	11.00	49.00	10.0	5							1869866		0
561050210KMX		2.10	11.00	49.00	10.0	5							1869867		0
561050220KM		2.20	12.00	53.00	10.0	5							1869877		0
561050220KMX		2.20	12.00	53.00	10.0	5							1869878		0
561050230KM		2.30	12.00	53.00	10.0	5							1869887		0
561050230KMX		2.30	12.00	53.00	10.0	5							1869888		0
561050240KM		2.40	14.00	57.00	10.0	5							1869894		0
561050240KMX		2.40	14.00	57.00	10.0	5							1869895		0
561050250KM		2.50	14.00	57.00	10.0	5							1869902		0
561050250KMX		2.50	14.00	57.00	10.0	5							1869903		0
561050260KM		2.60	14.00	57.00	10.0	5							1869918		0
561050260KMX		2.60	14.00	57.00	10.0	5							1869919		0
561050270KM		2.70	15.00	61.00	10.0	5							1869928		0
561050270KMX		2.70	15.00	61.00	10.0	5							1869929		0
561050280KM		2.80	15.00	61.00	10.0	5							1869937		0
561050280KMX		2.80	15.00	61.00	10.0	5							1869938		0
561050290KM		2.90	15.00	61.00	10.0	5							1869945		0
561050290KMX		2.90	15.00	61.00	10.0	5							1869946		0
561050300KM		3.00	15.00	61.00	10.0	5							1869953		0
561050300KMX		3.00	15.00	61.00	10.0	5							1869954		0
561050310KM		3.10	16.00	65.00	10.0	5							1869972		0
561050310KMX		3.10	16.00	65.00	10.0	5							1869973		0
561050320KM		3.20	16.00	65.00	10.0	5							1869984		0
561050320KMX		3.20	16.00	65.00	10.0	5							1869985		0
561050330KM		3.30	16.00	65.00	10.0	5							1869994		0
561050330KMX		3.30	16.00	65.00	10.0	5							1869995		0
561050340KM		3.40	18.00	70.00	10.0	5							1870003		0
561050340KMX		3.40	18.00	70.00	10.0	5							1870004		0
561050350KM		3.50	18.00	70.00	10.0	5							1870010		0
561050350KMX		3.50	18.00	70.00	10.0	5							1870011		0
561050360KM		3.60	18.00	70.00	10.0	5							1870023		0
561050360KMX		3.60	18.00	70.00	10.0	5							1870024		0
561050370KM		3.70	18.00	70.00	10.0	5							1870030		0
561050370KMX		3.70	18.00	70.00	10.0	5							1870031		0
561050380KM		3.80	19.00	75.00	10.0	5							1870039		0
561050380KMX		3.80	19.00	75.00	10.0	5							1870040		0
561050390KM		3.90	19.00	75.00	10.0	5							1870048		0
561050390KMX		3.90	19.00	75.00	10.0	5							1870049		0
561050400KM		4.00	19.00	75.00	10.0	5							1870057		0
561050400KMX		4.00	19.00	75.00	10.0	5							1870058		0
561050410KM		4.10	19.00	75.00	10.0	5							1870076		0
561050410KMX		4.10	19.00	75.00	10.0	5							1870077		0
561050420KM		4.20	19.00	75.00	10.0	5							1870084		0
561050420KMX		4.20	19.00	75.00	10.0	5							1870085		0
561050430KM		4.30	21.00	80.00	10.0	5							1870097		0
561050430KMX		4.30	21.00	80.00	10.0	5							1870098		0
561050440KM		4.40	21.00	80.00	10.0	5							1870105		0
561050440KMX		4.40	21.00	80.00	10.0	5							1870106		0
561050450KM		4.50	21.00	80.00	10.0	5							1870113		0
561050450KMX		4.50	21.00	80.00	10.0	5							1870114		0
561050460KM		4.60	21.00	80.00	10.0	5							1870125		0
561050460KMX		4.60	21.00	80.00	10.0	5							1870126		0
561050470KM		4.70	21.00	80.00	10.0	5							1870133		0
561050470KMX		4.70	21.00	80.00	10.0	5							1870134		0
561050480KM		4.80	23.00	86.00	10.0	5							1870142		0
561050480KMX		4.80	23.00	86.00	10.0	5							1870143		0
561050490KM		4.90	23.00	86.00	10.0	5							1870149		0
561050490KMX		4.90	23.00	86.00	10.0	5							1870150		0
561050500KM		5.00	23.00	86.00	10.0	5							1870156		0
561050500KMX		5.00	23.00	86.00	10.0	5							1870157		0
561050510KM		5.10	23.00	86.00	10.0	5							1870174		0
561050510KMX		5.10	23.00	86.00	10.0	5							1870175		0
561050520KM		5.20	23.00	86.00	10.0	5							1870183		0
561050520KMX		5.20	23.00	86.00	10.0	5							1870184		0
561050530KM		5.30	26.00	93.00	10.0	5							1870194		0
561050530KMX		5.30	26.00	93.00	10.0	5							1870195		0
561050540KM		5.40	26.00	93.00	10.0	6							1870202		0
561050540KMX		5.40	26.00	93.00	10.0	6							1870203		0
561050550KM		5.50	26.00	93.00	10.0	6							1870211		0
561050550KMX		5.50	26.00	93.00	10.0	6							1870212		0
561050560KM		5.60	26.00	93.00	10.0	6							1870225		0
561050560KMX		5.60	26.00	93.00	10.0	6							1870226		0
561050570KM		5.70	26.00	93.00	10.0	6							1870234		0
561050570KMX		5.70	26.00	93.00	10.0	6							1870235		0
561050580KM		5.80	26.00	93.00	10.0	6							1870241		0
561050580KMX		5.80	26.00	93.00	10.0	6							1870242		0
561050590KM		5.90	26.00	93.00	10.0	6							1870248		0
561050590KMX		5.90	26.00	93.00	10.0	6							1870249		0
561050600KM		6.00	26.00	93.00	10.0	6							1870256		0
561050600KMX		6.00	26.00	93.00	10.0	6							1870257		0
561050610KM		6.10	28.00	101.00	10.0	6							1870277		0
561050610KMX		6.10	28.00	101.00	10.0	6							1870278		0
561050620KM		6.20	28.00	101.00	10.0	6							1870288		0
561050620KMX		6.20	28.00	101.00	10.0	6							1870289		0
561050630KM		6.30	28.00	101.00	10.0	6							1870299		0
561050630KMX		6.30	28.00	101.00	10.0	6							1870300		0
561050640KM		6.40	28.00	101.00	10.0	6							1870306		0
561050640KMX		6.40	28.00	101.00	10.0	6							1870307		0
561050650KM		6.50	28.00	101.00	10.0	6							1870313		0
561050650KMX		6.50	28.00	101.00	10.0	6							1870314		0
561050660KM		6.60	28.00	101.00	10.0	6							1870324		0
561050660KMX		6.60	28.00	101.00	10.0	6							1870325		0
561050670KM		6.70	31.00	109.00	10.0	6							1870332		0
561050670KMX		6.70	31.00	109.00	10.0	6							1870333		0
561050680KM		6.80	31.00	109.00	10.0	6							1870339		0
561050680KMX		6.80	31.00	109.00	10.0	6							1870340		0
561050690KM		6.90	31.00	109.00	10.0	6							1870347		0
561050690KMX		6.90	31.00	109.00	10.0	6							1870348		0
561050700KM		7.00	31.00	109.00	10.0	6							1870354		0
561050700KMX		7.00	31.00	109.00	10.0	6							1870355		0
561050710KM		7.10	31.00	109.00	10.0	6							1870370		0
561050710KMX		7.10	31.00	109.00	10.0	6							1870371		0
561050720KM		7.20	31.00	109.00	10.0	6							1870377		0
561050720KMX		7.20	31.00	109.00	10.0	6							1870378		0
561050730KM		7.30	31.00	109.00	10.0	6							1870385		0
561050730KMX		7.30	31.00	109.00	10.0	6							1870386		0
561050740KM		7.40	31.00	109.00	10.0	6							1870393		0
561050740KMX		7.40	31.00	109.00	10.0	6							1870394		0
561050750KM		7.50	33.00	117.00	10.0	6							1870401		0
561050750KMX		7.50	33.00	117.00	10.0	6							1870402		0
561050760KM		7.60	33.00	117.00	10.0	6							1870411		0
561050760KMX		7.60	33.00	117.00	10.0	6							1870412		0
561050770KM		7.70	33.00	117.00	10.0	6							1870420		0
561050770KMX		7.70	33.00	117.00	10.0	6							1870421		0
561050780KM		7.80	33.00	117.00	10.0	6							1870427		0
561050780KMX		7.80	33.00	117.00	10.0	6							1870428		0
561050790KM		7.90	33.00	117.00	10.0	6							1870435		0
561050790KMX		7.90	33.00	117.00	10.0	6							1870436		0
561050800KM		8.00	33.00	117.00	10.0	6							1870442		0
561050800KMX		8.00	33.00	117.00	10.0	6							1870443		0
561050810KM		8.10	33.00	117.00	10.0	6							1870463		0
561050810KMX		8.10	33.00	117.00	10.0	6							1870464		0
561050820KM		8.20	33.00	117.00	10.0	6							1870475		0
561050820KMX		8.20	33.00	117.00	10.0	6							1870476		0
561050830KM		8.30	33.00	117.00	10.0	6							1870486		0
561050830KMX		8.30	33.00	117.00	10.0	6							1870487		0
561050840KM		8.40	33.00	117.00	10.0	6							1870494		0
561050840KMX		8.40	33.00	117.00	10.0	6							1870495		0
561050850KM		8.50	36.00	125.00	10.0	6							1870503		0
561050850KMX		8.50	36.00	125.00	10.0	6							1870504		0
561050860KM		8.60	36.00	125.00	10.0	6							1870516		0
561050860KMX		8.60	36.00	125.00	10.0	6							1870517		0
561050870KM		8.70	36.00	125.00	10.0	6							1870523		0
561050870KMX		8.70	36.00	125.00	10.0	6							1870524		0
561050880KM		8.80	36.00	125.00	10.0	6							1870530		0
561050880KMX		8.80	36.00	125.00	10.0	6							1870531		0
561050890KM		8.90	36.00	125.00	10.0	6							1870537		0
561050890KMX		8.90	36.00	125.00	10.0	6							1870538		0
561050900KM		9.00	36.00	125.00	10.0	6							1870544		0
561050900KMX		9.00	36.00	125.00	10.0	6							1870545		0
561050910KM		9.10	36.00	125.00	10.0	6							1870559		0
561050910KMX		9.10	36.00	125.00	10.0	6							1870560		0
561050920KM		9.20	36.00	125.00	10.0	6							1870568		0
561050920KMX		9.20	36.00	125.00	10.0	6							1870569		0
561050930KM		9.30	36.00	125.00	10.0	6							1870576		0
561050930KMX		9.30	36.00	125.00	10.0	6							1870577		0
561050940KM		9.40	36.00	125.00	10.0	6							1870583		0
561050940KMX		9.40	36.00	125.00	10.0	6							1870584		0
561050950KM		9.50	38.00	133.00	10.0	6							1870590		0
561050950KMX		9.50	38.00	133.00	10.0	6							1870591		0
561050960KM		9.60	38.00	133.00	10.0	6							1870600		0
561050960KMX		9.60	38.00	133.00	10.0	6							1870601		0
561050970KM		9.70	38.00	133.00	10.0	6							1870607		0
561050970KMX		9.70	38.00	133.00	10.0	6							1870608		0
561050980KM		9.80	38.00	133.00	10.0	6							1870615		0
561050980KMX		9.80	38.00	133.00	10.0	6							1870616		0
561050990KM		9.90	38.00	133.00	10.0	6							1870622		0
561050990KMX		9.90	38.00	133.00	10.0	6							1870623		0
561051000KM		10.00	38.00	133.00	10.0	6							1870629		0
561051000KMX		10.00	38.00	133.00	10.0	6							1870630		0
561051050KM		10.50	41.00	142.00	10.0	7							1870649		0
561051050KMX		10.50	41.00	142.00	10.0	7							1870650		0
561051100KM		11.00	41.00	142.00	10.0	7							1870658		0
561051100KMX		11.00	41.00	142.00	10.0	7							1870659		0
561051150KM		11.50	44.00	151.00	10.0	7							1870671		0
561051150KMX		11.50	44.00	151.00	10.0	7							1870672		0
561051200KM		12.00	44.00	151.00	10.0	7							1870680		0
561051200KMX		12.00	44.00	151.00	10.0	7							1870681		0
561051250KM		12.50	44.00	151.00	10.0	7							1870698		0
561051250KMX		12.50	44.00	151.00	10.0	7							1870699		0
561051300KM		13.00	44.00	151.00	10.0	7							1870708		0
561051300KMX		13.00	44.00	151.00	10.0	7							1870709		0
561051350KM		13.50	47.00	160.00	10.0	7							1870716		0
561051350KMX		13.50	47.00	160.00	10.0	7							1870717		0
561051400KM		14.00	47.00	160.00	10.0	7							1870725		0
561051400KMX		14.00	47.00	160.00	10.0	7							1870726		0
561051450KM		14.50	50.00	162.00	10.0	7							1870742		0
561051450KMX		14.50	50.00	162.00	10.0	7							1870743		0
561051500KM		15.00	50.00	162.00	10.0	7							1870750		0
561051500KMX		15.00	50.00	162.00	10.0	7							1870751		0
561051550KM		15.50	52.00	170.00	10.0	7							1870757		0
561051550KMX		15.50	52.00	170.00	10.0	7							1870758		0
561051600KM		16.00	52.00	170.00	10.0	7							1870764		0
561051600KMX		16.00	52.00	170.00	10.0	7							1870765		0

Click here for the Cutting Parameters for this family

Site Map

Milling Hole Making Reaming

Any use of the UOP e-catalogue and any transactions which may be performed as a result of using this program are subject to UOP’s General Terms of Sale
Privacy Policy Cookie Policy
© 2026 UOP S.p.A. Manufacturer of Metalworking Tools (UOP.it) All Rights Reserved
