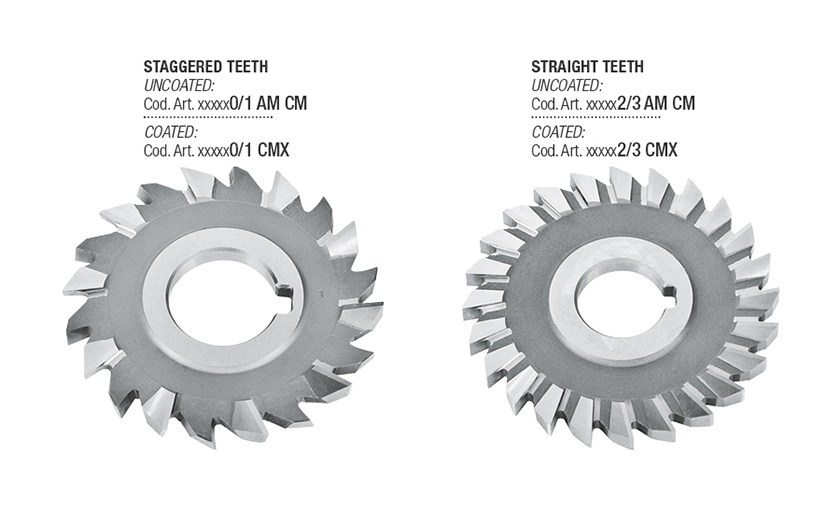

04105 : Side and face milling cutters Staggered teeth

SKIN

UNI 3905A DIN 885A ISO 2587

UNI 3905B DIN 885B ISO 2587

Z 16 TO 38

Z 18 TO 46

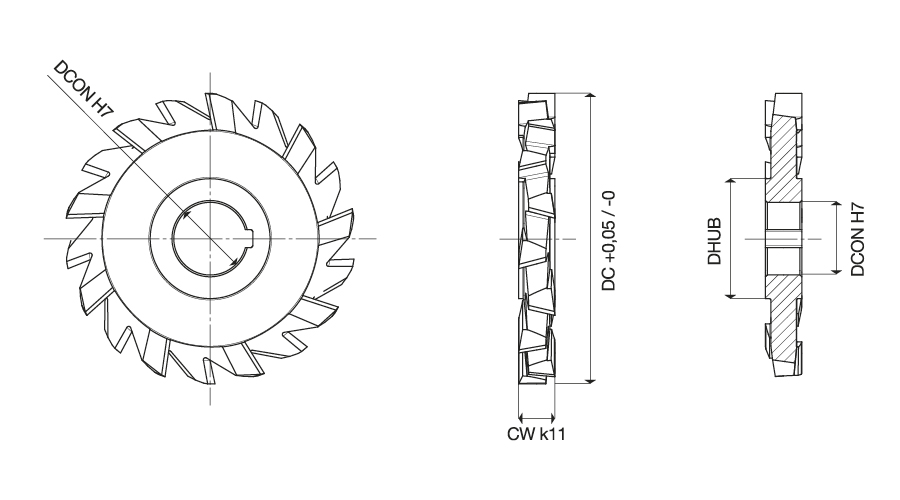

Designation	GICODE	DC	CW	DHUB	DCONMS	HELIX	NOF	GICAT	GIREM	giic
041051040CM		50.00	4.00	26.00	16.00	20.0	16	1802744		0
041051040CMX		50.00	4.00	26.00	16.00	20.0	16	1802745		0
041051050CM		50.00	5.00	26.00	16.00	20.0	16	1802761		0
041051050CMX		50.00	5.00	26.00	16.00	20.0	16	1802762		0
041051060CM		50.00	6.00	26.00	16.00	20.0	16	1802778		0
041051060CMX		50.00	6.00	26.00	16.00	20.0	16	1802779		0
041051070CM		50.00	7.00	26.00	16.00	15.0	16	1802798		0
041051070CMX		50.00	7.00	26.00	16.00	15.0	16	1802799		0
041051080CM		50.00	8.00	26.00	16.00	15.0	16	1802814		0
041051080CMX		50.00	8.00	26.00	16.00	15.0	16	1802815		0
041051090CM		50.00	9.00	26.00	16.00	15.0	16	1802831		0
041051090CMX		50.00	9.00	26.00	16.00	15.0	16	1802832		0
041051100CM		50.00	10.00	26.00	16.00	15.0	16	1802844		0
041051100CMX		50.00	10.00	26.00	16.00	15.0	16	1802845		0
041052040CM		63.00	4.00	33.00	22.00	20.0	18	1802859		0
041052040CMX		63.00	4.00	33.00	22.00	20.0	18	1802860		0
041052050CM		63.00	5.00	33.00	22.00	15.0	18	1802879		0
041052050CMX		63.00	5.00	33.00	22.00	15.0	18	1802880		0
041052060CM		63.00	6.00	33.00	22.00	15.0	18	1802899		0
041052060CMX		63.00	6.00	33.00	22.00	15.0	18	1802900		0
041052070CM		63.00	7.00	33.00	22.00	15.0	18	1802915		0
041052070CMX		63.00	7.00	33.00	22.00	15.0	18	1802916		0
041052080CM		63.00	8.00	33.00	22.00	15.0	18	1802929		0
041052080CMX		63.00	8.00	33.00	22.00	15.0	18	1802930		0
041052090CM		63.00	9.00	33.00	22.00	15.0	18	1802946		0
041052090CMX		63.00	9.00	33.00	22.00	15.0	18	1802947		0
041052100CM		63.00	10.00	33.00	22.00	15.0	18	1802959		0
041052100CMX		63.00	10.00	33.00	22.00	15.0	18	1802960		0
041052120CM		63.00	12.00	33.00	22.00	10.0	18	1802975		0
041052120CMX		63.00	12.00	33.00	22.00	10.0	18	1802976		0
041052140CM		63.00	14.00	33.00	22.00	10.0	18	1802988		0
041052140CMX		63.00	14.00	33.00	22.00	10.0	18	1802989		0
041052160CM		63.00	16.00	33.00	22.00	10.0	16	1803003		0
041052160CMX		63.00	16.00	33.00	22.00	10.0	16	1803004		0
041052180CM		63.00	18.00	33.00	22.00	10.0	16	1803015		0
041052180CMX		63.00	18.00	33.00	22.00	10.0	16	1803016		0
041052200CM		63.00	20.00	33.00	22.00	10.0	16	1803027		0
041052200CMX		63.00	20.00	33.00	22.00	10.0	16	1803028		0
041053053CM		80.00	0.00	0.00	0.00	0.0	24	1803103		0
041053040CM		80.00	4.00	36.00	22.00	20.0	20	1803040		0
041053040CMX		80.00	4.00	36.00	22.00	20.0	20	1803041		0
041053041CM		80.00	4.00	40.00	27.00	15.0	20	1803050		0
041053041CMX		80.00	4.00	40.00	27.00	15.0	20	1803051		0
041053042CM		80.00	4.00	36.00	22.00	0.0	24	1803058		0
041053050CM		80.00	5.00	36.00	22.00	15.0	20	1803073		0
041053050CMX		80.00	5.00	36.00	22.00	15.0	20	1803074		0
041053051CM		80.00	5.00	40.00	27.00	15.0	20	1803083		0
041053051CMX		80.00	5.00	40.00	27.00	15.0	20	1803084		0
041053052CM		80.00	5.00	36.00	22.00	0.0	24	1803094		0
041053053AM		80.00	5.00	40.00	27.00	0.0	24	1803100		0
041053060CM		80.00	6.00	36.00	22.00	15.0	20	1803110		0
041053060CMX		80.00	6.00	36.00	22.00	15.0	20	1803111		0
041053061CM		80.00	6.00	40.00	27.00	15.0	20	1803120		0
041053061CMX		80.00	6.00	40.00	27.00	15.0	20	1803121		0
041053062CM		80.00	6.00	36.00	22.00	0.0	24	1803130		0
041053070CM		80.00	7.00	36.00	22.00	15.0	20	1803147		0
041053070CMX	Y	80.00	7.00	36.00	22.00	15.0	20	1803148		0
041053071CM		80.00	7.00	40.00	27.00	15.0	20	1803156		0
041053071CMX		80.00	7.00	40.00	27.00	15.0	20	1803157		0
041053080CM		80.00	8.00	36.00	22.00	15.0	20	1803178		0
041053080CMX		80.00	8.00	36.00	22.00	15.0	20	1803179		0
041053081CM		80.00	8.00	40.00	27.00	15.0	20	1803189		0
041053081CMX		80.00	8.00	40.00	27.00	15.0	20	1803190		0
041053082CM		80.00	8.00	36.00	22.00	0.0	22	1803199		0
041053090CM		80.00	9.00	36.00	22.00	15.0	20	1803215		0
041053090CMX		80.00	9.00	36.00	22.00	15.0	20	1803216		0
041053091CM		80.00	9.00	40.00	27.00	15.0	20	1803224		0
041053091CMX		80.00	9.00	40.00	27.00	15.0	20	1803225		0
041053100CM		80.00	10.00	36.00	22.00	15.0	18	1803246		0
041053100CMX		80.00	10.00	36.00	22.00	15.0	18	1803247		0
041053101CM		80.00	10.00	40.00	27.00	15.0	18	1803255		0
041053101CMX		80.00	10.00	40.00	27.00	15.0	18	1803256		0
041053102CM		80.00	10.00	36.00	22.00	0.0	20	1803265		0
041053120CM		80.00	12.00	36.00	22.00	15.0	18	1803279		0
041053120CMX		80.00	12.00	36.00	22.00	15.0	18	1803280		0
041053121CM		80.00	12.00	40.00	27.00	15.0	18	1803286		0
041053121CMX	Y	80.00	12.00	40.00	27.00	15.0	18	1803287		0
041053140CM		80.00	14.00	36.00	22.00	10.0	18	1803307		0
041053140CMX		80.00	14.00	36.00	22.00	10.0	18	1803308		0
041053141CM		80.00	14.00	40.00	27.00	10.0	18	1803315		0
041053141CMX		80.00	14.00	40.00	27.00	10.0	18	1803316		0
041053160CM		80.00	16.00	36.00	22.00	15.0	18	1803336		0
041053160CMX		80.00	16.00	36.00	22.00	15.0	18	1803337		0
041053161CM		80.00	16.00	40.00	27.00	15.0	18	1803342		0
041053161CMX		80.00	16.00	40.00	27.00	15.0	18	1803343		0
041053180CM		80.00	18.00	36.00	22.00	15.0	18	1803360		0
041053180CMX		80.00	18.00	36.00	22.00	15.0	18	1803361		0
041053181CM		80.00	18.00	40.00	27.00	15.0	18	1803366		0
041053181CMX		80.00	18.00	40.00	27.00	15.0	18	1803367		0
041054252CM		100.00	0.00	0.00	0.00	0.0	20	1803813		0
041054040CM		100.00	4.00	46.00	27.00	15.0	24	1803409		0
041054040CMX		100.00	4.00	46.00	27.00	15.0	24	1803410		0
041054041CM		100.00	4.00	50.00	32.00	15.0	24	1803419		0
041054041CMX		100.00	4.00	50.00	32.00	15.0	24	1803420		0
041054050CM		100.00	5.00	46.00	27.00	15.0	24	1803441		0
041054050CMX		100.00	5.00	46.00	27.00	15.0	24	1803442		0
041054051CM		100.00	5.00	50.00	32.00	15.0	24	1803451		0
041054051CMX		100.00	5.00	50.00	32.00	15.0	24	1803452		0
041054052CM		100.00	5.00	46.00	27.00	0.0	26	1803458		0
041054060CM		100.00	6.00	46.00	27.00	15.0	24	1803472		0
041054060CMX		100.00	6.00	46.00	27.00	15.0	24	1803473		0
041054061CM		100.00	6.00	50.00	32.00	15.0	24	1803482		0
041054061CMX		100.00	6.00	50.00	32.00	15.0	24	1803483		0
041054070CM		100.00	7.00	46.00	27.00	15.0	24	1803504		0
041054070CMX		100.00	7.00	46.00	27.00	15.0	24	1803505		0
041054071CM		100.00	7.00	50.00	32.00	15.0	24	1803513		0
041054071CMX		100.00	7.00	50.00	32.00	15.0	24	1803514		0
041054080CM		100.00	8.00	46.00	27.00	15.0	22	1803532		0
041054080CMX		100.00	8.00	46.00	27.00	15.0	22	1803533		0
041054081CM		100.00	8.00	50.00	32.00	15.0	22	1803541		0
041054081CMX		100.00	8.00	50.00	32.00	15.0	22	1803542		0
041054090CM		100.00	9.00	46.00	27.00	15.0	22	1803566		0
041054090CMX		100.00	9.00	46.00	27.00	15.0	22	1803567		0
041054091CM		100.00	9.00	50.00	32.00	15.0	22	1803572		0
041054091CMX		100.00	9.00	50.00	32.00	15.0	22	1803573		0
041054100CM		100.00	10.00	46.00	27.00	15.0	22	1803592		0
041054100CMX		100.00	10.00	46.00	27.00	15.0	22	1803593		0
041054101CM		100.00	10.00	50.00	32.00	15.0	22	1803602		0
041054101CMX		100.00	10.00	50.00	32.00	15.0	22	1803603		0
041054120CM		100.00	12.00	46.00	27.00	15.0	20	1803625		0
041054120CMX		100.00	12.00	46.00	27.00	15.0	20	1803626		0
041054121CM		100.00	12.00	50.00	32.00	15.0	20	1803632		0
041054121CMX		100.00	12.00	50.00	32.00	15.0	20	1803633		0
041054140CM		100.00	14.00	46.00	27.00	15.0	20	1803652		0
041054140CMX		100.00	14.00	46.00	27.00	15.0	20	1803653		0
041054141CM		100.00	14.00	50.00	32.00	15.0	20	1803658		0
041054141CMX		100.00	14.00	50.00	32.00	15.0	20	1803659		0
041054150CM		100.00	15.00	46.00	27.00	15.0	20	1803676		0
041054150CMX		100.00	15.00	46.00	27.00	15.0	20	1803677		0
041054151CM		100.00	15.00	50.00	32.00	15.0	20	1803683		0
041054151CMX		100.00	15.00	50.00	32.00	15.0	20	1803684		0
041054160CM		100.00	16.00	46.00	27.00	15.0	20	1803703		0
041054160CMX		100.00	16.00	46.00	27.00	15.0	20	1803704		0
041054161CM		100.00	16.00	50.00	32.00	15.0	20	1803709		0
041054161CMX		100.00	16.00	50.00	32.00	15.0	20	1803710		0
041054180CM		100.00	18.00	46.00	27.00	13.0	20	1803728		0
041054180CMX		100.00	18.00	46.00	27.00	13.0	20	1803729		0
041054181CM		100.00	18.00	50.00	32.00	13.0	20	1803734		0
041054181CMX		100.00	18.00	50.00	32.00	13.0	20	1803735		0
041054200CM		100.00	20.00	46.00	27.00	13.0	20	1803752		0
041054200CMX		100.00	20.00	46.00	27.00	13.0	20	1803753		0
041054201CM	Y	100.00	20.00	50.00	32.00	13.0	20	1803758		0
041054201CMX		100.00	20.00	50.00	32.00	13.0	20	1803759		0
041054220CM		100.00	22.00	46.00	27.00	10.0	20	1803776		0
041054220CMX		100.00	22.00	46.00	27.00	10.0	20	1803777		0
041054221CM		100.00	25.00	50.00	32.00	10.0	20	1803782		0
041054221CMX		100.00	25.00	50.00	32.00	10.0	20	1803783		0
041054250CM		100.00	25.00	46.00	27.00	10.0	20	1803800		0
041054250CMX		100.00	25.00	46.00	27.00	10.0	20	1803801		0
041054251CM		100.00	25.00	50.00	32.00	10.0	20	1803807		0
041054251CMX		100.00	25.00	50.00	32.00	10.0	20	1803808		0
041054252AM		100.00	25.00	46.00	27.00	0.0	20	1803810		0
041055162CM	Y	125.00	0.00	0.00	0.00	0.0	26	1803931		0
041055050CM		125.00	5.00	52.00	32.00	15.0	26	1803825		0
041055050CMX		125.00	5.00	52.00	32.00	15.0	26	1803826		0
041055060CM		125.00	6.00	52.00	32.00	15.0	26	1803843		0
041055060CMX		125.00	6.00	52.00	32.00	15.0	26	1803844		0
041055080CM		125.00	8.00	52.00	32.00	15.0	26	1803863		0
041055080CMX		125.00	8.00	52.00	32.00	15.0	26	1803864		0
041055100CM		125.00	10.00	52.00	32.00	15.0	24	1803879		0
041055100CMX		125.00	10.00	52.00	32.00	15.0	24	1803880		0
041055120CM		125.00	12.00	52.00	32.00	15.0	22	1803896		0
041055120CMX		125.00	12.00	52.00	32.00	15.0	22	1803897		0
041055140CM		125.00	14.00	52.00	32.00	15.0	22	1803912		0
041055140CMX		125.00	14.00	52.00	32.00	15.0	22	1803913		0
041055160CM		125.00	16.00	52.00	32.00	15.0	22	1803925		0
041055160CMX		125.00	16.00	52.00	32.00	15.0	22	1803926		0
041055180CM		125.00	18.00	52.00	32.00	15.0	22	1803937		0
041055180CMX		125.00	18.00	52.00	32.00	15.0	22	1803938		0
041055200CM		125.00	20.00	52.00	32.00	10.0	22	1803949		0
041055200CMX		125.00	20.00	52.00	32.00	10.0	22	1803950		0
041055220CM		125.00	22.00	52.00	32.00	10.0	22	1803962		0
041055220CMX		125.00	22.00	52.00	32.00	10.0	22	1803963		0
041055250CM		125.00	25.00	52.00	32.00	10.0	22	1803974		0
041055250CMX		125.00	25.00	52.00	32.00	10.0	22	1803975		0
041055280CM		125.00	28.00	52.00	32.00	10.0	22	1803986		0
041055280CMX		125.00	28.00	52.00	32.00	10.0	22	1803987		0
041056060CM		160.00	6.00	58.00	32.00	15.0	28	1803998		0
041056060CMX		160.00	6.00	58.00	32.00	15.0	28	1803999		0
041056061CM		160.00	6.00	66.00	40.00	15.0	28	1804007		0
041056061CMX		160.00	6.00	66.00	40.00	15.0	28	1804008		0
041056080CM		160.00	8.00	58.00	32.00	15.0	28	1804026		0
041056080CMX		160.00	8.00	58.00	32.00	15.0	28	1804027		0
041056081CM		160.00	8.00	66.00	40.00	15.0	28	1804035		0
041056081CMX		160.00	8.00	66.00	40.00	15.0	28	1804036		0
041056082CM		160.00	8.00	58.00	32.00	0.0	36	1804042		0
041056100CM		160.00	10.00	58.00	32.00	15.0	26	1804054		0
041056100CMX		160.00	10.00	58.00	32.00	15.0	26	1804055		0
041056101CM		160.00	10.00	66.00	40.00	15.0	26	1804062		0
041056101CMX		160.00	10.00	66.00	40.00	15.0	26	1804063		0
041056120CM		160.00	12.00	58.00	32.00	15.0	26	1804082		0
041056120CMX		160.00	12.00	58.00	32.00	15.0	26	1804083		0
041056121CM		160.00	12.00	66.00	40.00	15.0	26	1804089		0
041056121CMX		160.00	12.00	66.00	40.00	15.0	26	1804090		0
041056140CM		160.00	14.00	58.00	32.00	15.0	24	1804108		0
041056140CMX		160.00	14.00	58.00	32.00	15.0	24	1804109		0
041056141CM	Y	160.00	14.00	66.00	40.00	15.0	24	1804114		0
041056141CMX		160.00	14.00	66.00	40.00	15.0	24	1804115		0
041056160CM		160.00	16.00	58.00	32.00	15.0	24	1804133		0
041056160CMX		160.00	16.00	58.00	32.00	15.0	24	1804134		0
041056161CM	Y	160.00	16.00	66.00	40.00	15.0	24	1804140		0
041056161CMX		160.00	16.00	66.00	40.00	15.0	24	1804141		0
041056180CM		160.00	18.00	58.00	32.00	15.0	24	1804158		0
041056180CMX		160.00	18.00	58.00	32.00	15.0	24	1804159		0
041056181CM	Y	160.00	18.00	66.00	40.00	15.0	24	1804164		0
041056181CMX		160.00	18.00	66.00	40.00	15.0	24	1804165		0
041056200CM	Y	160.00	20.00	58.00	32.00	15.0	24	1804182		0
041056200CMX		160.00	20.00	58.00	32.00	15.0	24	1804183		0
041056201CM	Y	160.00	20.00	66.00	40.00	15.0	24	1804188		0
041056201CMX		160.00	20.00	66.00	40.00	15.0	24	1804189		0
041056220CM		160.00	22.00	58.00	32.00	13.0	24	1804206		0
041056220CMX		160.00	22.00	58.00	32.00	13.0	24	1804207		0
041056221CM	Y	160.00	22.00	66.00	40.00	13.0	24	1804212		0
041056221CMX		160.00	22.00	66.00	40.00	13.0	24	1804213		0
041056250CM		160.00	25.00	58.00	32.00	13.0	24	1804230		0
041056250CMX		160.00	25.00	58.00	32.00	13.0	24	1804231		0
041056251CM		160.00	25.00	66.00	40.00	13.0	24	1804236		0
041056251CMX		160.00	25.00	66.00	40.00	13.0	24	1804237		0
041056280CM	Y	160.00	28.00	58.00	32.00	10.0	24	1804254		0
041056280CMX		160.00	28.00	58.00	32.00	10.0	24	1804255		0
041056281CM		160.00	28.00	66.00	40.00	10.0	24	1804260		0
041056281CMX		160.00	28.00	66.00	40.00	10.0	24	1804261		0
041056320CM	Y	160.00	32.00	58.00	32.00	10.0	24	1804278		0
041056320CMX		160.00	32.00	58.00	32.00	10.0	24	1804279		0
041056321CM		160.00	32.00	66.00	40.00	10.0	24	1804284		0
041056321CMX		160.00	32.00	66.00	40.00	10.0	24	1804285		0
041057080CM		200.00	8.00	80.00	40.00	16.0	34	1804302		0
041057080CMX		200.00	8.00	80.00	40.00	16.0	34	1804303		0
041057100CM		200.00	10.00	80.00	40.00	16.0	32	1804315		0
041057100CMX		200.00	10.00	80.00	40.00	16.0	32	1804316		0
041057120CM		200.00	12.00	80.00	40.00	16.0	30	1804327		0
041057120CMX		200.00	12.00	80.00	40.00	16.0	30	1804328		0
041057140CM		200.00	14.00	80.00	40.00	16.0	30	1804339		0
041057140CMX		200.00	14.00	80.00	40.00	16.0	30	1804340		0
041057160CM		200.00	16.00	80.00	40.00	16.0	30	1804351		0
041057160CMX		200.00	16.00	80.00	40.00	16.0	30	1804352		0
041057180CM		200.00	18.00	80.00	40.00	16.0	30	1804363		0
041057180CMX		200.00	18.00	80.00	40.00	16.0	30	1804364		0
041057200CM		200.00	20.00	80.00	40.00	16.0	30	1804375		0
041057200CMX		200.00	20.00	80.00	40.00	16.0	30	1804376		0
041057220CM		200.00	22.00	80.00	40.00	16.0	30	1804387		0
041057220CMX		200.00	22.00	80.00	40.00	16.0	30	1804388		0
041057250CM	Y	200.00	25.00	80.00	40.00	16.0	30	1804399		0
041057250CMX		200.00	25.00	80.00	40.00	16.0	30	1804400		0
041057280CM		200.00	28.00	80.00	40.00	14.0	30	1804411		0
041057280CMX		200.00	28.00	80.00	40.00	14.0	30	1804412		0
041057320CM		200.00	32.00	80.00	40.00	14.0	30	1804423		0
041057320CMX		200.00	32.00	80.00	40.00	14.0	30	1804424		0
041058140CM		250.00	14.00	90.00	50.00	15.0	38	1804435		0
041058140CMX		250.00	14.00	90.00	50.00	15.0	38	1804436		0
041058160CM		250.00	16.00	90.00	50.00	15.0	36	1804449		0
041058160CMX		250.00	16.00	90.00	50.00	15.0	36	1804450		0
041058180CM		250.00	18.00	90.00	50.00	15.0	34	1804461		0
041058180CMX		250.00	18.00	90.00	50.00	15.0	34	1804462		0
041058200CM		250.00	20.00	90.00	50.00	15.0	34	1804473		0
041058200CMX		250.00	20.00	90.00	50.00	15.0	34	1804474		0
041058250CM		250.00	25.00	90.00	50.00	15.0	30	1804486		0
041058250CMX		250.00	25.00	90.00	50.00	15.0	30	1804487		0
041058280CM		250.00	28.00	90.00	50.00	15.0	28	1804498		0
041058280CMX		250.00	28.00	90.00	50.00	15.0	28	1804499		0
041058300CM		250.00	30.00	90.00	50.00	15.0	26	1804510		0
041058300CMX		250.00	30.00	90.00	50.00	15.0	26	1804511		0
041058320CM		250.00	32.00	90.00	50.00	15.0	26	1804522		0
041058320CMX		250.00	32.00	90.00	50.00	15.0	26	1804523		0

Click here for the Cutting Parameters for this family

Site Map

Milling Hole Making Reaming

Any use of the UOP e-catalogue and any transactions which may be performed as a result of using this program are subject to UOP’s General Terms of Sale
Privacy Policy Cookie Policy
© 2026 UOP S.p.A. Manufacturer of Metalworking Tools (UOP.it) All Rights Reserved
