UOP Cutting Tools - Metal Working Tools - Milling -

Cutting Parameters
for this family

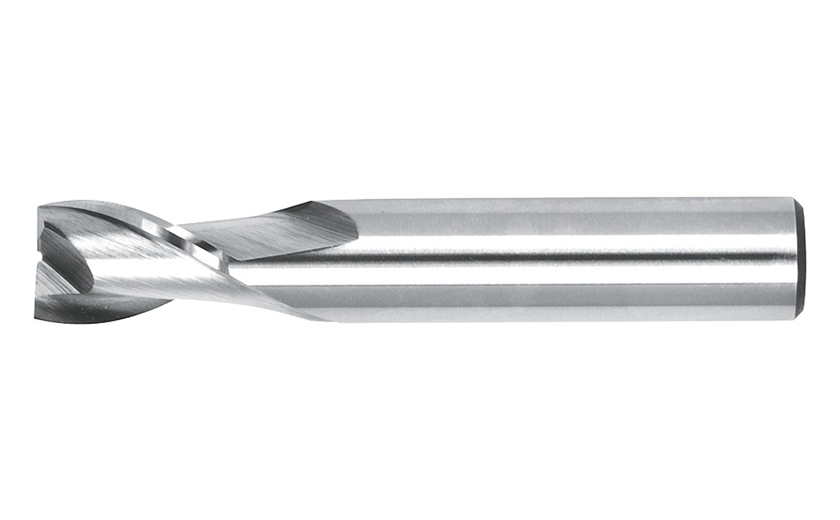

10105 : Two flute slot drills

Designation	DC	APMX	OAL	DCONMS	NOF	GICAT	giic
101050200CMX	2.00	5.00	36.00	4.00	2	1806959	0
101050300CMX	3.00	8.00	40.00	4.00	2	1806977	0
101050400CM	4.00	8.00	40.00	4.00	2	1806993	0
101050400CMX	4.00	8.00	40.00	4.00	2	1806996	0
101050500CM	5.00	10.00	45.00	6.00	2	1807016	0
101050500CMX	5.00	10.00	45.00	6.00	2	1807019	0
101050600CM	6.00	10.00	45.00	6.00	2	1807032	0
101050600CMX	6.00	10.00	45.00	6.00	2	1807035	0
101050700CM	7.00	12.00	50.00	8.00	2	1807045	0
101050700CMX	7.00	12.00	50.00	8.00	2	1807048	0
101050800CM	8.00	12.00	50.00	8.00	2	1807057	0
101050800CMX	8.00	12.00	50.00	8.00	2	1807060	0
101050900CM	9.00	12.00	50.00	8.00	2	1807072	0
101050900CMX	9.00	12.00	50.00	8.00	2	1807075	0
101051000CM	10.00	16.00	56.00	10.00	2	1807084	0
101051000CMX	10.00	16.00	56.00	10.00	2	1807087	0
101051100CM	11.00	16.00	56.00	10.00	2	1807098	0
101051200CM	12.00	20.00	65.00	12.00	2	1807111	0
101051200CMX	12.00	20.00	65.00	12.00	2	1807114	0
101051300CM	13.00	20.00	65.00	12.00	2	1807124	0
101051300CMX	13.00	20.00	65.00	12.00	2	1807127	0
101051400CM	14.00	20.00	65.00	12.00	2	1807137	0
101051400CMX	14.00	20.00	65.00	12.00	2	1807140	0
101051500CM	15.00	20.00	65.00	12.00	2	1807150	0
101051500CMX	15.00	20.00	65.00	12.00	2	1807153	0
101051600CM	16.00	25.00	78.00	16.00	2	1807163	0
101051600CMX	16.00	25.00	78.00	16.00	2	1807166	0
101051700CM	17.00	25.00	78.00	16.00	2	1807176	1
101051800CM	18.00	25.00	78.00	16.00	2	1807187	0
101051800CMX	18.00	25.00	78.00	16.00	2	1807190	0
101052000CM	20.00	28.00	86.00	20.00	2	1807210	0
101052000CMX	20.00	28.00	86.00	20.00	2	1807213	0
101052200CM	22.00	32.00	90.00	20.00	2	1807236	0
101052200CMX	22.00	32.00	90.00	20.00	2	1807239	0
101052400CM	24.00	36.00	100.00	25.00	2	1807257	0
101052400CMX	24.00	36.00	100.00	25.00	2	1807260	0
101052500CM	25.00	36.00	100.00	25.00	2	1807267	0
101052500CMX	25.00	36.00	100.00	25.00	2	1807270	0
101053200CM	32.00	40.00	110.00	25.00	2	1807308	0
