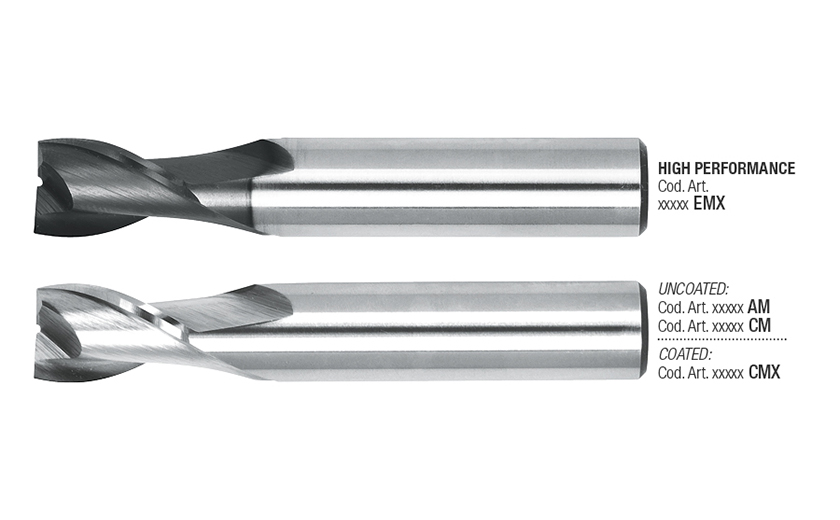

10110 : Two flute slot drills in tolerance e8

SKIN

WELDON ON REQUEST

THREADED ON REQUEST

LAMBDA 32

UNI 8254 DIN 327B ISO 1641/I

SHORT

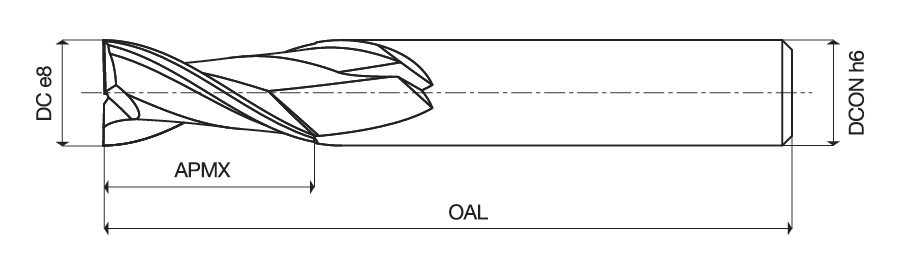

Designation	GICODE	DC	APMX	OAL	DCONMS	NOF	GICAT	GIREM	giic
101100100CM		1.00	3.00	47.00	6.00	2	1807325		0
101100100CMX		1.00	3.00	47.00	6.00	2	1807328		0
101100150CM		1.50	3.00	47.00	6.00	2	1807351		0
101100150CMX		1.50	3.00	47.00	6.00	2	1807354		0
101100200CM		2.00	4.00	48.00	6.00	2	1807376		0
101100200CMX		2.00	4.00	48.00	6.00	2	1807379		0
101100250CM		2.50	5.00	49.00	6.00	2	1807405		0
101100250CMX		2.50	5.00	49.00	6.00	2	1807408		0
101100300CM		3.00	5.00	49.00	6.00	2	1807433		0
101100300CMX		3.00	5.00	49.00	6.00	2	1807436		0
101100350CM		3.50	6.00	50.00	6.00	2	1807461		0
101100350CMX		3.50	6.00	50.00	6.00	2	1807464		0
101100400CM		4.00	7.00	51.00	6.00	2	1807487		0
101100400CMX		4.00	7.00	51.00	6.00	2	1807490		0
101100450CM		4.50	7.00	51.00	6.00	2	1807527		0
101100450CMX		4.50	7.00	51.00	6.00	2	1807530		0
101100500CM		5.00	8.00	52.00	6.00	2	1807552		0
101100500CMX		5.00	8.00	52.00	6.00	2	1807555		0
101100550CM		5.50	8.00	52.00	6.00	2	1807593		0
101100550CMX		5.50	8.00	52.00	6.00	2	1807596		0
101100600CM		6.00	8.00	52.00	6.00	2	1807621		0
101100600CMX		6.00	8.00	52.00	6.00	2	1807625		0
101100650CM		6.50	10.00	60.00	10.00	2	1807669		0
101100650CMX		6.50	10.00	60.00	10.00	2	1807672		0
101100700CM		7.00	10.00	60.00	10.00	2	1807697		0
101100700CMX		7.00	10.00	60.00	10.00	2	1807700		0
101100750CM		7.50	10.00	60.00	10.00	2	1807729		0
101100750CMX		7.50	10.00	60.00	10.00	2	1807732		0
101100800CM		8.00	11.00	61.00	10.00	2	1807758		0
101100800CMX		8.00	11.00	61.00	10.00	2	1807761		0
101100850CM		8.50	11.00	61.00	10.00	2	1807801		0
101100850CMX		8.50	11.00	61.00	10.00	2	1807804		0
101100900CM		9.00	11.00	61.00	10.00	2	1807827		0
101100900CMX		9.00	11.00	61.00	10.00	2	1807830		0
101100950CM		9.50	13.00	63.00	10.00	2	1807860		0
101100950CMX		9.50	13.00	63.00	10.00	2	1807863		0
101101000CM		10.00	13.00	63.00	10.00	2	1807887		0
101101000CMX		10.00	13.00	63.00	10.00	2	1807890		0
101101050CM		10.50	13.00	70.00	12.00	2	1807937		0
101101050CMX		10.50	13.00	70.00	12.00	2	1807940		0
101101100CM		11.00	13.00	70.00	12.00	2	1807966		0
101101100CMX		11.00	13.00	70.00	12.00	2	1807969		0
101101200CM		12.00	16.00	73.00	12.00	2	1808000		0
101101200CMX		12.00	16.00	73.00	12.00	2	1808004		0
101101300CM		13.00	16.00	73.00	12.00	2	1808046		0
101101300CMX		13.00	16.00	73.00	12.00	2	1808049		0
101101400CM		14.00	16.00	73.00	12.00	2	1808080		0
101101400CMX		14.00	16.00	73.00	12.00	2	1808083		0
101101500CM		15.00	19.00	79.00	16.00	2	1808122		0
101101500CMX		15.00	19.00	79.00	16.00	2	1808125		0
101101600CM		16.00	19.00	79.00	16.00	2	1808153		0
101101600CMX		16.00	19.00	79.00	16.00	2	1808156		0
101101700CM		17.00	19.00	79.00	16.00	2	1808192		0
101101700CMX		17.00	19.00	79.00	16.00	2	1808195		0
101101800CM		18.00	19.00	79.00	16.00	2	1808225		0
101101800CMX		18.00	19.00	79.00	16.00	2	1808228		0
101101900CM		19.00	22.00	82.00	16.00	2	1808286		0
101101900CMX		19.00	22.00	82.00	16.00	2	1808289		0
101102000CM		20.00	22.00	82.00	16.00	2	1808332		0
101102000CMX		20.00	22.00	82.00	16.00	2	1808335		0
101102001CM		20.00	22.00	88.00	20.00	2	1808367		0
101102001CMX		20.00	22.00	88.00	20.00	2	1808370		0
101102100CM		21.00	22.00	88.00	20.00	2	1808399		0
101102100CMX		21.00	22.00	88.00	20.00	2	1808402		0
101102200CM		22.00	22.00	88.00	20.00	2	1808417		0
101102200CMX		22.00	22.00	88.00	20.00	2	1808420		0
101102300CM		23.00	22.00	88.00	20.00	2	1808471		0
101102300CMX		23.00	22.00	88.00	20.00	2	1808474		0
101102400CM		24.00	26.00	102.00	25.00	2	1808493		0
101102400CMX		24.00	26.00	102.00	25.00	2	1808496		0
101102500CM		25.00	26.00	102.00	25.00	2	1808527		0
101102500CMX		25.00	26.00	102.00	25.00	2	1808530		0
101102600CM		26.00	26.00	102.00	25.00	2	1808560		0
101102600CMX		26.00	26.00	102.00	25.00	2	1808563		0
101102800CM		28.00	26.00	102.00	25.00	2	1808583		0
101102800CMX		28.00	26.00	102.00	25.00	2	1808586		0
101103000CM		30.00	26.00	102.00	25.00	2	1808611		0
101103000CMX		30.00	26.00	102.00	25.00	2	1808614		0
101103200CM		32.00	32.00	112.00	32.00	2	1808639		0
101103200CMX		32.00	32.00	112.00	32.00	2	1808642		0
101103500CM		35.00	32.00	112.00	32.00	2	1808680		0
101103500CMX		35.00	32.00	112.00	32.00	2	1808683		0
101103600CM		36.00	32.00	112.00	32.00	2	1808697		0
101103600CMX		36.00	32.00	112.00	32.00	2	1808700		0
101104000CM		40.00	38.00	118.00	32.00	2	1808732		0
101104000CMX		40.00	38.00	118.00	32.00	2	1808735		0
101104500CM		45.00	38.00	118.00	32.00	2	1808755		0
101104500CMX		45.00	38.00	118.00	32.00	2	1808758		0
101105000CM		50.00	45.00	125.00	32.00	2	1808774		0
101105000CMX		50.00	45.00	125.00	32.00	2	1808777		0
