Milling
Main Application

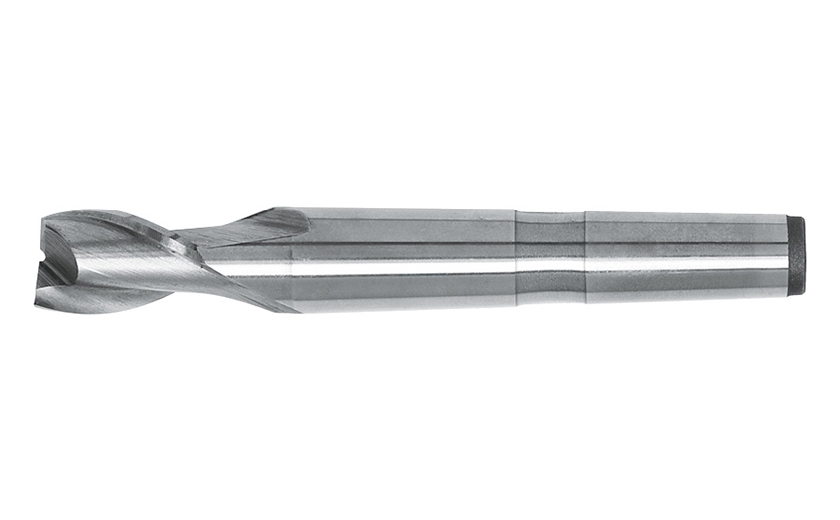

10170 : Two flute end mills


 SKIN  LAMBDA 32  FINISHING CUTTING EDGE PROFILE N  UNI 8260A DIN 326D ISO 164/I  NORMAL

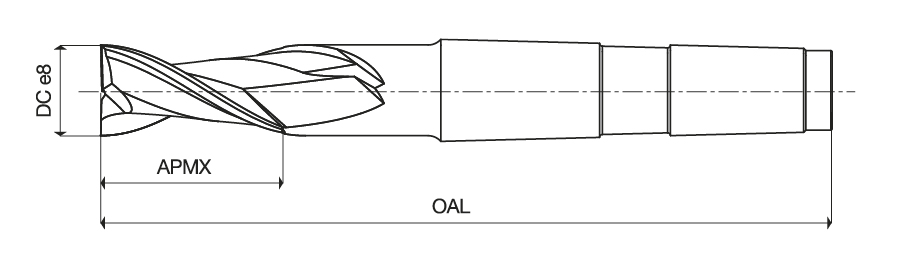

  DesignationGICODEDCAPMXOALM.T.NOFGICATGIREMgiic
  101701600CM  16.0019.00104.0022   1812448 0
  101702000CM  20.0022.00124.0032   1812482 0
  101702000CMX  20.0022.00124.0032   1812483 0
  101702500CM  25.0026.00128.0032   1812537 0
  101702500CMX  25.0026.00128.0032   1812538 0
  101702800CM  28.0026.00128.0032   1812564 0
  101703000CM  30.0032.00134.0032   1812582 0
  101703000CMX  30.0032.00134.0032   1812583 0
  101703200CM  32.0032.00157.0042   1812596 0
  101703200CMX  32.0032.00157.0042   1812597 0
  101703600CM  36.0032.00157.0042   1812623 0
  101703600CMX  36.0032.00157.0042   1812624 0
  101703800CM  38.0038.00163.0042   1812634 0
  101704000CM  40.0038.00163.0042   1812642 0
  101704000CMX  40.0038.00163.0042   1812643 0
  101705000CM  50.0045.00170.0042   1812658 0
Click here for the Cutting Parameters for this family
