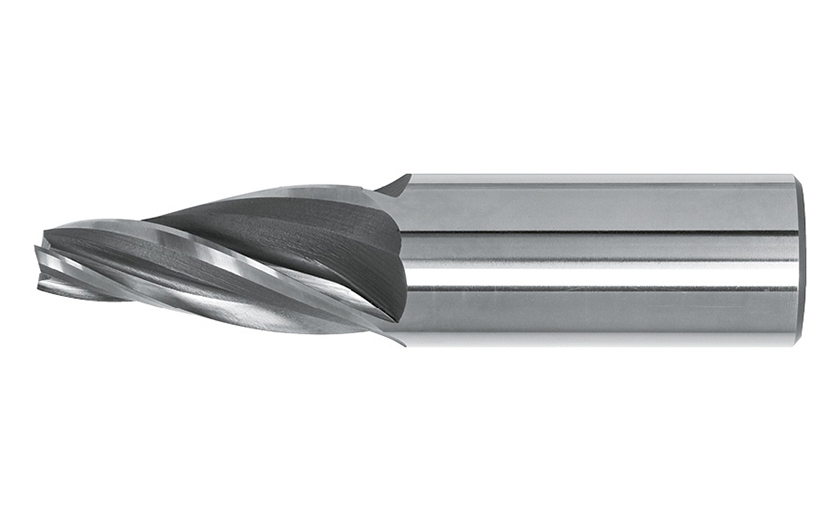

25105 : Taperd end mills

SKIN

WELDON ON REQUEST

THREADED ON REQUEST

LAMBDA 25

UNI 8265 DIN 1889EA ISO

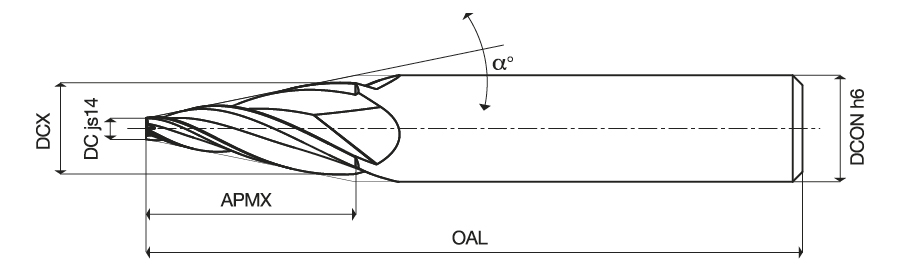

Designation	GICODE	DC	DCX	APMX	OAL	DCONMS	NOF	GICAT	GIREM	giic
251052050CM		2.50	10.00	37.50	88.00	10.00	3	1843729		0
251052050CMX		2.50	10.00	37.50	88.00	10.00	3	1843732		0
251051050CM		2.50	13.00	31.50	85.00	12.00	3	1843632		0
251051050CMX		2.50	13.00	31.50	85.00	12.00	3	1843635		0
251053050CM		4.00	8.00	40.00	90.00	10.00	4	1843875		0
251053050CMX		4.00	8.00	40.00	90.00	10.00	4	1843878		0
251052100CM		4.00	12.00	40.00	97.00	12.00	4	1843737		0
251052100CMX		4.00	12.00	40.00	97.00	12.00	4	1843740		0
251051100CM		4.00	16.00	36.00	96.00	16.00	4	1843642		0
251051100CMX		4.00	16.00	36.00	96.00	16.00	4	1843645		0
251052150CM		4.00	16.00	60.00	120.00	16.00	4	1843746		0
251052150CMX		4.00	16.00	60.00	120.00	16.00	4	1843749		0
251052200CM		4.00	22.00	90.00	150.00	16.00	4	1843753		0
251052200CMX		4.00	22.00	90.00	150.00	16.00	4	1843756		0
251051150CM		4.00	22.70	56.00	116.00	16.00	4	1843653		0
251051150CMX		4.00	22.70	56.00	116.00	16.00	4	1843656		0
251051200CM		4.00	34.00	90.00	170.00	32.00	4	1843661		0
251051200CMX		4.00	34.00	90.00	170.00	32.00	4	1843664		0
251053100CM		6.00	10.00	40.00	90.00	10.00	4	1843882		0
251053100CMX		6.00	10.00	40.00	90.00	10.00	4	1843885		0
251053150CM		6.00	12.00	60.00	117.00	12.00	4	1843890		0
251053150CMX		6.00	12.00	60.00	117.00	12.00	4	1843893		0
251052250CM		6.00	14.00	40.00	97.00	12.00	4	1843760		0
251052250CMX		6.00	14.00	40.00	97.00	12.00	4	1843763		0
251052300CM		6.00	18.00	60.00	120.00	16.00	4	1843767		0
251052300CMX		6.00	18.00	60.00	120.00	16.00	4	1843770		0
251051250CM		6.00	20.00	42.00	100.00	16.00	4	1843668		0
251051250CMX		6.00	20.00	42.00	100.00	16.00	4	1843671		0
251052350CM		6.00	26.00	100.00	175.00	25.00	4	1843775		0
251052350CMX		6.00	26.00	100.00	175.00	25.00	4	1843778		0
251051300CM		6.00	27.00	63.00	138.00	25.00	4	1843678		0
251051300CMX		6.00	27.00	63.00	138.00	25.00	4	1843681		0
251051350CM		6.00	40.00	102.00	182.00	32.00	4	1843687		0
251051350CMX		6.00	40.00	102.00	182.00	32.00	4	1843690		0
251053200CM		8.00	12.50	45.00	95.00	12.00	4	1843898		0
251053200CMX		8.00	12.50	45.00	95.00	12.00	4	1843901		0
251053250CM		8.00	16.00	80.00	140.00	16.00	4	1843908		0
251053250CMX		8.00	16.00	80.00	140.00	16.00	4	1843911		0
251052400CM		8.00	17.00	45.00	105.00	16.00	4	1843782		0
251052400CMX		8.00	17.00	45.00	105.00	16.00	4	1843785		0
251052450CM		8.00	22.00	70.00	130.00	16.00	4	1843792		0
251052450CMX		8.00	22.00	70.00	130.00	16.00	4	1843795		0
251051400CM		8.00	25.00	50.00	125.00	25.00	4	1843695		0
251051400CMX		8.00	25.00	50.00	125.00	25.00	4	1843698		0
251052500CM		8.00	28.00	100.00	175.00	25.00	4	1843800		0
251052500CMX		8.00	28.00	100.00	175.00	25.00	4	1843803		0
251051450CM		8.00	32.00	72.00	152.00	32.00	4	1843705		0
251051450CMX		8.00	32.00	72.00	152.00	32.00	4	1843708		0
251051500CM		8.00	45.50	112.00	192.00	32.00	4	1843713		0
251051500CMX		8.00	45.50	112.00	192.00	32.00	4	1843716		0
251053300CM		12.00	17.00	50.00	110.00	16.00	4	1843916		0
251053300CMX		12.00	17.00	50.00	110.00	16.00	4	1843919		0
251053350CM		12.00	20.00	80.00	140.00	16.00	4	1843924		0
251053350CMX		12.00	20.00	80.00	140.00	16.00	4	1843927		0
251052550CM		12.00	21.00	45.00	105.00	16.00	4	1843807		0
251052550CMX		12.00	21.00	45.00	105.00	16.00	4	1843810		0
251053400CM		12.00	25.00	130.00	205.00	25.00	4	1843933		0
251053400CMX		12.00	25.00	130.00	205.00	25.00	4	1843936		0
251052600CM		12.00	26.20	71.00	146.00	25.00	4	1843816		0
251052600CMX		12.00	26.20	71.00	146.00	25.00	4	1843819		0
251051550CM		12.00	32.00	60.00	140.00	32.00	4	1843720		0
251051550CMX		12.00	32.00	60.00	140.00	32.00	4	1843723		0
251052650CM		12.00	37.00	125.00	205.00	32.00	5	1843825		0
251052650CMX		12.00	37.00	125.00	205.00	32.00	5	1843828		0
251053450CM		16.00	21.60	56.00	116.00	16.00	4	1843940		0
251053450CMX		16.00	21.60	56.00	116.00	16.00	4	1843943		0
251053500CM		16.00	25.00	90.00	165.00	25.00	4	1843949		0
251053500CMX		16.00	25.00	90.00	165.00	25.00	4	1843952		0
251052700CM		16.00	26.00	50.00	125.00	25.00	4	1843832		0
251052700CMX		16.00	26.00	50.00	125.00	25.00	4	1843835		0
251052750CM		16.00	32.00	80.00	160.00	32.00	4	1843839		0
251052750CMX		16.00	32.00	80.00	160.00	32.00	4	1843842		0
251053550CM		16.00	32.00	160.00	240.00	32.00	4	1843956		0
251053550CMX		16.00	32.00	160.00	240.00	32.00	4	1843959		0
251052800CM		16.00	41.00	125.00	205.00	32.00	5	1843847		0
251052800CMX		16.00	41.00	125.00	205.00	32.00	5	1843850		0
251053600CM		20.00	26.30	63.00	138.00	25.00	5	1843963		0
251053600CMX		20.00	26.30	63.00	138.00	25.00	5	1843966		0
251053650CM		20.00	30.00	100.00	175.00	32.00	5	1843970		0
251053650CMX		20.00	30.00	100.00	175.00	32.00	5	1843973		0
251052850CM		20.00	32.60	63.00	143.00	32.00	5	1843854		0
251052850CMX		20.00	32.60	63.00	143.00	32.00	5	1843857		0
251052900CM		20.00	40.00	100.00	180.00	32.00	5	1843861		0
251052900CMX		20.00	40.00	100.00	180.00	32.00	5	1843864		0
251052950CM		20.00	52.00	160.00	240.00	32.00	5	1843868		0
251052950CMX		20.00	52.00	160.00	240.00	32.00	5	1843871		0

Click here for the Cutting Parameters for this family
