Milling
Main Application

Cutting Parameters
for this family

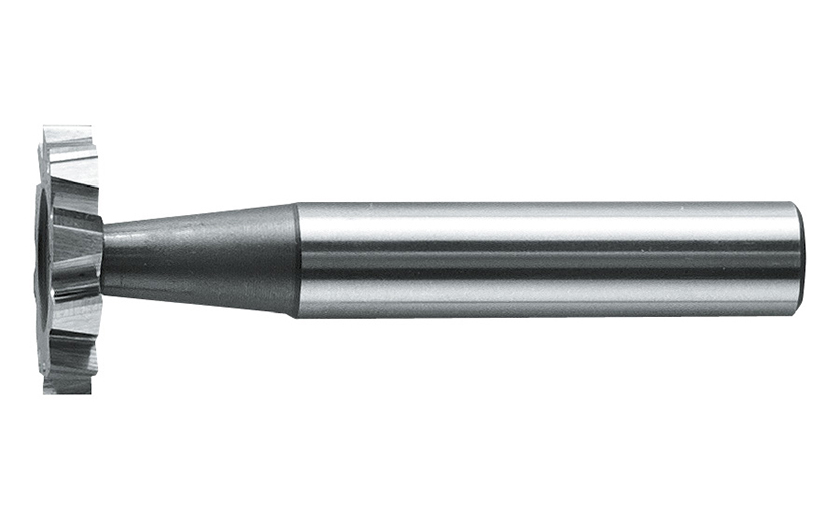

27105 : Woodruff cutters

SKIN

WELDON ON REQUEST

THREADED ON REQUEST

UNI 8263 DIN 850B ISO

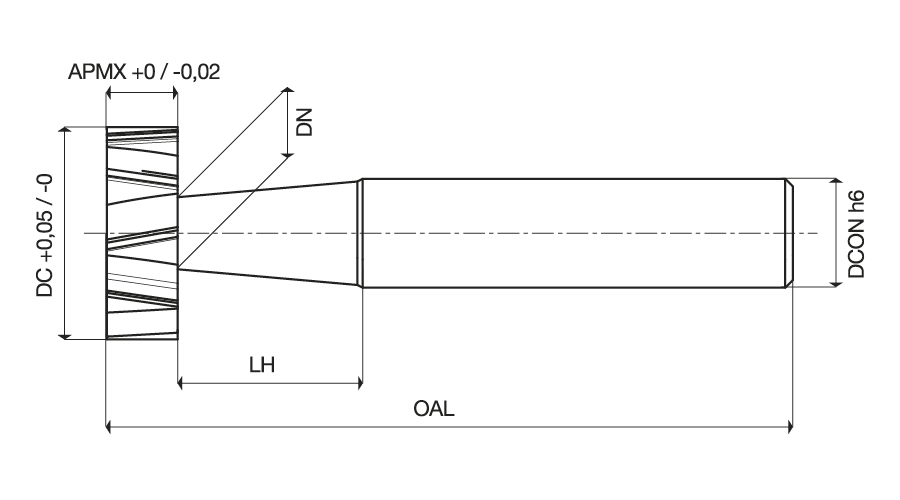

Designation	GICODE	DC	APMX	DN	LH	OAL	DCONMS	HELIX	NOF	GICAT	GIREM	giic
271051020AM		10.50	2.00	4.00	9.0	50.00	6.00	13.0	8	1845385		0
271051020CM		10.50	2.00	4.00	9.0	50.00	6.00	13.0	8	1845393		0
271051020CMX		10.50	2.00	4.00	9.0	50.00	6.00	13.0	8	1845396		0
271051025AM		10.50	2.50	4.00	9.0	50.00	6.00	13.0	8	1845405		0
271051025CM		10.50	2.50	4.00	9.0	50.00	6.00	13.0	8	1845415		0
271051025CMX		10.50	2.50	4.00	9.0	50.00	6.00	13.0	8	1845418		0
271051030AM		10.50	3.00	4.20	8.0	50.00	6.00	13.0	8	1845427		0
271051030CM		10.50	3.00	4.20	8.0	50.00	6.00	13.0	8	1845438		0
271051030CMX		10.50	3.00	4.20	8.0	50.00	6.00	13.0	8	1845441		0
271051302AM		13.50	2.00	4.60	12.0	56.00	10.00	15.0	8	1845449		0
271051302CM		13.50	2.00	4.60	12.0	56.00	10.00	15.0	8	1845456		0
271051302CMX		13.50	2.00	4.60	12.0	56.00	10.00	15.0	8	1845459		0
271051303AM		13.50	3.00	4.60	12.0	56.00	10.00	15.0	8	1845468		0
271051303CM		13.50	3.00	4.60	12.0	56.00	10.00	15.0	8	1845477		0
271051303CMX		13.50	3.00	4.60	12.0	56.00	10.00	15.0	8	1845480		0
271051304AM		13.50	4.00	4.60	12.0	56.00	10.00	15.0	8	1845490		0
271051304CM		13.50	4.00	4.60	12.0	56.00	10.00	15.0	8	1845500		0
271051304CMX		13.50	4.00	4.60	12.0	56.00	10.00	15.0	8	1845503		0
271051603AM		16.50	3.00	4.60	12.0	56.00	10.00	15.0	8	1845514		0
271051603CM		16.50	3.00	4.60	12.0	56.00	10.00	15.0	8	1845522		0
271051603CMX		16.50	3.00	4.60	12.0	56.00	10.00	15.0	8	1845525		0
271051604AM		16.50	4.00	4.60	12.0	56.00	10.00	15.0	8	1845534		0
271051604CM		16.50	4.00	4.60	12.0	56.00	10.00	15.0	8	1845542		0
271051604CMX		16.50	4.00	4.60	12.0	56.00	10.00	15.0	8	1845545		0
271051605AM		16.50	5.00	5.00	9.5	56.00	10.00	15.0	8	1845554		0
271051605CM		16.50	5.00	5.00	9.5	56.00	10.00	15.0	8	1845564		0
271051605CMX		16.50	5.00	5.00	9.5	56.00	10.00	15.0	8	1845567		0
271051606AM		16.50	6.00	5.00	9.5	56.00	10.00	15.0	8	1845575		0
271051606CM		16.50	6.00	5.00	9.5	56.00	10.00	15.0	8	1845583		0
271051606CMX		16.50	6.00	5.00	9.5	56.00	10.00	15.0	8	1845586		0
271051903AM		19.50	3.00	5.60	17.5	63.00	10.00	15.0	10	1845594		0
271051903CM		19.50	3.00	5.60	17.5	63.00	10.00	15.0	10	1845604		0
271051903CMX		19.50	3.00	5.60	17.5	63.00	10.00	15.0	10	1845607		0
271051904AM		19.50	4.00	5.60	17.5	63.00	10.00	15.0	10	1845615		0
271051904CM		19.50	4.00	5.60	17.5	63.00	10.00	15.0	10	1845623		0
271051904CMX		19.50	4.00	5.60	17.5	63.00	10.00	15.0	10	1845626		0
271051905AM		19.50	5.00	6.00	16.0	63.00	10.00	15.0	10	1845635		0
271051905CM		19.50	5.00	6.00	16.0	63.00	10.00	15.0	10	1845644		0
271051905CMX		19.50	5.00	6.00	16.0	63.00	10.00	15.0	10	1845647		0
271051906AM		19.50	6.00	6.50	15.0	63.00	10.00	15.0	10	1845655		0
271051906CM		19.50	6.00	6.50	15.0	63.00	10.00	15.0	10	1845662		0
271051906CMX		19.50	6.00	6.50	15.0	63.00	10.00	15.0	10	1845665		0
271052204AM		22.50	4.00	6.00	17.0	63.00	10.00	13.0	10	1845672		0
271052204CM		22.50	4.00	6.00	17.0	63.00	10.00	13.0	10	1845683		0
271052204CMX		22.50	4.00	6.00	17.0	63.00	10.00	13.0	10	1845686		0
271052205AM		22.50	5.00	6.00	17.0	63.00	10.00	13.0	10	1845695		0
271052205CM	Y	22.50	5.00	6.00	17.0	63.00	10.00	13.0	10	1845703		0
271052205CMX		22.50	5.00	6.00	17.0	63.00	10.00	13.0	10	1845706		0
271052206AM		22.50	6.00	6.50	13.0	63.00	10.00	13.0	10	1845713		0
271052206CM		22.50	6.00	6.50	13.0	63.00	10.00	13.0	10	1845721		0
271052206CMX		22.50	6.00	6.50	13.0	63.00	10.00	13.0	10	1845724		0
271052208AM		22.50	8.00	6.50	13.0	63.00	10.00	13.0	10	1845736		0
271052208CM		22.50	8.00	6.50	13.0	63.00	10.00	13.0	10	1845743		0
271052208CMX		22.50	8.00	6.50	13.0	63.00	10.00	13.0	10	1845746		0
271052505AM		25.50	5.00	7.50	12.0	63.00	10.00	15.0	12	1845752		0
271052505CM		25.50	5.00	7.50	12.0	63.00	10.00	15.0	12	1845761		0
271052505CMX		25.50	5.00	7.50	12.0	63.00	10.00	15.0	12	1845764		0
271052506AM		25.50	6.00	7.50	12.0	63.00	10.00	15.0	12	1845771		0
271052506CM		25.50	6.00	7.50	12.0	63.00	10.00	15.0	12	1845778		0
271052506CMX		25.50	6.00	7.50	12.0	63.00	10.00	15.0	12	1845781		0
271052507AM		25.50	7.00	7.50	12.0	63.00	10.00	15.0	12	1845789		0
271052507CM		25.50	7.00	7.50	12.0	63.00	10.00	15.0	12	1845797		0
271052507CMX		25.50	7.00	7.50	12.0	63.00	10.00	15.0	12	1845800		0
271052508AM		25.50	8.00	7.50	12.0	63.00	10.00	15.0	12	1845808		0
271052508CM		25.50	8.00	7.50	12.0	63.00	10.00	15.0	12	1845815		0
271052508CMX		25.50	8.00	7.50	12.0	63.00	10.00	15.0	12	1845818		0
271052806AM		28.50	6.00	8.50	10.0	63.00	10.00	13.0	12	1845824		0
271052806CM		28.50	6.00	8.50	10.0	63.00	10.00	13.0	12	1845833		0
271052806CMX		28.50	6.00	8.50	10.0	63.00	10.00	13.0	12	1845836		0
271052807AM		28.50	7.00	8.50	10.0	63.00	10.00	13.0	12	1845844		0
271052807CM		28.50	7.00	8.50	10.0	63.00	10.00	13.0	12	1845851		0
271052807CMX		28.50	7.00	8.50	10.0	63.00	10.00	13.0	12	1845854		0
271052808AM		28.50	8.00	8.50	10.0	63.00	10.00	13.0	12	1845860		0
271052808CM		28.50	8.00	8.50	10.0	63.00	10.00	13.0	12	1845868		0
271052808CMX		28.50	8.00	8.50	10.0	63.00	10.00	13.0	12	1845871		0
271052810AM		28.50	10.00	9.30	13.0	71.00	12.00	13.0	12	1845880		0
271052810CM		28.50	10.00	9.30	13.0	71.00	12.00	13.0	12	1845888		0
271052810CMX		28.50	10.00	9.30	13.0	71.00	12.00	13.0	12	1845891		0
271053206AM	Y	32.50	6.00	8.50	16.0	71.00	12.00	15.0	12	1845898		0
271053206CM		32.50	6.00	8.50	16.0	71.00	12.00	15.0	12	1845906		0
271053206CMX		32.50	6.00	8.50	16.0	71.00	12.00	15.0	12	1845909		0
271053207AM	Y	32.50	7.00	8.50	16.0	71.00	12.00	15.0	12	1845917		0
271053207CM		32.50	7.00	8.50	16.0	71.00	12.00	15.0	12	1845924		0
271053207CMX		32.50	7.00	8.50	16.0	71.00	12.00	15.0	12	1845927		0
271053208AM		32.50	8.00	8.50	16.0	71.00	12.00	15.0	12	1845933		0
271053208CM		32.50	8.00	8.50	16.0	71.00	12.00	15.0	12	1845941		0
271053208CMX		32.50	8.00	8.50	16.0	71.00	12.00	15.0	12	1845944		0
271053210AM		32.50	10.00	9.30	13.0	71.00	12.00	15.0	12	1845953		0
271053210CM		32.50	10.00	9.30	13.0	71.00	12.00	15.0	12	1845962		0
271053210CMX		32.50	10.00	9.30	13.0	71.00	12.00	15.0	12	1845965		0
271054510AM		45.50	10.00	11.00	13.0	71.00	12.00	13.0	12	1845975		0
271054510CM		45.50	10.00	11.00	13.0	71.00	12.00	13.0	12	1845982		0
271054510CMX		45.50	10.00	11.00	13.0	71.00	12.00	13.0	12	1845985		0

Click here for the Cutting Parameters for this family
