Milling
>
>
27120
Milling
Main Application
Cutting Parameters
for this family
27120 :

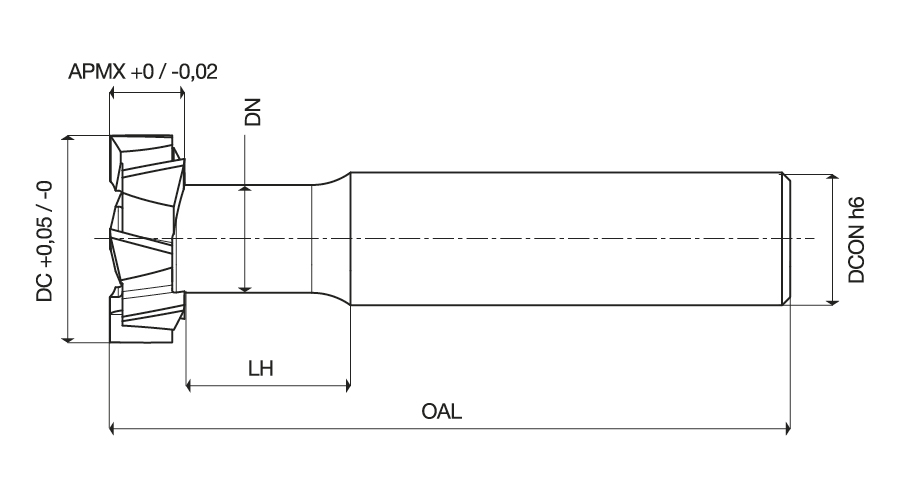

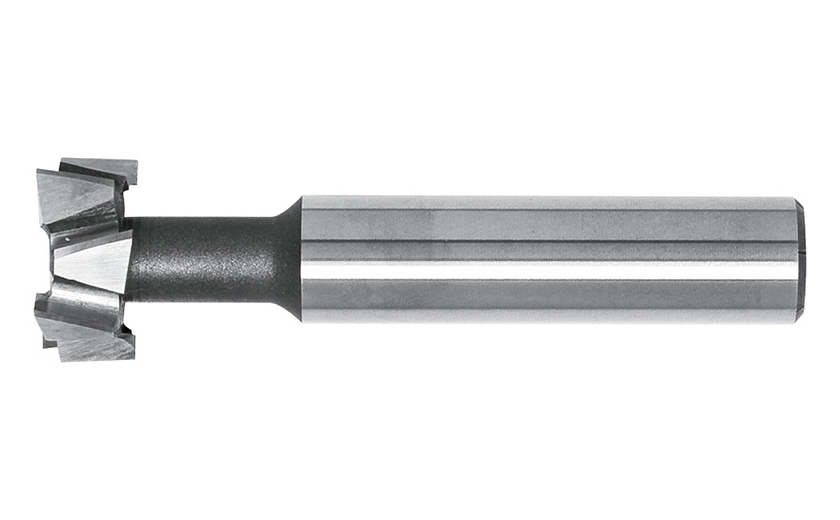

T-slot cutters
Designation
GICODE
DC
APMX
DN
LH
OAL
DCONMS
HELIX
NOF
GICAT
GIREM
giic
271201256AM
12.50
6.00
5.00
11.0
57.00
10.00
12.0
6
1846339
0
271201256CM
12.50
6.00
5.00
11.0
57.00
10.00
12.0
6
1846348
0
271201256CMX
12.50
6.00
5.00
11.0
57.00
10.00
12.0
6
1846351
0
271201608AM
16.00
8.00
7.00
14.0
62.00
10.00
12.0
6
1846362
0
271201608CM
16.00
8.00
7.00
14.0
62.00
10.00
12.0
6
1846372
0
271201608CMX
16.00
8.00
7.00
14.0
62.00
10.00
12.0
6
1846375
0
271201808AM
18.00
8.00
8.00
15.0
70.00
12.00
15.0
6
1846384
0
271201808CM
18.00
8.00
8.00
15.0
70.00
12.00
15.0
6
1846393
0
271201808CMX
18.00
8.00
8.00
15.0
70.00
12.00
15.0
6
1846396
0
271201909AM
19.00
9.00
8.00
15.0
70.00
12.00
15.0
8
1846405
0
271201909CM
19.00
9.00
8.00
15.0
70.00
12.00
15.0
8
1846412
0
271201909CMX
19.00
9.00
8.00
15.0
70.00
12.00
15.0
8
1846415
0
271202109AM
21.00
9.00
10.00
18.0
74.00
12.00
15.0
8
1846423
0
271202109CM
21.00
9.00
10.00
18.0
74.00
12.00
15.0
8
1846432
0
271202109CMX
21.00
9.00
10.00
18.0
74.00
12.00
15.0
8
1846435
0
271202210AM
22.00
10.00
10.00
17.0
74.00
12.00
15.0
8
1846443
0
271202210CM
22.00
10.00
10.00
17.0
74.00
12.00
15.0
8
1846451
0
271202210CMX
22.00
10.00
10.00
17.0
74.00
12.00
15.0
8
1846454
0
271202511AM
25.00
11.00
12.00
20.0
82.00
16.00
15.0
8
1846463
0
271202511CM
25.00
11.00
12.00
20.0
82.00
16.00
15.0
8
1846474
0
271202511CMX
25.00
11.00
12.00
20.0
82.00
16.00
15.0
8
1846477
0
271202812AM
28.00
12.00
13.00
22.0
85.00
16.00
15.0
8
1846487
0
271202812CM
28.00
12.00
13.00
22.0
85.00
16.00
15.0
8
1846495
0
271202812CMX
28.00
12.00
13.00
22.0
85.00
16.00
15.0
8
1846498
0
271203214AM
32.00
14.00
15.00
25.0
90.00
16.00
15.0
8
1846508
0
271203214CM
32.00
14.00
15.00
25.0
90.00
16.00
15.0
8
1846518
0
271203214CMX
32.00
14.00
15.00
25.0
90.00
16.00
15.0
8
1846521
0
Click here for the Cutting Parameters for this family
