Milling
Main Application
Cutting Parameters
for this family
27155 :

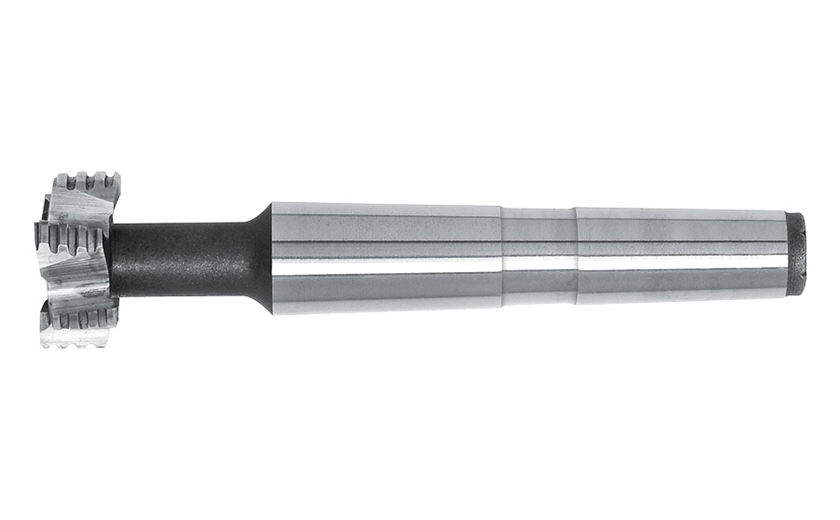

T-slot cutters

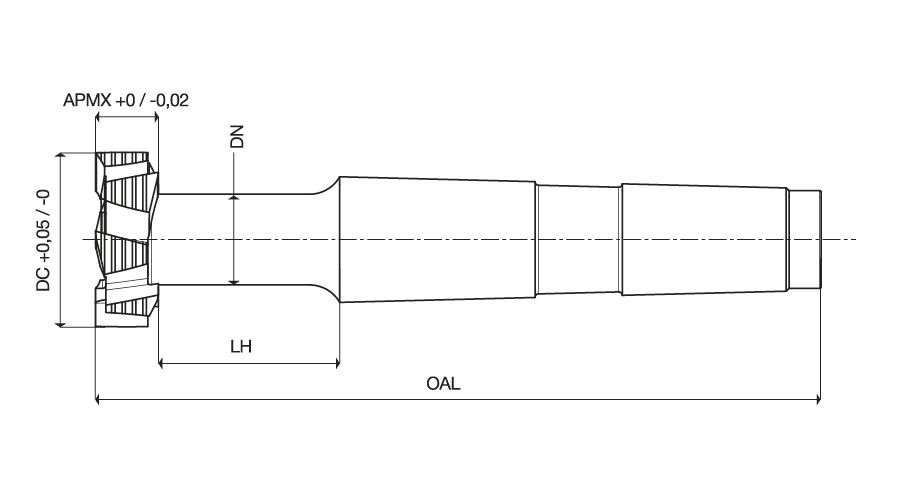

Designation
GICODE
DC
APMX
DN
LH
OAL
M.T.
NOF
GICAT
GIREM
giic
271551256CM
12.50
6.00
5.00
9.0
72.00
1
4
1847042
0
271551256CMX
12.50
6.00
5.00
9.0
72.00
1
4
1847043
0
271551608CM
Y
16.00
8.00
7.00
12.0
77.00
1
6
1847048
0
271551608CM2
16.00
8.00
7.00
12.0
77.00
1
6
1847050
0
271551808CM
18.00
8.00
8.00
17.0
82.00
1
6
1847056
0
271551808CMX
18.00
8.00
8.00
17.0
82.00
1
6
1847057
0
271551909CM
19.00
9.00
8.00
16.0
82.00
1
6
1847064
0
271551909CMX
19.00
9.00
8.00
16.0
82.00
1
6
1847065
0
271552109CM
21.00
9.00
10.00
24.0
102.00
2
6
1847071
0
271552109CMX
21.00
9.00
10.00
24.0
102.00
2
6
1847072
0
271552210CM
22.00
10.00
10.00
23.0
102.00
2
6
1847080
0
271552210CMX
22.00
10.00
10.00
23.0
102.00
2
6
1847081
0
271552511CM
25.00
11.00
12.00
24.0
104.00
2
8
1847089
0
271552511CMX
25.00
11.00
12.00
24.0
104.00
2
8
1847090
0
271552812CM
28.00
12.00
13.00
25.0
106.00
2
8
1847096
0
271552812CMX
28.00
12.00
13.00
25.0
106.00
2
8
1847097
0
271553214AM
32.00
14.00
15.00
28.0
111.00
2
8
1847103
0
271553214CM
32.00
14.00
15.00
28.0
111.00
2
8
1847106
0
271553214CMX
32.00
14.00
15.00
28.0
111.00
2
8
1847107
0
271553616AM
36.00
16.00
17.00
31.0
133.00
3
8
1847114
0
271553616CM
36.00
16.00
17.00
31.0
133.00
3
8
1847118
0
271553616CMX
36.00
16.00
17.00
31.0
133.00
3
8
1847119
0
271554018AM
40.00
18.00
19.00
36.0
140.00
3
8
1847124
0
271554018CM
40.00
18.00
19.00
36.0
140.00
3
8
1847130
0
271554018CMX
40.00
18.00
19.00
36.0
140.00
3
8
1847131
0
271554520AM
45.00
20.00
20.00
37.0
143.00
3
8
1847138
0
271554520CM
45.00
20.00
20.00
37.0
143.00
3
8
1847143
0
271554520CMX
45.00
20.00
20.00
37.0
143.00
3
8
1847144
0
271555022AM
50.00
22.00
25.00
46.0
177.00
4
8
1847148
0
271555022CM
50.00
22.00
25.00
46.0
177.00
4
8
1847153
0
271555022CMX
50.00
22.00
25.00
46.0
177.00
4
8
1847154
0
271555624AM
56.00
24.00
27.00
49.0
182.00
4
8
1847158
0
271555624CM
56.00
24.00
27.00
49.0
182.00
4
8
1847161
0
271555624CMX
56.00
24.00
27.00
49.0
182.00
4
8
1847163
0
Click here for the Cutting Parameters for this family
