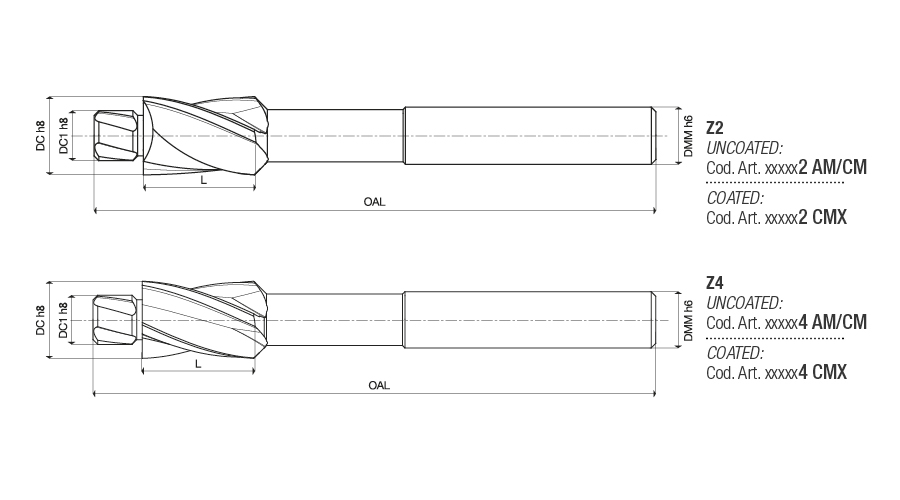

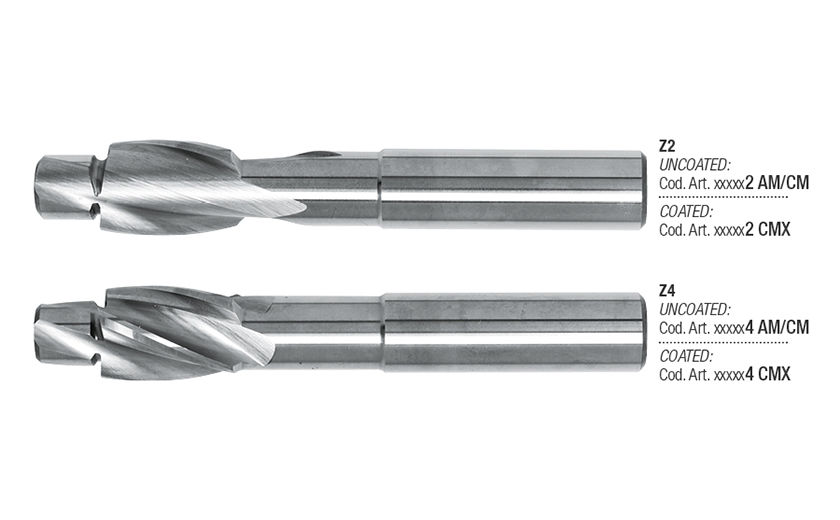

28105 : Counterbores

SKIN

UNI 6841

Designation	GICODE	SCREW	DC	DCN	APMX	OAL	DCONMS	NOF	GICAT	GIREM	giic
281050302AM			5.90	3.20	12.00	70.00	6.00	2	1847627		0
281050302CM			5.90	3.20	12.00	70.00	6.00	2	1847630		0
281050302CMX			5.90	3.20	12.00	70.00	6.00	2	1847631		0
281050304AM			5.90	3.20	12.00	70.00	6.00	4	1847635		0
281050304CM			5.90	3.20	12.00	70.00	6.00	4	1847638		0
281050304CMX			5.90	3.20	12.00	70.00	6.00	4	1847639		0
281050402AM			7.40	4.30	12.00	70.00	8.00	2	1847643		0
281050402CM			7.40	4.30	12.00	70.00	8.00	2	1847646		0
281050402CMX			7.40	4.30	12.00	70.00	8.00	2	1847647		0
281050404AM			7.40	4.30	12.00	70.00	8.00	4	1847651		0
281050404CM			7.40	4.30	12.00	70.00	8.00	4	1847655		0
281050404CMX			7.40	4.30	12.00	70.00	8.00	4	1847656		0
281050502AM			9.40	5.30	14.00	90.00	10.00	2	1847662		0
281050502CM			9.40	5.30	14.00	90.00	10.00	2	1847665		0
281050502CMX			9.40	5.30	14.00	90.00	10.00	2	1847666		0
281050504AM			9.40	5.30	14.00	90.00	10.00	4	1847672		0
281050504CM			9.40	5.30	14.00	90.00	10.00	4	1847676		0
281050504CMX			9.40	5.30	14.00	90.00	10.00	4	1847677		0
281050602AM			10.40	6.40	16.00	100.00	10.00	2	1847683		0
281050602CM			10.40	6.40	16.00	100.00	10.00	2	1847686		0
281050602CMX			10.40	6.40	16.00	100.00	10.00	2	1847687		0
281050604AM			10.40	6.40	16.00	100.00	10.00	4	1847691		0
281050604CM			10.40	6.40	16.00	100.00	10.00	4	1847695		0
281050604CMX			10.40	6.40	16.00	100.00	10.00	4	1847696		0
281050802AM			13.50	8.40	20.00	115.00	12.00	2	1847703		0
281050802CM			13.50	8.40	20.00	115.00	12.00	2	1847706		0
281050802CMX			13.50	8.40	20.00	115.00	12.00	2	1847707		0
281050804AM			13.50	8.40	20.00	115.00	12.00	4	1847712		0
281050804CM			13.50	8.40	20.00	115.00	12.00	4	1847718		0
281050804CMX			13.50	8.40	20.00	115.00	12.00	4	1847719		0
281051002AM			16.50	10.50	25.00	120.00	12.00	2	1847725		0
281051002CM			16.50	10.50	25.00	120.00	12.00	2	1847728		0
281051002CMX			16.50	10.50	25.00	120.00	12.00	2	1847729		0
281051004AM			16.50	10.50	25.00	120.00	12.00	4	1847734		0
281051004CM			16.50	10.50	25.00	120.00	12.00	4	1847738		0
281051004CMX			16.50	10.50	25.00	120.00	12.00	4	1847739		0
281051202AM			19.00	13.00	25.00	120.00	16.00	2	1847745		0
281051202CM			19.00	13.00	25.00	120.00	16.00	2	1847749		0
281051202CMX			19.00	13.00	25.00	120.00	16.00	2	1847750		0
281051204AM			19.00	13.00	25.00	120.00	16.00	4	1847754		0
281051204CM			19.00	13.00	25.00	120.00	16.00	4	1847758		0
281051204CMX			19.00	13.00	25.00	120.00	16.00	4	1847759		0
281051402AM			23.00	15.00	30.00	130.00	16.00	2	1847765		0
281051402CM			23.00	15.00	30.00	130.00	16.00	2	1847768		0
281051402CMX			23.00	15.00	30.00	130.00	16.00	2	1847769		0
281051404AM			23.00	15.00	30.00	130.00	16.00	4	1847772		0
281051404CM			23.00	15.00	30.00	130.00	16.00	4	1847776		0
281051404CMX			23.00	15.00	30.00	130.00	16.00	4	1847777		0
281051602AM			25.00	17.00	35.00	155.00	20.00	2	1847781		0
281051602CM			25.00	17.00	35.00	155.00	20.00	2	1847784		0
281051602CMX			25.00	17.00	35.00	155.00	20.00	2	1847785		0
281051604AM			25.00	17.00	35.00	155.00	20.00	4	1847788		0
281051604CM			25.00	17.00	35.00	155.00	20.00	4	1847791		0
281051604CMX			25.00	17.00	35.00	155.00	20.00	4	1847792		0
281051802AM			28.00	19.00	40.00	160.00	20.00	2	1847796		0
281051802CM			28.00	19.00	40.00	160.00	20.00	2	1847799		0
281051802CMX			28.00	19.00	40.00	160.00	20.00	2	1847800		0
281051804AM			28.00	19.00	40.00	160.00	20.00	4	1847802		0
281051804CM			28.00	19.00	40.00	160.00	20.00	4	1847805		0
281051804CMX			28.00	19.00	40.00	160.00	20.00	4	1847806		0
281052002AM			31.00	21.00	50.00	180.00	20.00	2	1847808		0
281052002CM			31.00	21.00	50.00	180.00	20.00	2	1847811		0
281052002CMX			31.00	21.00	50.00	180.00	20.00	2	1847812		0
281052004AM			31.00	21.00	50.00	180.00	20.00	4	1847814		0
281052004CM			31.00	21.00	50.00	180.00	20.00	4	1847817		0
281052004CMX			31.00	21.00	50.00	180.00	20.00	4	1847818		0
281052202AM			34.00	23.00	50.00	185.00	22.00	2	1847820		0
281052202CM			34.00	23.00	50.00	185.00	22.00	2	1847823		0
281052202CMX			34.00	23.00	50.00	185.00	22.00	2	1847824		0
281052204AM			34.00	23.00	50.00	185.00	22.00	4	1847826		0
281052204CM			34.00	23.00	50.00	185.00	22.00	4	1847829		0
281052204CMX			34.00	23.00	50.00	185.00	22.00	4	1847830		0
281052402AM			37.00	25.00	50.00	200.00	22.00	2	1847832		0
281052402CM			37.00	25.00	50.00	200.00	22.00	2	1847835		0
281052402CMX			37.00	25.00	50.00	200.00	22.00	2	1847836		0
281052404AM			37.00	25.00	50.00	200.00	22.00	4	1847838		0
281052404CM			37.00	25.00	50.00	200.00	22.00	4	1847841		0
281052404CMX			37.00	25.00	50.00	200.00	22.00	4	1847842		0

Click here for the Cutting Parameters for this family
