Milling
>
>
28505
Milling
Main Application
Cutting Parameters
for this family
28505 :

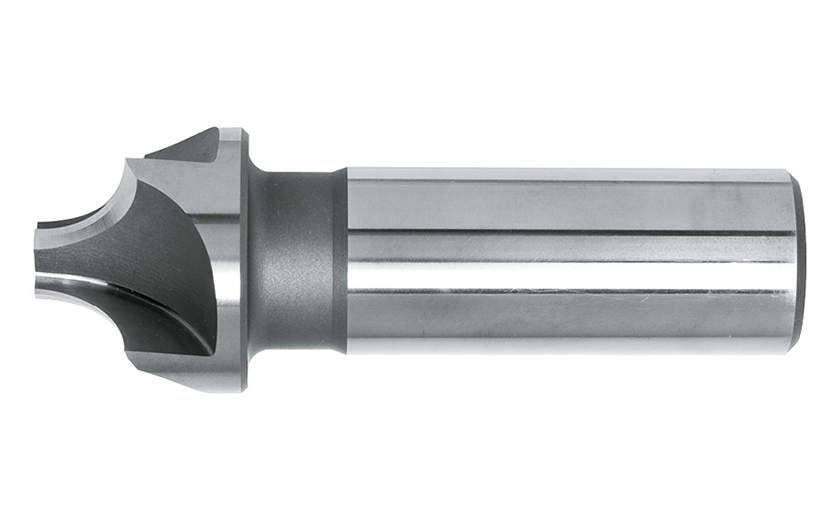

Counterbores

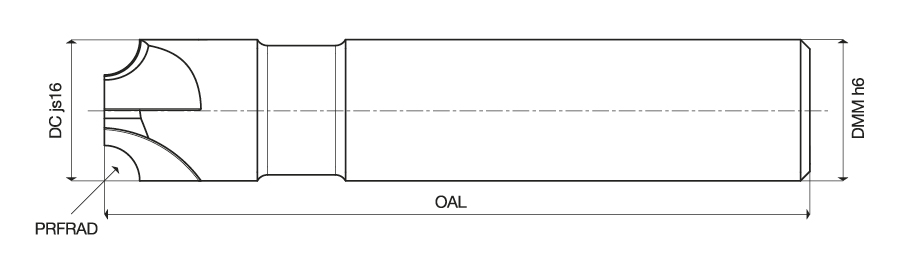

Designation
GICODE
PRFRAD
DC
OAL
DCONMS
NOF
GICAT
GIREM
giic
285050100AM
1.00
10.00
60.00
10.00
4
1848017
0
285050100CM
1.00
10.00
60.00
10.00
4
1848026
0
285050100CMX
1.00
10.00
60.00
10.00
4
1848029
0
285050150AM
1.50
10.00
60.00
10.00
4
1848039
0
285050150CM
1.50
10.00
60.00
10.00
4
1848047
0
285050150CMX
1.50
10.00
60.00
10.00
4
1848050
0
285050200AM
2.00
10.00
60.00
10.00
4
1848060
0
285050200CM
2.00
10.00
60.00
10.00
4
1848068
0
285050200CMX
2.00
10.00
60.00
10.00
4
1848071
0
285050250AM
2.50
10.00
60.00
10.00
4
1848082
0
285050250CM
2.50
10.00
60.00
10.00
4
1848091
0
285050250CMX
2.50
10.00
60.00
10.00
4
1848094
0
285050300AM
3.00
12.00
60.00
12.00
4
1848102
0
285050300CM
3.00
12.00
60.00
12.00
4
1848112
0
285050300CMX
3.00
12.00
60.00
12.00
4
1848115
0
285050400AM
4.00
15.00
60.00
12.00
4
1848126
0
285050400CM
4.00
15.00
60.00
12.00
4
1848135
0
285050400CMX
4.00
15.00
60.00
12.00
4
1848138
0
285050500AM
5.00
18.00
70.00
16.00
4
1848149
0
285050500CM
5.00
18.00
70.00
16.00
4
1848158
0
285050500CMX
5.00
18.00
70.00
16.00
4
1848161
0
285050600AM
6.00
21.00
70.00
16.00
4
1848175
0
285050600CM
6.00
21.00
70.00
16.00
4
1848183
0
285050600CMX
6.00
21.00
70.00
16.00
4
1848186
0
285050700AM
7.00
24.00
70.00
16.00
4
1848199
0
285050700CM
7.00
24.00
70.00
16.00
4
1848208
0
285050700CMX
7.00
24.00
70.00
16.00
4
1848211
0
285050800AM
8.00
24.00
70.00
16.00
4
1848219
0
285050800CM
8.00
24.00
70.00
16.00
4
1848227
0
285050800CMX
8.00
24.00
70.00
16.00
4
1848230
0
285050900AM
9.00
28.00
85.00
20.00
4
1848240
0
285050900CM
9.00
28.00
85.00
20.00
4
1848247
0
285050900CMX
9.00
28.00
85.00
20.00
4
1848250
0
285051000AM
10.00
28.00
85.00
20.00
4
1848270
0
285051000CM
10.00
28.00
85.00
20.00
4
1848278
0
285051000CMX
10.00
28.00
85.00
20.00
4
1848281
0
285051001CMX
Y
10.00
28.00
85.00
25.00
4
1848302
0
285051200AM
12.00
35.00
100.00
20.00
4
1848343
0
285051200CM
12.00
35.00
100.00
20.00
4
1848350
0
285051200CMX
12.00
35.00
100.00
20.00
4
1848353
0
285051250AM
12.50
35.00
100.00
20.00
4
1848376
0
285051250CM
12.50
35.00
100.00
20.00
4
1848384
0
285051250CMX
12.50
35.00
100.00
20.00
4
1848387
0
285051400AM
14.00
42.00
100.00
25.00
4
1848428
0
285051400CM
14.00
42.00
100.00
25.00
4
1848436
0
285051400CMX
14.00
42.00
100.00
25.00
4
1848439
0
285051500AM
15.00
48.00
105.00
25.00
5
1848445
0
285051500CM
15.00
48.00
105.00
25.00
5
1848453
0
285051500CMX
15.00
48.00
105.00
25.00
5
1848456
0
285051600AM
16.00
48.00
105.00
25.00
5
1848464
0
285051600CM
16.00
48.00
105.00
25.00
5
1848471
0
285051600CMX
16.00
48.00
105.00
25.00
5
1848474
0
285051800AM
18.00
52.00
115.00
32.00
5
1848478
0
285051800CM
18.00
52.00
115.00
32.00
5
1848485
0
285051800CMX
18.00
52.00
115.00
32.00
5
1848488
0
285052000AM
20.00
60.00
115.00
32.00
6
1848492
0
285052000CM
20.00
60.00
115.00
32.00
6
1848499
0
285052000CMX
20.00
60.00
115.00
32.00
6
1848502
0
Click here for the Cutting Parameters for this family
