UOP Cutting Tools - Metal Working Tools - Milling -

Cutting Parameters
for this family

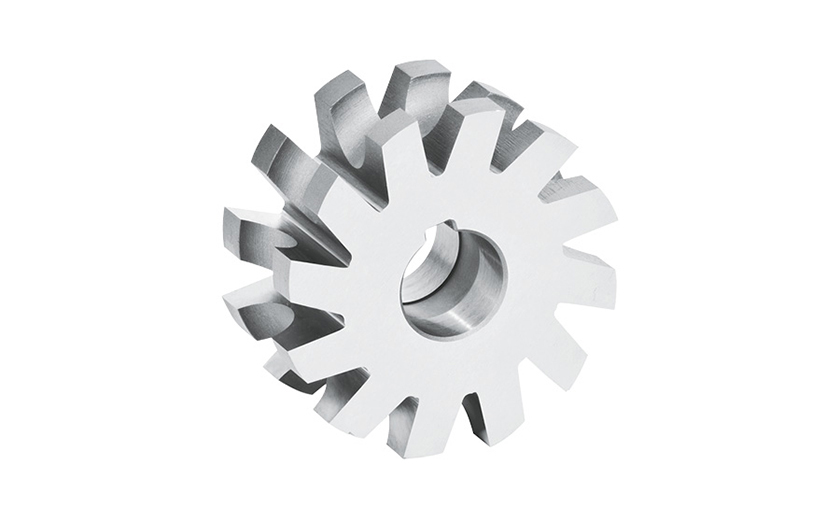

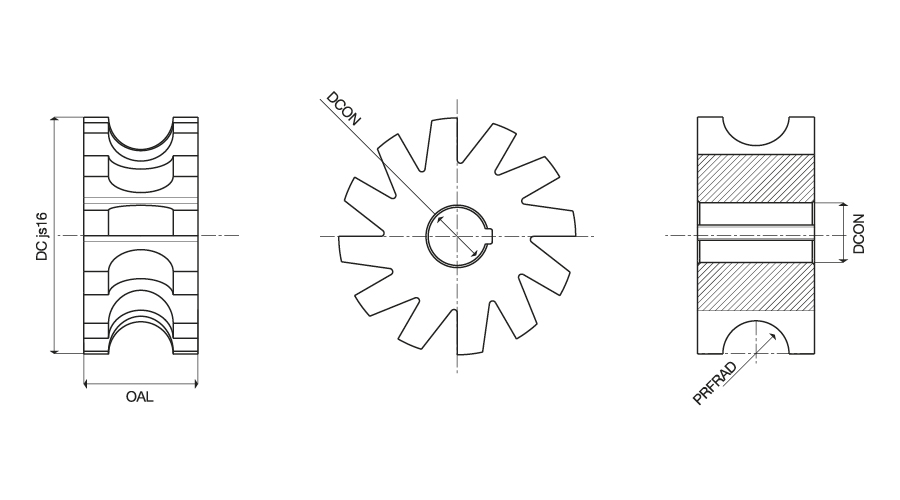

29105 : Form relieved concave milling cutters

Designation	PRFRAD	DC	CW	DCONMS	NOF	GICAT	giic
291050100AM	1.00	56.00	8.00	22.00	14	1848795	0
291050100AMX	1.00	56.00	8.00	22.00	14	1848796	0
291050150AM	1.50	56.00	8.00	22.00	14	1848800	0
291050150AMX	1.50	56.00	8.00	22.00	14	1848801	0
291050200AM	2.00	56.00	9.00	22.00	14	1848804	0
291050200AMX	2.00	56.00	9.00	22.00	14	1848805	0
291050250AM	2.50	56.00	10.00	22.00	14	1848809	0
291050250AMX	2.50	56.00	10.00	22.00	14	1848810	0
291050300AM	3.00	63.00	12.00	22.00	14	1848813	0
291050300AMX	3.00	63.00	12.00	22.00	14	1848814	0
291050350AM	3.50	63.00	14.00	22.00	14	1848819	0
291050350AMX	3.50	63.00	14.00	22.00	14	1848820	0
291050400AM	4.00	63.00	16.00	22.00	14	1848823	0
291050400AMX	4.00	63.00	16.00	22.00	14	1848824	0
291050450AM	4.50	63.00	18.00	22.00	12	1848827	0
291050450AMX	4.50	63.00	18.00	22.00	12	1848828	0
291050500AM	5.00	63.00	20.00	22.00	12	1848831	0
291050500AMX	5.00	63.00	20.00	22.00	12	1848832	0
291050550AM	5.50	63.00	22.00	22.00	12	1848836	0
291050550AMX	5.50	63.00	22.00	22.00	12	1848837	0
291050600AM	6.00	70.00	24.00	22.00	12	1848841	0
291050600AMX	6.00	70.00	24.00	22.00	12	1848842	0
291050650AM	6.50	70.00	26.00	22.00	12	1848846	0
291050650AMX	6.50	70.00	26.00	22.00	12	1848847	0
291050700AM	7.00	70.00	28.00	22.00	12	1848849	0
291050700AMX	7.00	70.00	28.00	22.00	12	1848850	0
291050750AM	7.50	80.00	30.00	27.00	12	1848854	0
291050750AMX	7.50	80.00	30.00	27.00	12	1848855	0
291050800AM	8.00	80.00	32.00	27.00	12	1848859	0
291050800AMX	8.00	80.00	32.00	27.00	12	1848860	0
291050850AM	8.50	80.00	34.00	27.00	12	1848864	0
291050850AMX	8.50	80.00	34.00	27.00	12	1848865	0
291050900AM	9.00	90.00	36.00	27.00	12	1848868	0
291050900AMX	9.00	90.00	36.00	27.00	12	1848869	0
291050950AM	9.50	90.00	38.00	27.00	12	1848871	0
291050950AMX	9.50	90.00	38.00	27.00	12	1848872	0
291051000AM	10.00	90.00	40.00	27.00	12	1848874	0
291051000AMX	10.00	90.00	40.00	27.00	12	1848875	0
291051100AM	11.00	100.00	42.00	27.00	12	1848878	0
291051250AM	12.50	100.00	46.00	27.00	12	1848884	0
291051500AM	15.00	110.00	53.00	32.00	12	1848894	1
291052000AM	20.00	125.00	70.00	32.00	12	1848912	1
