UOP Cutting Tools - Metal Working Tools - Milling -

Cutting Parameters
for this family

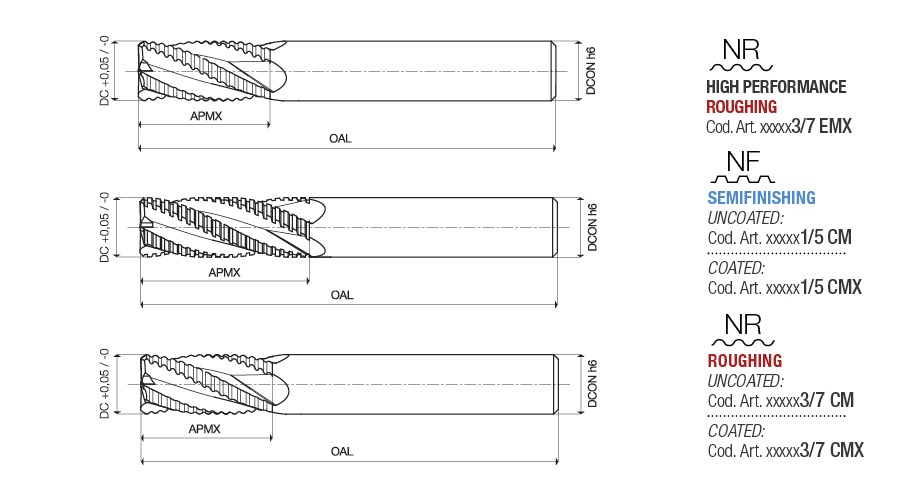

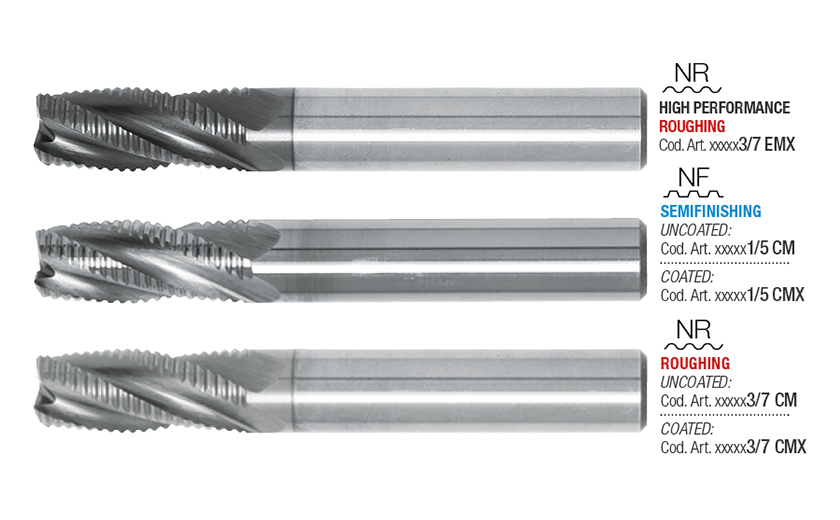

21105 : Roughing and semi-finishing end mills with center cutting

Designation	GICODE	DC	APMX	OAL	DCONMS	NOF	GICAT	giic
211050601CM		6.00	13.00	57.00	6.00	3	1833946	0
211050601CMX		6.00	13.00	57.00	6.00	3	1833949	0
211050603CM		6.00	13.00	57.00	6.00	3	1833984	0
211050603CMX		6.00	13.00	57.00	6.00	3	1833987	0
211050701CM		7.00	16.00	66.00	10.00	3	1834030	0
211050701CMX		7.00	16.00	66.00	10.00	3	1834033	0
211050703CM		7.00	16.00	66.00	10.00	3	1834054	0
211050703CMX		7.00	16.00	66.00	10.00	3	1834057	0
211050801CM		8.00	19.00	69.00	10.00	4	1834091	0
211050801CMX		8.00	19.00	69.00	10.00	4	1834094	0
211050803CM		8.00	19.00	69.00	10.00	4	1834131	0
211050803CMX		8.00	19.00	69.00	10.00	4	1834134	0
211050901CM		9.00	19.00	69.00	10.00	4	1834177	0
211050901CMX		9.00	19.00	69.00	10.00	4	1834180	0
211050903CM		9.00	19.00	69.00	10.00	4	1834208	0
211050903CMX		9.00	19.00	69.00	10.00	4	1834211	0
211051001CM		10.00	22.00	72.00	10.00	4	1834250	0
211051001CMX		10.00	22.00	72.00	10.00	4	1834253	0
211051003CM		10.00	22.00	72.00	10.00	4	1834304	0
211051003CMX		10.00	22.00	72.00	10.00	4	1834307	0
211051101CM		11.00	22.00	79.00	12.00	4	1834353	0
211051101CMX		11.00	22.00	79.00	12.00	4	1834356	0
211051103CM		11.00	22.00	79.00	12.00	4	1834384	0
211051103CMX		11.00	22.00	79.00	12.00	4	1834387	0
211051201CM		12.00	26.00	83.00	12.00	4	1834422	0
211051201CMX		12.00	26.00	83.00	12.00	4	1834425	0
211051203CM		12.00	26.00	83.00	12.00	4	1834475	0
211051203CMX		12.00	26.00	83.00	12.00	4	1834478	0
211051301CM		13.00	26.00	83.00	12.00	4	1834524	0
211051301CMX		13.00	26.00	83.00	12.00	4	1834527	0
211051303CM		13.00	26.00	83.00	12.00	4	1834546	0
211051303CMX		13.00	26.00	83.00	12.00	4	1834549	0
211051401CM		14.00	26.00	83.00	12.00	4	1834580	0
211051401CMX		14.00	26.00	83.00	12.00	4	1834583	0
211051403CM		14.00	26.00	83.00	12.00	4	1834624	0
211051403CMX		14.00	26.00	83.00	12.00	4	1834627	0
211051501CM		15.00	32.00	92.00	16.00	4	1834670	0
211051501CMX		15.00	32.00	92.00	16.00	4	1834673	0
211051503CM		15.00	32.00	92.00	16.00	4	1834705	0
211051503CMX		15.00	32.00	92.00	16.00	4	1834708	0
211051601CM		16.00	32.00	92.00	16.00	4	1834744	0
211051601CMX		16.00	32.00	92.00	16.00	4	1834747	0
211051603CM		16.00	32.00	92.00	16.00	4	1834792	0
211051603CMX		16.00	32.00	92.00	16.00	4	1834795	0
211051701CM		17.00	32.00	92.00	16.00	4	1834838	0
211051701CMX		17.00	32.00	92.00	16.00	4	1834841	0
211051703CM		17.00	32.00	92.00	16.00	4	1834860	0
211051703CMX		17.00	32.00	92.00	16.00	4	1834863	0
211051801CM		18.00	32.00	92.00	16.00	4	1834891	0
211051801CMX		18.00	32.00	92.00	16.00	4	1834894	0
211051803CM		18.00	32.00	92.00	16.00	4	1834926	0
211051803CMX		18.00	32.00	92.00	16.00	4	1834929	0
211052001CM		20.00	38.00	98.00	16.00	4	1835022	0
211052001CMX		20.00	38.00	98.00	16.00	4	1835025	0
211052003CM		20.00	38.00	98.00	16.00	4	1835057	0
211052003CMX		20.00	38.00	98.00	16.00	4	1835060	0
211052005CM		20.00	38.00	104.00	20.00	4	1835103	0
211052005CMX		20.00	38.00	104.00	20.00	4	1835106	0
211052007CM		20.00	38.00	104.00	20.00	4	1835144	0
211052007CMX		20.00	38.00	104.00	20.00	4	1835147	0
211052201CM		22.00	38.00	104.00	20.00	4	1835191	0
211052201CMX		22.00	38.00	104.00	20.00	4	1835194	0
211052203CM		22.00	38.00	104.00	20.00	4	1835220	0
211052203CMX		22.00	38.00	104.00	20.00	4	1835223	0
211052205CM		22.00	38.00	114.00	25.00	4	1835255	0
211052205CMX		22.00	38.00	114.00	25.00	4	1835258	0
211052401CMX		24.00	45.00	121.00	25.00	5	1835296	1
211052501CM		25.00	45.00	121.00	25.00	5	1835345	0
211052501CMX		25.00	45.00	121.00	25.00	5	1835348	0
211052503CM	Y	25.00	45.00	121.00	25.00	5	1835371	0
211052503CMX		25.00	45.00	121.00	25.00	5	1835374	0
211052603CM		26.00	45.00	121.00	25.00	5	1835427	0
211052603CMX		26.00	45.00	121.00	25.00	5	1835431	0
211052803CM		28.00	45.00	121.00	25.00	5	1835475	0
211052803CMX		28.00	45.00	121.00	25.00	5	1835478	0
211053001CM		30.00	45.00	121.00	25.00	5	1835507	0
211053001CMX		30.00	45.00	121.00	25.00	5	1835510	0
211053003CM		30.00	45.00	121.00	25.00	5	1835530	0
211053003CMX		30.00	45.00	121.00	25.00	5	1835533	0
211053201CM		32.00	53.00	133.00	32.00	5	1835566	0
211053201CMX		32.00	53.00	133.00	32.00	5	1835569	0
211053203CM	Y	32.00	53.00	133.00	32.00	5	1835586	0
211053203CMX		32.00	53.00	133.00	32.00	5	1835589	0
211053603CM		36.00	53.00	133.00	32.00	6	1835640	0
211053603CMX		36.00	53.00	133.00	32.00	6	1835643	0
211054003CM		40.00	63.00	143.00	32.00	6	1835682	0
211054003CMX		40.00	63.00	143.00	32.00	6	1835685	0
