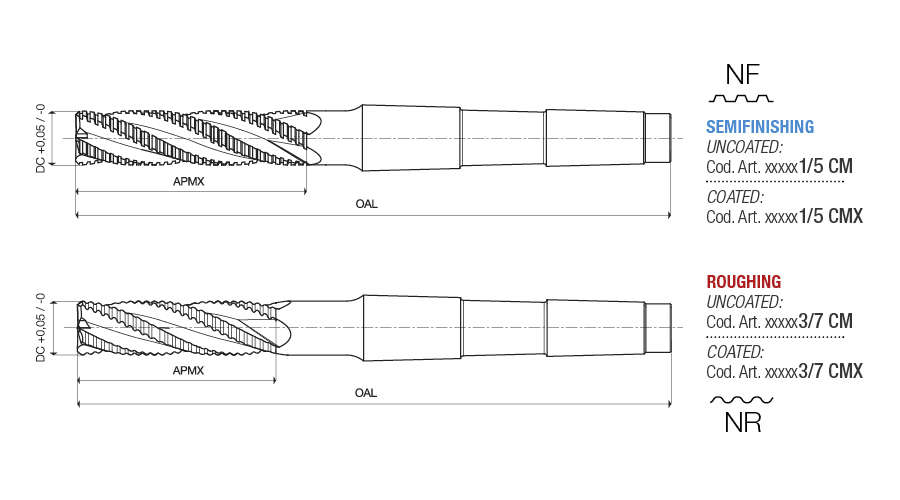

21155 : Roughing and semi-finishing end mills with center cutting

Designation	DC	APMX	OAL	M.T.	NOF	GICAT
211551601CM	16.00	63.00	148.00	2	4	1839876
211551601CMX	16.00	63.00	148.00	2	4	1839877
211551603CM	16.00	63.00	148.00	2	4	1839885
211551603CMX	16.00	63.00	148.00	2	4	1839886
211551801CM	18.00	63.00	148.00	2	4	1839893
211551801CMX	18.00	63.00	148.00	2	4	1839894
211551803CM	18.00	63.00	148.00	2	4	1839902
211551803CMX	18.00	63.00	148.00	2	4	1839903
211552001CM	20.00	75.00	177.00	3	4	1839915
211552001CMX	20.00	75.00	177.00	3	4	1839916
211552003CM	20.00	75.00	177.00	3	4	1839926
211552003CMX	20.00	75.00	177.00	3	4	1839927
211552201CM	22.00	75.00	177.00	3	4	1839938
211552201CMX	22.00	75.00	177.00	3	4	1839939
211552203CM	22.00	75.00	177.00	3	4	1839946
211552203CMX	22.00	75.00	177.00	3	4	1839947
211552401CM	24.00	90.00	192.00	3	5	1839956
211552401CMX	24.00	90.00	192.00	3	5	1839957
211552403CM	24.00	90.00	192.00	3	5	1839964
211552403CMX	24.00	90.00	192.00	3	5	1839965
211552501CM	25.00	90.00	192.00	3	5	1839974
211552501CMX	25.00	90.00	192.00	3	5	1839975
211552503CM	25.00	90.00	192.00	3	5	1839984
211552503CMX	25.00	90.00	192.00	3	5	1839985
211552601CM	26.00	90.00	192.00	3	5	1839994
211552601CMX	26.00	90.00	192.00	3	5	1839995
211552603CM	26.00	90.00	192.00	3	5	1840001
211552603CMX	26.00	90.00	192.00	3	5	1840002
211552801CM	28.00	90.00	192.00	3	5	1840010
211552801CMX	28.00	90.00	192.00	3	5	1840011
211552803CM	28.00	90.00	192.00	3	5	1840018
211552803CMX	28.00	90.00	192.00	3	5	1840019
211553001CM	30.00	90.00	192.00	3	5	1840027
211553001CMX	30.00	90.00	192.00	3	5	1840028
211553003CM	30.00	90.00	192.00	3	5	1840037
211553003CMX	30.00	90.00	192.00	3	5	1840038
211553201CM	32.00	106.00	231.00	4	5	1840047
211553201CMX	32.00	106.00	231.00	4	5	1840048
211553203CM	32.00	106.00	231.00	4	5	1840055
211553203CMX	32.00	106.00	231.00	4	5	1840056
211553401CM	34.00	106.00	231.00	4	5	1840065
211553401CMX	34.00	106.00	231.00	4	5	1840066
211553403CM	34.00	106.00	231.00	4	5	1840070
211553403CMX	34.00	106.00	231.00	4	5	1840071
211553501CM	35.00	106.00	231.00	4	6	1840075
211553501CMX	35.00	106.00	231.00	4	6	1840076
211553503CM	35.00	106.00	231.00	4	6	1840083
211553503CMX	35.00	106.00	231.00	4	6	1840084
211553601CM	36.00	106.00	231.00	4	6	1840094
211553601CMX	36.00	106.00	231.00	4	6	1840095
211553603CM	36.00	106.00	231.00	4	6	1840101
211553603CMX	36.00	106.00	231.00	4	6	1840102
211553801CM	38.00	125.00	250.00	4	6	1840107
211553801CMX	38.00	125.00	250.00	4	6	1840108
211553803CM	38.00	125.00	250.00	4	6	1840114
211553803CMX	38.00	125.00	250.00	4	6	1840115
211554001CM	40.00	125.00	250.00	4	6	1840122
211554001CMX	40.00	125.00	250.00	4	6	1840123
211554003CM	40.00	125.00	250.00	4	6	1840131
211554003CMX	40.00	125.00	250.00	4	6	1840132
211554501CM	45.00	125.00	250.00	4	6	1840142
211554501CMX	45.00	125.00	250.00	4	6	1840143
211554503CM	45.00	125.00	250.00	4	6	1840147
211554503CMX	45.00	125.00	250.00	4	6	1840148
211555001CM	50.00	150.00	275.00	4	7	1840155
211555001CMX	50.00	150.00	275.00	4	7	1840156
211555003CM	50.00	150.00	275.00	4	7	1840161
211555003CMX	50.00	150.00	275.00	4	7	1840162
211555005CM	50.00	150.00	308.00	5	7	1840166
211555005CMX	50.00	150.00	308.00	5	7	1840167
211555007CM	50.00	150.00	308.00	5	7	1840171
211555007CMX	50.00	150.00	308.00	5	7	1840172
211555601CM	56.00	150.00	308.00	5	7	1840176
211555601CMX	56.00	150.00	308.00	5	7	1840177
211555603CM	56.00	150.00	308.00	5	7	1840181
211555603CMX	56.00	150.00	308.00	5	7	1840182
211556301CM	63.00	180.00	338.00	5	8	1840186
211556301CMX	63.00	180.00	338.00	5	8	1840187
211556303CM	63.00	180.00	338.00	5	8	1840191
211556303CMX	63.00	180.00	338.00	5	8	1840192
