UOP Cutting Tools - Metal Working Tools - Milling -

Cutting Parameters
for this family

14505 : Frese TORNADO.

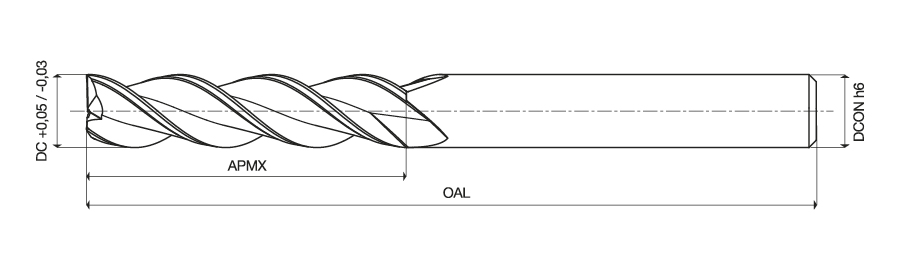

Designation	DC	APMX	OAL	DCONMS	NOF	GICAT
145050300CM	3.00	8.00	52.00	6.00	3	1818232
145050300CMX	3.00	8.00	52.00	6.00	3	1818235
145050400CM	4.00	11.00	55.00	6.00	3	1818245
145050400CMX	4.00	11.00	55.00	6.00	3	1818248
145050500CM	5.00	13.00	57.00	6.00	3	1818259
145050500CMX	5.00	13.00	57.00	6.00	3	1818262
145050600CM	6.00	13.00	57.00	6.00	3	1818280
145050600CMX	6.00	13.00	57.00	6.00	3	1818283
145050700CM	7.00	16.00	66.00	10.00	3	1818306
145050700CMX	7.00	16.00	66.00	10.00	3	1818309
145050800CM	8.00	19.00	69.00	10.00	3	1818322
145050800CMX	8.00	19.00	69.00	10.00	3	1818325
145050900CM	9.00	19.00	69.00	10.00	3	1818350
145050900CMX	9.00	19.00	69.00	10.00	3	1818353
145051000CM	10.00	22.00	72.00	10.00	3	1818367
145051000CMX	10.00	22.00	72.00	10.00	3	1818370
145051200CM	12.00	26.00	83.00	12.00	3	1818411
145051200CMX	12.00	26.00	83.00	12.00	3	1818414
145051400CMX	14.00	26.00	83.00	12.00	3	1818456
145051600CM	16.00	32.00	92.00	16.00	3	1818489
145051600CMX	16.00	32.00	92.00	16.00	3	1818492
145051800CM	18.00	32.00	92.00	16.00	3	1818531
145052000CM	20.00	38.00	104.00	20.00	3	1818565
145052000CMX	20.00	38.00	104.00	20.00	3	1818568

Click here for the Cutting Parameters for this family
