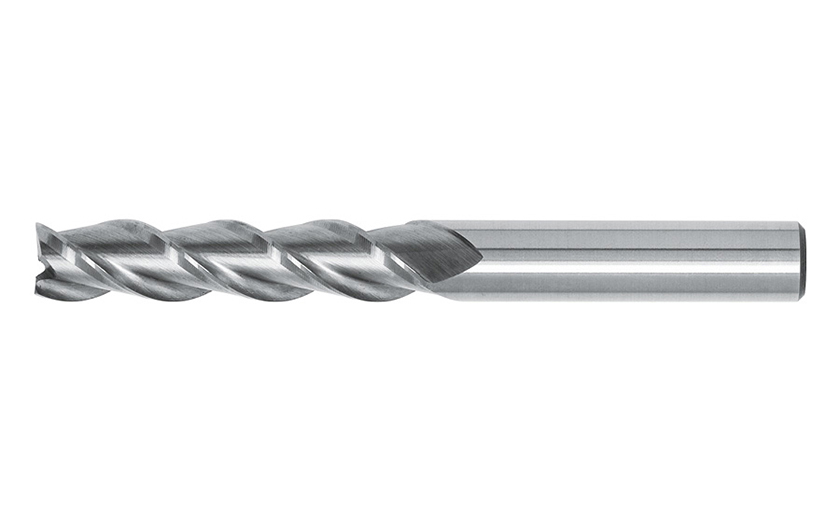

UOP Cutting Tools - Metal Working Tools - Milling -

14820 :

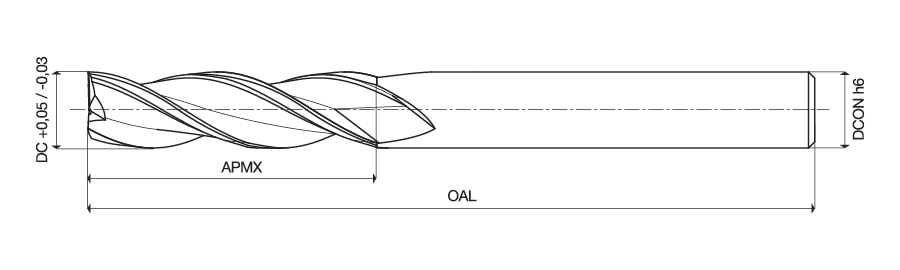

Designation	DC	APMX	OAL	DCONMS	NOF	GICAT
148200300CM	3.00	18.00	62.00	6.00	3	1820063
148200300CMX	3.00	18.00	62.00	6.00	3	1820066
148200400CM	4.00	22.00	65.00	6.00	3	1820077
148200400CMX	4.00	22.00	65.00	6.00	3	1820080
148200500CM	5.00	26.00	70.00	6.00	3	1820090
148200500CMX	5.00	26.00	70.00	6.00	3	1820093
148200600CM	6.00	30.00	75.00	6.00	3	1820103
148200600CMX	6.00	30.00	75.00	6.00	3	1820106
148200700CM	7.00	34.00	84.00	10.00	3	1820117
148200700CMX	7.00	34.00	84.00	10.00	3	1820120
148200800CM	8.00	34.00	84.00	10.00	3	1820131
148200800CMX	8.00	34.00	84.00	10.00	3	1820134
148200900CM	9.00	40.00	90.00	10.00	3	1820146
148200900CMX	9.00	40.00	90.00	10.00	3	1820149
148201000CM	10.00	40.00	90.00	10.00	3	1820160
148201000CMX	10.00	40.00	90.00	10.00	3	1820163
148201200CM	12.00	56.00	113.00	12.00	3	1820176
148201200CMX	12.00	56.00	113.00	12.00	3	1820179
148201400CM	14.00	63.00	120.00	12.00	3	1820190
148201400CMX	14.00	63.00	120.00	12.00	3	1820193
148201600CM	16.00	63.00	123.00	16.00	3	1820203
148201600CMX	16.00	63.00	123.00	16.00	3	1820206
148201800CM	18.00	71.00	131.00	16.00	3	1820217
148201800CMX	18.00	71.00	131.00	16.00	3	1820220
148202000CM	20.00	71.00	137.00	20.00	3	1820229
148202000CMX	20.00	71.00	137.00	20.00	3	1820232
148202200CM	22.00	80.00	146.00	20.00	3	1820246
148202200CMX	22.00	80.00	146.00	20.00	3	1820249
148202500CM	25.00	80.00	156.00	25.00	3	1820258
148202500CMX	25.00	80.00	156.00	25.00	3	1820261

Click here for the Cutting Parameters for this family

Milling
Main Application
