UOP Cutting Tools - Metal Working Tools - Milling -

Cutting Parameters
for this family

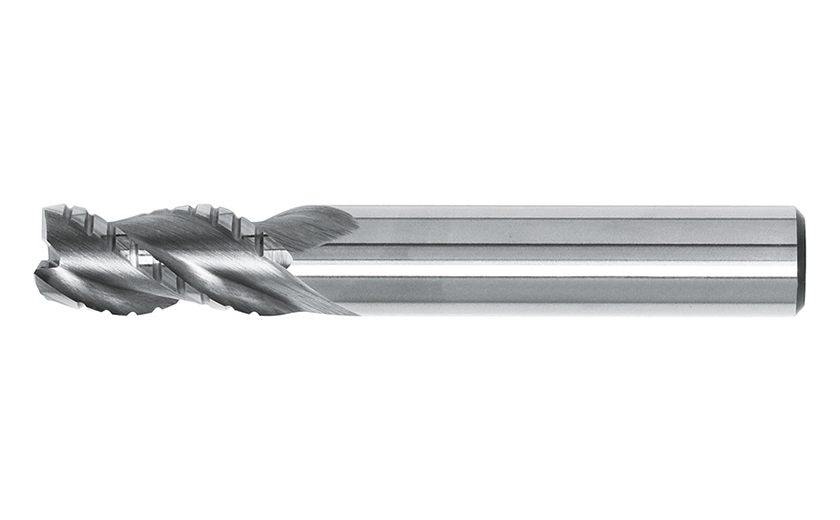

15105 : Frese a tre taglienti a Semifinire.

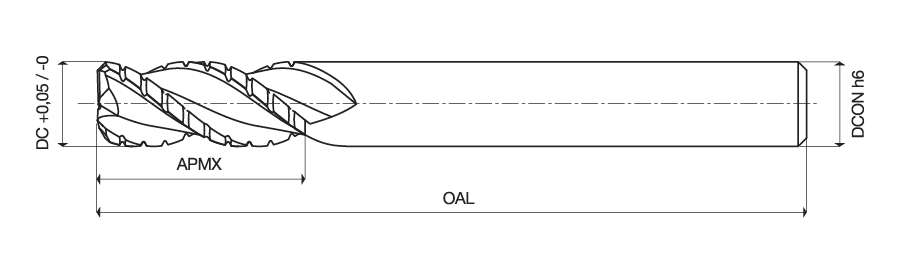

Designation	DC	APMX	OAL	DCONMS	NOF	GICAT
151050600CM	6.00	13.00	57.00	6.00	3	1820826
151050600CMX	6.00	13.00	57.00	6.00	3	1820829
151050800CM	8.00	19.00	69.00	10.00	3	1820841
151050800CMX	8.00	19.00	69.00	10.00	3	1820844
151051000CM	10.00	22.00	72.00	10.00	3	1820862
151051000CMX	10.00	22.00	72.00	10.00	3	1820865
151051200CM	12.00	26.00	83.00	12.00	3	1820884
151051200CMX	12.00	26.00	83.00	12.00	3	1820887
151051400CM	14.00	26.00	83.00	12.00	3	1820900
151051400CMX	14.00	26.00	83.00	12.00	3	1820903
151051500CM	15.00	32.00	92.00	16.00	3	1820914
151051500CMX	15.00	32.00	92.00	16.00	3	1820917
151051600CM	16.00	32.00	92.00	16.00	3	1820929
151051600CMX	16.00	32.00	92.00	16.00	3	1820932
151051800CM	18.00	32.00	92.00	16.00	3	1820950
151051800CMX	18.00	32.00	92.00	16.00	3	1820953
151052000CM	20.00	38.00	104.00	20.00	3	1820965
151052000CMX	20.00	38.00	104.00	20.00	3	1820968
151052500CM	25.00	45.00	121.00	25.00	3	1821002
151052500CMX	25.00	45.00	121.00	25.00	3	1821005

Click here for the Cutting Parameters for this family
