Milling
Main Application

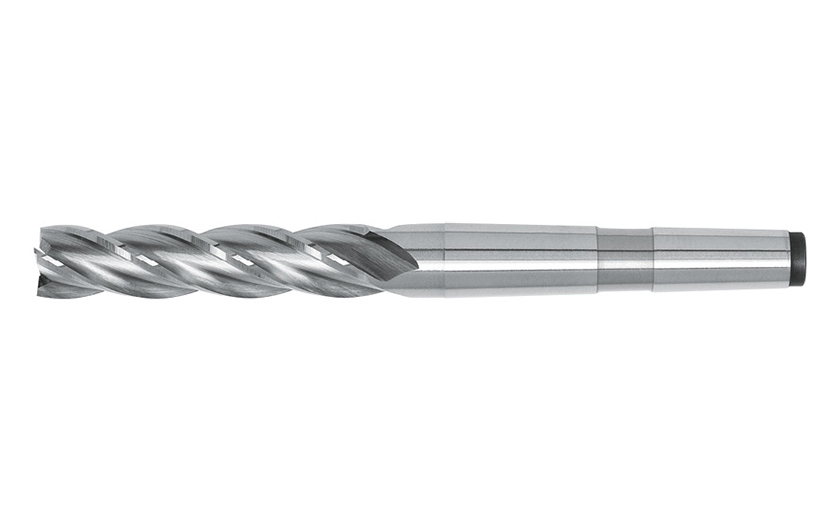

17155 : Finishing end mills

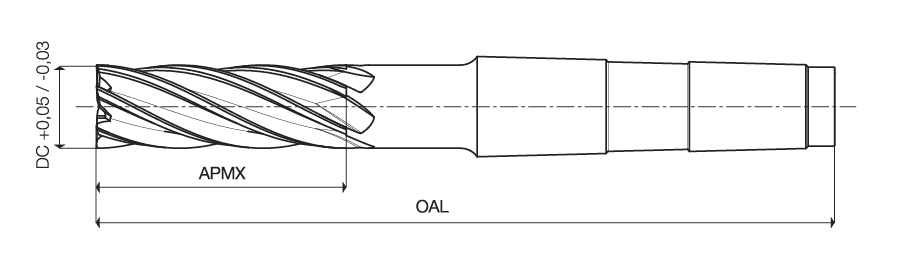

 SKIN  LAMBDA 32  FINISHING CUTTING EDGE PROFILE N  UNI 8250 DIN 845B ISO 164/II  LONG
  DesignationGICODEDCAPMXOALM.T.NOFGICATGIREMgiic
  171551000CM  10.0045.00115.00141824908 0
  171551600CM  16.0063.00148.00241824933 0
  171551600CMX  16.0063.00148.00241824934 0
  171551800CM  18.0063.00148.00241824940 0
  171551800CMX  18.0063.00148.00241824941 0
  171552000CM  20.0075.00177.00341824946 0
  171552000CMX  20.0075.00177.00341824947 0
  171552500CM  25.0090.00192.00351824972 0
  171552500CMX  25.0090.00192.00351824973 0
  171553000CM  30.0090.00192.00361825003 0
  171553000CMX  30.0090.00192.00361825004 0
  171553200CM  32.00106.00231.00461825015 0
  171553200CMX  32.00106.00231.00461825016 0
  171553600CM  36.00106.00231.00461825036 0
  171553600CMX  36.00106.00231.00461825037 0
  171554000CM  40.00125.00250.00481825053 0
  171554000CMX  40.00125.00250.00481825054 0
  171554500CM  45.00125.00250.00481825063 0
  171554500CMX  45.00125.00250.00481825064 0
  171555000CM  50.00150.00308.00581825070 0
  171555000CMX  50.00150.00308.00581825071 0
Click here for the Cutting Parameters for this family
