Milling
Main Application

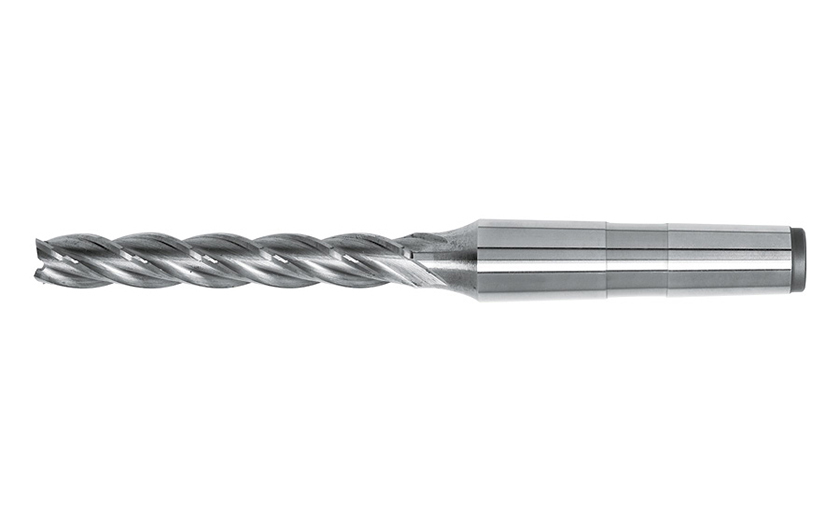

17160 : Finishing end mills


 SKIN  LAMBDA 32  FINISHING CUTTING EDGE PROFILE N  QUALITY STANDARD UOP  EXTRALONG

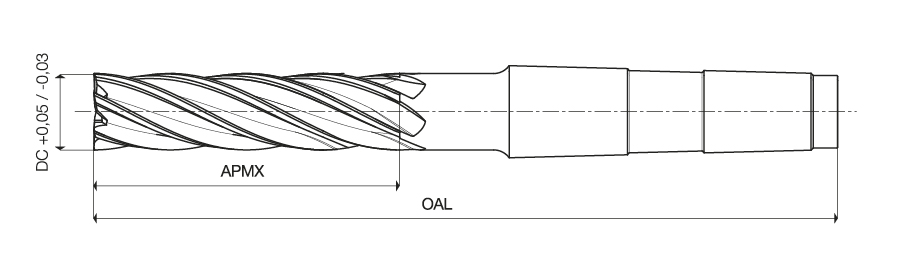

  DesignationGICODEDCAPMXOALM.T.NOFGICATGIREMgiic
  171602000CM  20.00110.00212.00341825133 0
  171602000CMX  20.00110.00212.00341825134 0
  171602500CM  25.00125.00250.00451825160 0
  171602500CMX  25.00125.00250.00451825161 0
  171603000CM  30.00140.00265.00461825182 0
  171603000CMX  30.00140.00265.00461825183 0
  171603200CM  32.00150.00275.00461825191 0
  171603200CMX  32.00150.00275.00461825192 0
  171603600CM  36.00150.00275.00461825210 0
  171603600CMX  36.00150.00275.00461825211 0
  171604000CM  40.00180.00305.00481825226 0
  171604000CMX  40.00180.00305.00481825227 0
  171604500CM  45.00190.00315.00481825233 0
  171604500CMX  45.00190.00315.00481825234 0
  171605000CM  50.00200.00360.00581825238 0
  171605000CMX  50.00200.00360.00581825239 0
Click here for the Cutting Parameters for this family
