Reaming
Main Application

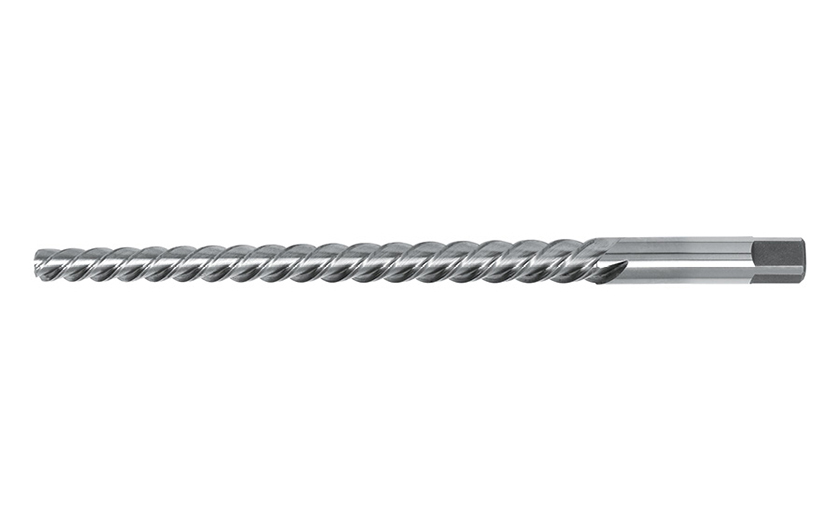

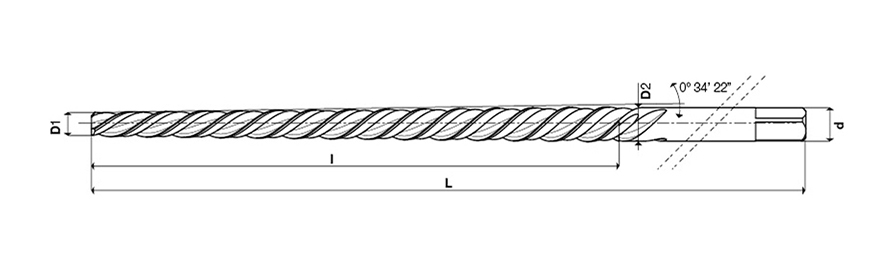

30502 : Tampered reamers, taper 2%


 SKIN  WITH FLAT SQUARE  LAMBDA 45  FINISHING CUTTING EDGE PROFILE N  UNI 6857 DIN ISO
  DesignationGICODEDNOMDTANDTAXAPMXOALDCONMSNOFGICATGIREMgiic
  305020200CM  22348.0065.003.5031849436 0
  305020200CMX  22348.0065.003.5031849437 0
  305020250CM  32353.0075.003.5031849441 0
  305020250CMX  32353.0075.003.5031849442 0
  305020300CM  33463.00100.004.0031849445 0
  305020300CMX  33463.00100.004.0031849446 0
  305020400CM  44575.00115.005.0031849450 0
  305020400CMX  44575.00115.005.0031849451 0
  305020500CM  55787.00135.006.5031849455 0
  305020500CMX  55787.00135.006.5031849456 0
  305020600CM  668119.00170.008.5031849461 0
  305020600CMX  668119.00170.008.5031849462 0
  305020800CM  8811141.00205.0010.5031849468 0
  305020800CMX  8811141.00205.0010.5031849469 0
  305021000CM  101013163.00230.0014.0041849474 0
  305021000CMX  101013163.00230.0014.0041849475 0
  305021200CM  121216194.00275.0018.0041849479 0
  305021200CMX  121216194.00275.0018.0041849480 0
  305021600CM  161621264.00355.0018.0041849484 0
  305021600CMX  161621264.00355.0018.0041849485 0
  305022000CM  202025270.00370.0025.0041849487 0
  305022000CMX  202025270.00370.0025.0041849488 0
Click here for the Cutting Parameters for this family
