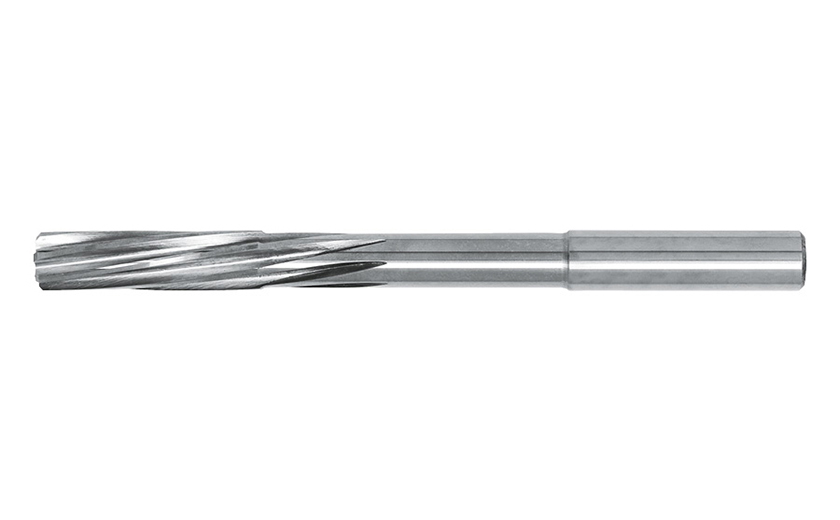

32105 : Machine reamers

SKIN

WELDON ON REQUEST

THREADED ON REQUEST

UNI 6853 DIN 212D ISO 521

Designation	GICODE	DC	APMX	OAL	DCONMS	HELIX	NOF	GICAT	GIREM	giic
321050100CM		1.00	5.00	37.00	1.00	30.0	3	1849788		0
321050100CMX		1.00	5.00	37.00	1.00	30.0	3	1849789		0
321050110CM		1.10	7.00	40.00	1.10	30.0	3	1849794		0
321050110CMX		1.10	7.00	40.00	1.10	30.0	3	1849795		0
321050120CM		1.20	7.00	40.00	1.20	30.0	3	1849798		0
321050120CMX		1.20	7.00	40.00	1.20	30.0	3	1849799		0
321050130CM		1.30	7.00	40.00	1.30	30.0	3	1849802		0
321050130CMX		1.30	7.00	40.00	1.30	30.0	3	1849803		0
321050140CM		1.40	8.00	40.00	1.40	30.0	3	1849806		0
321050140CMX		1.40	8.00	40.00	1.40	30.0	3	1849807		0
321050150CM		1.50	8.00	40.00	1.50	30.0	3	1849811		0
321050150CMX		1.50	8.00	40.00	1.50	30.0	3	1849812		0
321050160CM		1.60	9.00	43.00	1.60	30.0	3	1849818		0
321050160CMX		1.60	9.00	43.00	1.60	30.0	3	1849819		0
321050170CM		1.70	9.00	43.00	1.70	30.0	3	1849822		0
321050170CMX		1.70	9.00	43.00	1.70	30.0	3	1849823		0
321050180CM		1.80	10.00	46.00	1.80	30.0	3	1849826		0
321050180CMX		1.80	10.00	46.00	1.80	30.0	3	1849827		0
321050190CM		1.90	10.00	46.00	1.90	30.0	3	1849831		0
321050190CMX		1.90	10.00	46.00	1.90	30.0	3	1849832		0
321050200CM		2.00	11.00	49.00	2.00	10.0	5	1849835		0
321050200CMX		2.00	11.00	49.00	2.00	10.0	5	1849836		0
321050210CM		2.10	11.00	49.00	2.10	10.0	5	1849845		0
321050210CMX		2.10	11.00	49.00	2.10	10.0	5	1849846		0
321050220CM		2.20	12.00	53.00	2.20	10.0	5	1849851		0
321050220CMX		2.20	12.00	53.00	2.20	10.0	5	1849852		0
321050230CM		2.30	12.00	53.00	2.30	10.0	5	1849855		0
321050230CMX		2.30	12.00	53.00	2.30	10.0	5	1849856		0
321050240CM		2.40	14.00	57.00	2.40	10.0	5	1849859		0
321050240CMX		2.40	14.00	57.00	2.40	10.0	5	1849860		0
321050250CM		2.50	14.00	57.00	2.50	10.0	5	1849863		0
321050250CMX		2.50	14.00	57.00	2.50	10.0	5	1849864		0
321050260CM		2.60	14.00	57.00	2.60	10.0	5	1849872		0
321050260CMX		2.60	14.00	57.00	2.60	10.0	5	1849873		0
321050270CM		2.70	15.00	61.00	2.70	10.0	5	1849876		0
321050270CMX		2.70	15.00	61.00	2.70	10.0	5	1849877		0
321050280CM		2.80	15.00	61.00	2.80	10.0	5	1849881		0
321050280CMX		2.80	15.00	61.00	2.80	10.0	5	1849882		0
321050290CM		2.90	15.00	61.00	2.90	10.0	5	1849885		0
321050290CMX		2.90	15.00	61.00	2.90	10.0	5	1849886		0
321050300CM		3.00	15.00	61.00	3.00	10.0	5	1849889		0
321050300CMX		3.00	15.00	61.00	3.00	10.0	5	1849890		0
321050310CM		3.10	16.00	65.00	3.10	10.0	5	1849902		0
321050310CMX		3.10	16.00	65.00	3.10	10.0	5	1849903		0
321050320CM		3.20	16.00	65.00	3.20	10.0	5	1849907		0
321050320CMX		3.20	16.00	65.00	3.20	10.0	5	1849908		0
321050330CM		3.30	16.00	65.00	3.30	10.0	5	1849913		0
321050330CMX		3.30	16.00	65.00	3.30	10.0	5	1849914		0
321050340CM		3.40	18.00	70.00	3.40	10.0	5	1849919		0
321050340CMX		3.40	18.00	70.00	3.40	10.0	5	1849920		0
321050350CM		3.50	18.00	70.00	3.50	10.0	5	1849923		0
321050350CMX		3.50	18.00	70.00	3.50	10.0	5	1849924		0
321050360CM		3.60	18.00	70.00	3.60	10.0	5	1849929		0
321050360CMX		3.60	18.00	70.00	3.60	10.0	5	1849930		0
321050370CM		3.70	18.00	70.00	3.70	10.0	5	1849934		0
321050370CMX		3.70	18.00	70.00	3.70	10.0	5	1849935		0
321050380CM		3.80	19.00	75.00	3.80	10.0	5	1849939		0
321050380CMX		3.80	19.00	75.00	3.80	10.0	5	1849940		0
321050390CM		3.90	19.00	75.00	3.90	10.0	5	1849943		0
321050390CMX		3.90	19.00	75.00	3.90	10.0	5	1849944		0
321050400CM		4.00	19.00	75.00	4.00	10.0	5	1849947		0
321050400CMX		4.00	19.00	75.00	4.00	10.0	5	1849948		0
321050410CM		4.10	19.00	75.00	4.10	10.0	5	1849960		0
321050410CMX		4.10	19.00	75.00	4.10	10.0	5	1849961		0
321050420CM		4.20	19.00	75.00	4.20	10.0	5	1849965		0
321050420CMX		4.20	19.00	75.00	4.20	10.0	5	1849966		0
321050430CM		4.30	21.00	80.00	4.30	10.0	5	1849969		0
321050430CMX		4.30	21.00	80.00	4.30	10.0	5	1849970		0
321050440CM		4.40	21.00	80.00	4.40	10.0	5	1849974		0
321050440CMX		4.40	21.00	80.00	4.40	10.0	5	1849975		0
321050450CM		4.50	21.00	80.00	4.50	10.0	5	1849978		0
321050450CMX		4.50	21.00	80.00	4.50	10.0	5	1849979		0
321050460CM		4.60	21.00	80.00	4.60	10.0	5	1849986		0
321050460CMX		4.60	21.00	80.00	4.60	10.0	5	1849987		0
321050470CM		4.70	21.00	80.00	4.70	10.0	5	1849990		0
321050470CMX		4.70	21.00	80.00	4.70	10.0	5	1849991		0
321050480CM		4.80	23.00	86.00	4.80	10.0	5	1849994		0
321050480CMX		4.80	23.00	86.00	4.80	10.0	5	1849995		0
321050490CM		4.90	23.00	86.00	4.90	10.0	5	1849998		0
321050490CMX		4.90	23.00	86.00	4.90	10.0	5	1849999		0
321050500CM		5.00	23.00	86.00	5.00	10.0	5	1850002		0
321050500CMX		5.00	23.00	86.00	5.00	10.0	5	1850003		0
321050510CM		5.10	23.00	86.00	5.10	10.0	5	1850014		0
321050510CMX		5.10	23.00	86.00	5.10	10.0	5	1850015		0
321050520CM		5.20	23.00	86.00	5.20	10.0	5	1850019		0
321050520CMX		5.20	23.00	86.00	5.20	10.0	5	1850020		0
321050530CM		5.30	26.00	93.00	5.30	10.0	5	1850024		0
321050530CMX		5.30	26.00	93.00	5.30	10.0	5	1850025		0
321050540CM		5.40	26.00	93.00	5.40	10.0	5	1850028		0
321050540CMX		5.40	26.00	93.00	5.40	10.0	5	1850029		0
321050550CM		5.50	26.00	93.00	5.50	10.0	6	1850032		0
321050550CMX		5.50	26.00	93.00	5.50	10.0	6	1850033		0
321050560CM		5.60	26.00	93.00	5.60	10.0	6	1850040		0
321050560CMX		5.60	26.00	93.00	5.60	10.0	6	1850041		0
321050570CM		5.70	26.00	93.00	5.70	10.0	6	1850044		0
321050570CMX		5.70	26.00	93.00	5.70	10.0	6	1850045		0
321050580CM		5.80	26.00	93.00	5.80	10.0	6	1850048		0
321050580CMX		5.80	26.00	93.00	5.80	10.0	6	1850049		0
321050590CM		5.90	26.00	93.00	5.90	10.0	6	1850053		0
321050590CMX		5.90	26.00	93.00	5.90	10.0	6	1850054		0
321050600CM		6.00	26.00	93.00	6.00	10.0	6	1850057		0
321050600CMX		6.00	26.00	93.00	6.00	10.0	6	1850058		0
321050610CM		6.10	28.00	101.00	6.10	10.0	6	1850069		0
321050610CMX		6.10	28.00	101.00	6.10	10.0	6	1850070		0
321050620CM		6.20	28.00	101.00	6.20	10.0	6	1850074		0
321050620CMX		6.20	28.00	101.00	6.20	10.0	6	1850075		0
321050630CM		6.30	28.00	101.00	6.30	10.0	6	1850080		0
321050630CMX		6.30	28.00	101.00	6.30	10.0	6	1850081		0
321050640CM		6.40	28.00	101.00	6.40	10.0	6	1850084		0
321050640CMX		6.40	28.00	101.00	6.40	10.0	6	1850085		0
321050650CM		6.50	28.00	101.00	6.50	10.0	6	1850088		0
321050650CMX		6.50	28.00	101.00	6.50	10.0	6	1850089		0
321050660CM		6.60	28.00	101.00	6.60	10.0	6	1850095		0
321050660CMX		6.60	28.00	101.00	6.60	10.0	6	1850096		0
321050670CM		6.70	31.00	109.00	6.70	10.0	6	1850101		0
321050670CMX		6.70	31.00	109.00	6.70	10.0	6	1850102		0
321050680CM		6.80	31.00	109.00	6.80	10.0	6	1850106		0
321050680CMX		6.80	31.00	109.00	6.80	10.0	6	1850107		0
321050690CM		6.90	31.00	109.00	6.90	10.0	6	1850110		0
321050690CMX		6.90	31.00	109.00	6.90	10.0	6	1850111		0
321050700CM		7.00	31.00	109.00	7.00	10.0	6	1850114		0
321050700CMX		7.00	31.00	109.00	7.00	10.0	6	1850115		0
321050710CM		7.10	31.00	109.00	7.10	10.0	6	1850122		0
321050710CMX		7.10	31.00	109.00	7.10	10.0	6	1850123		0
321050720CM		7.20	31.00	109.00	7.20	10.0	6	1850126		0
321050720CMX		7.20	31.00	109.00	7.20	10.0	6	1850127		0
321050730CM		7.30	31.00	109.00	7.30	10.0	6	1850130		0
321050730CMX		7.30	31.00	109.00	7.30	10.0	6	1850131		0
321050740CM		7.40	31.00	109.00	7.40	10.0	6	1850134		0
321050740CMX		7.40	31.00	109.00	7.40	10.0	6	1850135		0
321050750CM		7.50	33.00	117.00	7.50	10.0	6	1850138		0
321050750CMX		7.50	33.00	117.00	7.50	10.0	6	1850139		0
321050760CM		7.60	33.00	117.00	7.60	10.0	6	1850145		0
321050760CMX		7.60	33.00	117.00	7.60	10.0	6	1850146		0
321050770CM		7.70	33.00	117.00	7.70	10.0	6	1850149		0
321050770CMX		7.70	33.00	117.00	7.70	10.0	6	1850150		0
321050780CM		7.80	33.00	117.00	7.80	10.0	6	1850154		0
321050780CMX		7.80	33.00	117.00	7.80	10.0	6	1850155		0
321050790CM		7.90	33.00	117.00	7.90	10.0	6	1850158		0
321050790CMX		7.90	33.00	117.00	7.90	10.0	6	1850159		0
321050800CM		8.00	33.00	117.00	8.00	10.0	6	1850163		0
321050800CMX		8.00	33.00	117.00	8.00	10.0	6	1850164		0
321050810CM		8.10	33.00	117.00	8.10	10.0	6	1850176		0
321050810CMX		8.10	33.00	117.00	8.10	10.0	6	1850177		0
321050820CM		8.20	33.00	117.00	8.20	10.0	6	1850181		0
321050820CMX		8.20	33.00	117.00	8.20	10.0	6	1850182		0
321050830CM		8.30	33.00	117.00	8.30	10.0	6	1850185		0
321050830CMX		8.30	33.00	117.00	8.30	10.0	6	1850186		0
321050840CM		8.40	33.00	117.00	8.40	10.0	6	1850190		0
321050840CMX		8.40	33.00	117.00	8.40	10.0	6	1850191		0
321050850CM		8.50	36.00	125.00	8.50	10.0	6	1850194		0
321050850CMX		8.50	36.00	125.00	8.50	10.0	6	1850195		0
321050860CM		8.60	36.00	125.00	8.60	10.0	6	1850202		0
321050860CMX		8.60	36.00	125.00	8.60	10.0	6	1850203		0
321050870CM		8.70	36.00	125.00	8.70	10.0	6	1850206		0
321050870CMX		8.70	36.00	125.00	8.70	10.0	6	1850207		0
321050880CM		8.80	36.00	125.00	8.80	10.0	6	1850211		0
321050880CMX		8.80	36.00	125.00	8.80	10.0	6	1850212		0
321050890CM		8.90	36.00	125.00	8.90	10.0	6	1850216		0
321050890CMX		8.90	36.00	125.00	8.90	10.0	6	1850217		0
321050900CM		9.00	36.00	125.00	9.00	10.0	6	1850220		0
321050900CMX		9.00	36.00	125.00	9.00	10.0	6	1850221		0
321050910CM		9.10	36.00	125.00	9.10	10.0	6	1850227		0
321050910CMX		9.10	36.00	125.00	9.10	10.0	6	1850228		0
321050920CM		9.20	36.00	125.00	9.20	10.0	6	1850231		0
321050920CMX		9.20	36.00	125.00	9.20	10.0	6	1850232		0
321050930CM		9.30	36.00	125.00	9.30	10.0	6	1850235		0
321050930CMX		9.30	36.00	125.00	9.30	10.0	6	1850236		0
321050940CM		9.40	36.00	125.00	9.40	10.0	6	1850239		0
321050940CMX		9.40	36.00	125.00	9.40	10.0	6	1850240		0
321050950CM		9.50	38.00	133.00	9.50	10.0	6	1850244		0
321050950CMX		9.50	38.00	133.00	9.50	10.0	6	1850245		0
321050960CM		9.60	38.00	133.00	9.60	10.0	6	1850251		0
321050960CMX		9.60	38.00	133.00	9.60	10.0	6	1850252		0
321050970CM		9.70	38.00	133.00	9.70	10.0	6	1850255		0
321050970CMX		9.70	38.00	133.00	9.70	10.0	6	1850256		0
321050980CM		9.80	38.00	133.00	9.80	10.0	6	1850260		0
321050980CMX		9.80	38.00	133.00	9.80	10.0	6	1850261		0
321050990CM		9.90	38.00	133.00	9.90	10.0	6	1850264		0
321050990CMX		9.90	38.00	133.00	9.90	10.0	6	1850265		0
321051000CM		10.00	38.00	133.00	10.00	10.0	6	1850268		0
321051000CMX		10.00	38.00	133.00	10.00	10.0	6	1850269		0
321051050CM		10.50	41.00	142.00	10.50	10.0	7	1850281		0
321051050CMX		10.50	41.00	142.00	10.50	10.0	7	1850282		0
321051100CM		11.00	41.00	142.00	11.00	10.0	7	1850287		0
321051100CMX		11.00	41.00	142.00	11.00	10.0	7	1850288		0
321051150CM		11.50	44.00	151.00	11.50	10.0	7	1850296		0
321051150CMX		11.50	44.00	151.00	11.50	10.0	7	1850297		0
321051200CM		12.00	44.00	151.00	12.00	10.0	7	1850301		0
321051200CMX		12.00	44.00	151.00	12.00	10.0	7	1850302		0
321051250CM		12.50	44.00	151.00	12.50	10.0	7	1850314		0
321051250CMX		12.50	44.00	151.00	12.50	10.0	7	1850315		0
321051300CM		13.00	44.00	151.00	13.00	10.0	7	1850320		0
321051300CMX		13.00	44.00	151.00	13.00	10.0	7	1850321		0
321051350CM		13.50	47.00	160.00	13.50	10.0	7	1850328		0
321051350CMX		13.50	47.00	160.00	13.50	10.0	7	1850329		0
321051400CM		14.00	47.00	160.00	14.00	10.0	7	1850334		0
321051400CMX		14.00	47.00	160.00	14.00	10.0	7	1850335		0
321051450CM		14.50	50.00	162.00	14.50	10.0	7	1850343		0
321051450CMX		14.50	50.00	162.00	14.50	10.0	7	1850344		0
321051500CM		15.00	50.00	162.00	15.00	10.0	7	1850349		0
321051500CMX		15.00	50.00	162.00	15.00	10.0	7	1850350		0
321051550CM		15.50	52.00	170.00	15.50	10.0	7	1850359		0
321051550CMX		15.50	52.00	170.00	15.50	10.0	7	1850360		0
321051600CM		16.00	52.00	170.00	16.00	10.0	7	1850363		0
321051600CMX		16.00	52.00	170.00	16.00	10.0	7	1850364		0

Click here for the Cutting Parameters for this family

Site Map

Milling Hole Making Reaming

Any use of the UOP e-catalogue and any transactions which may be performed as a result of using this program are subject to UOP’s General Terms of Sale
Privacy Policy Cookie Policy
© 2026 UOP S.p.A. Manufacturer of Metalworking Tools (UOP.it) All Rights Reserved
