Reaming
Main Application

Cutting Parameters
for this family

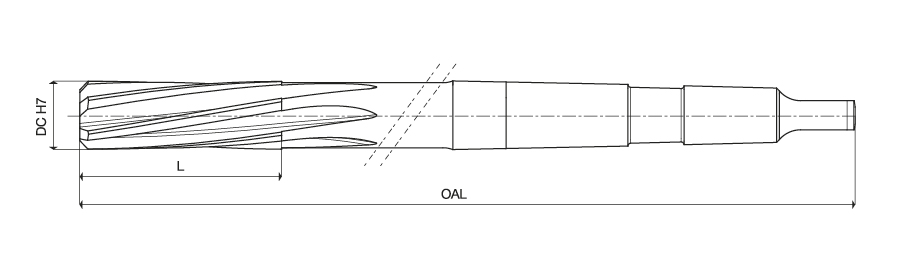

32150 : machine reamers

SKIN

LAMBDA 10

UNI 6854 DIN 208B ISO 521

Designation	GICODE	DC	APMX	OAL	M.T.	NOF	GICAT	GIREM	giic
321500600CM		6.00	26.00	138.00	1	6	1850390		0
321500800CM		8.00	33.00	156.00	1	6	1850410		0
321501100CM		11.00	41.00	175.00	1	7	1850442		0
321501200CM		12.00	44.00	182.00	1	7	1850451		0
321501200CMX		12.00	44.00	182.00	1	7	1850452		0
321501300CM		13.00	44.00	182.00	1	7	1850462		0
321501400CM		14.00	47.00	189.00	1	7	1850471		0
321501500CM		15.00	50.00	204.00	2	7	1850483		0
321501600AM		16.00	52.00	210.00	2	7	1850490		0
321501600CM		16.00	52.00	210.00	2	7	1850495		0
321501600CMX		16.00	52.00	210.00	2	7	1850496		0
321501700AM		17.00	54.00	214.00	2	8	1850506		0
321501700CM		17.00	54.00	214.00	2	8	1850511		0
321501700CMX		17.00	54.00	214.00	2	8	1850512		0
321501800AM		18.00	56.00	219.00	2	8	1850517		0
321501800CM		18.00	56.00	219.00	2	8	1850521		0
321501800CMX		18.00	56.00	219.00	2	8	1850522		0
321501900AM		19.00	58.00	223.00	2	8	1850531		0
321501900CM		19.00	58.00	223.00	2	8	1850535		0
321501900CMX		19.00	58.00	223.00	2	8	1850536		0
321502000AM		20.00	60.00	228.00	2	8	1850541		0
321502000CM		20.00	60.00	228.00	2	8	1850546		0
321502000CMX		20.00	60.00	228.00	2	8	1850547		0
321502100AM		21.00	62.00	232.00	2	8	1850556		0
321502100CM		21.00	62.00	232.00	2	8	1850561		0
321502100CMX		21.00	62.00	232.00	2	8	1850562		0
321502200AM		22.00	64.00	237.00	2	8	1850567		0
321502200CM		22.00	64.00	237.00	2	8	1850571		0
321502200CMX		22.00	64.00	237.00	2	8	1850572		0
321502300AM		23.00	66.00	241.00	2	8	1850580		0
321502300CM		23.00	66.00	241.00	2	8	1850585		0
321502300CMX		23.00	66.00	241.00	2	8	1850586		0
321502400AM		24.00	68.00	268.00	3	8	1850592		0
321502400CM		24.00	68.00	268.00	3	8	1850596		0
321502400CMX		24.00	68.00	268.00	3	8	1850597		0
321502500AM		25.00	68.00	268.00	3	8	1850604		0
321502500CM		25.00	68.00	268.00	3	8	1850608		0
321502500CMX		25.00	68.00	268.00	3	8	1850609		0
321502600AM		26.00	70.00	273.00	3	8	1850617		0
321502600CM		26.00	70.00	273.00	3	8	1850621		0
321502600CMX		26.00	70.00	273.00	3	8	1850622		0
321502700AM		27.00	71.00	277.00	3	10	1850628		0
321502700CM		27.00	71.00	277.00	3	10	1850632		0
321502700CMX		27.00	71.00	277.00	3	10	1850633		0
321502800AM		28.00	71.00	277.00	3	10	1850638		0
321502800CM		28.00	71.00	277.00	3	10	1850642		0
321502800CMX		28.00	71.00	277.00	3	10	1850643		0
321502900AM		29.00	73.00	281.00	3	10	1850648		0
321502900CM		29.00	73.00	281.00	3	10	1850652		0
321502900CMX		29.00	73.00	281.00	3	10	1850653		0
321503000AM		30.00	73.00	281.00	3	10	1850656		0
321503000CM		30.00	73.00	281.00	3	10	1850660		0
321503000CMX		30.00	73.00	281.00	3	10	1850661		0
321503100AM		31.00	75.00	285.00	3	10	1850668		0
321503100CM		31.00	75.00	285.00	3	10	1850672		0
321503100CMX		31.00	75.00	285.00	3	10	1850673		0
321503200AM		32.00	77.00	317.00	4	10	1850676		0
321503200CM		32.00	77.00	317.00	4	10	1850680		0
321503200CMX		32.00	77.00	317.00	4	10	1850681		0
321503300AM		33.00	77.00	317.00	4	10	1850686		0
321503300CM		33.00	77.00	317.00	4	10	1850690		0
321503300CMX		33.00	77.00	317.00	4	10	1850691		0
321503400AM		34.00	78.00	321.00	4	10	1850694		0
321503400CM		34.00	78.00	321.00	4	10	1850698		0
321503400CMX		34.00	78.00	321.00	4	10	1850699		0
321503500AM		35.00	78.00	321.00	4	10	1850704		0
321503500CM		35.00	78.00	321.00	4	10	1850708		0
321503500CMX		35.00	78.00	321.00	4	10	1850709		0
321503600AM		36.00	79.00	325.00	4	10	1850713		0
321503600CM		36.00	79.00	325.00	4	10	1850717		0
321503600CMX		36.00	79.00	325.00	4	10	1850718		0
321503700AM		37.00	79.00	325.00	4	10	1850721		0
321503700CM		37.00	79.00	325.00	4	10	1850725		0
321503700CMX		37.00	79.00	325.00	4	10	1850726		0
321503800AM		38.00	81.00	329.00	4	10	1850729		0
321503800CM		38.00	81.00	329.00	4	10	1850733		0
321503800CMX		38.00	81.00	329.00	4	10	1850734		0
321503900AM		39.00	81.00	329.00	4	10	1850737		0
321503900CM		39.00	81.00	329.00	4	10	1850741		0
321503900CMX		39.00	81.00	329.00	4	10	1850742		0
321504000AM		40.00	81.00	329.00	4	10	1850746		0
321504000CM		40.00	81.00	329.00	4	10	1850750		0
321504000CMX		40.00	81.00	329.00	4	10	1850751		0

Click here for the Cutting Parameters for this family
