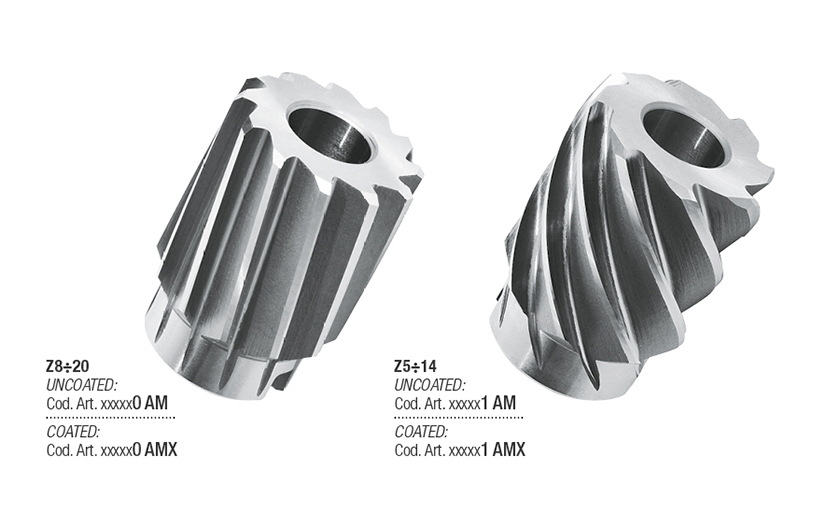

33105 : Shell reamers taper hole 1:30

SKIN

LAMBDA 10

LAMBDA 45

UNI 6855 DIN 219B ISO 2402

Designation	GICODE	DC	OAL	DCONMS	NOF	GICAT	GIREM	giic
331050200AM		20.00	40.00	10.00	8	1850755		0
331050200AMX		20.00	40.00	10.00	8	1850756		0
331050210AM		21.00	40.00	10.00	8	1850766		0
331050210AMX		21.00	40.00	10.00	8	1850767		0
331050220AM		22.00	40.00	10.00	8	1850774		0
331050220AMX		22.00	40.00	10.00	8	1850775		0
331050230AM		23.00	40.00	10.00	8	1850785		0
331050230AMX		23.00	40.00	10.00	8	1850786		0
331050240AM		24.00	45.00	13.00	10	1850793		0
331050240AMX		24.00	45.00	13.00	10	1850794		0
331050250AM		25.00	45.00	13.00	10	1850802		0
331050250AMX		25.00	45.00	13.00	10	1850803		0
331050260AM		26.00	45.00	13.00	10	1850814		0
331050260AMX		26.00	45.00	13.00	10	1850815		0
331050270AM		27.00	45.00	13.00	10	1850824		0
331050270AMX		27.00	45.00	13.00	10	1850825		0
331050280AM		28.00	45.00	13.00	10	1850832		0
331050280AMX		28.00	45.00	13.00	10	1850833		0
331050290AM		29.00	45.00	13.00	10	1850841		0
331050290AMX		29.00	45.00	13.00	10	1850842		0
331050300AM		30.00	45.00	13.00	10	1850850		0
331050300AMX		30.00	45.00	13.00	10	1850851		0
331050310AM		31.00	50.00	16.00	10	1850862		0
331050310AMX		31.00	50.00	16.00	10	1850863		0
331050320AM		32.00	50.00	16.00	10	1850870		0
331050320AMX		32.00	50.00	16.00	10	1850871		0
331050330AM		33.00	50.00	16.00	10	1850881		0
331050330AMX		33.00	50.00	16.00	10	1850882		0
331050340AM		34.00	50.00	16.00	10	1850889		0
331050340AMX		34.00	50.00	16.00	10	1850890		0
331050350AM		35.00	50.00	16.00	10	1850898		0
331050350AMX		35.00	50.00	16.00	10	1850899		0
331050360AM		36.00	56.00	19.00	12	1850911		0
331050360AMX		36.00	56.00	19.00	12	1850912		0
331050370AM		37.00	56.00	19.00	12	1850919		0
331050370AMX		37.00	56.00	19.00	12	1850920		0
331050380AM		38.00	56.00	19.00	12	1850927		0
331050380AMX		38.00	56.00	19.00	12	1850928		0
331050390AM		39.00	56.00	19.00	12	1850937		0
331050390AMX		39.00	56.00	19.00	12	1850938		0
331050400AM		40.00	56.00	19.00	12	1850945		0
331050400AMX		40.00	56.00	19.00	12	1850946		0
331050420AM		42.00	56.00	19.00	12	1850959		0
331050420AMX		42.00	56.00	19.00	12	1850960		0
331050440AM		44.00	63.00	22.00	12	1850970		0
331050440AMX		44.00	63.00	22.00	12	1850971		0
331050450AM		45.00	63.00	22.00	12	1850979		0
331050450AMX		45.00	63.00	22.00	12	1850980		0
331050460AM		46.00	63.00	22.00	14	1850990		0
331050460AMX		46.00	63.00	22.00	14	1850991		0
331050470AM		47.00	63.00	22.00	14	1850998		0
331050470AMX		47.00	63.00	22.00	14	1850999		0
331050480AM		48.00	63.00	22.00	14	1851007		0
331050480AMX		48.00	63.00	22.00	14	1851008		0
331050490AM		49.00	63.00	22.00	14	1851018		0
331050490AMX		49.00	63.00	22.00	14	1851019		0
331050500AM		50.00	63.00	22.00	14	1851026		0
331050500AMX		50.00	63.00	22.00	14	1851027		0
331050520AM		52.00	71.00	27.00	14	1851040		0
331050520AMX		52.00	71.00	27.00	14	1851041		0
331050550AM		55.00	71.00	27.00	14	1851048		0
331050550AMX		55.00	71.00	27.00	14	1851049		0
331050580AM		58.00	71.00	27.00	14	1851058		0
331050580AMX		58.00	71.00	27.00	14	1851059		0
331050600AM		60.00	71.00	27.00	16	1851067		0
331050600AMX		60.00	71.00	27.00	16	1851068		0
331050601AM		60.00	71.00	27.00	10	1851071		0
331050620AM		62.00	80.00	32.00	16	1851075		0
331050620AMX		62.00	80.00	32.00	16	1851076		0
331050650AM		65.00	80.00	32.00	16	1851083		0
331050650AMX		65.00	80.00	32.00	16	1851084		0
331050680AM		68.00	80.00	32.00	16	1851091		0
331050680AMX		68.00	80.00	32.00	16	1851092		0
331050700AM		70.00	80.00	32.00	16	1851099		0
331050700AMX		70.00	80.00	32.00	16	1851100		0
331050720AM		72.00	90.00	40.00	16	1851108		0
331050720AMX		72.00	90.00	40.00	16	1851109		0
331050750AM		75.00	90.00	40.00	16	1851116		0
331050750AMX		75.00	90.00	40.00	16	1851117		0
331050780AM		78.00	90.00	40.00	16	1851124		0
331050780AMX		78.00	90.00	40.00	16	1851125		0
331050800AM		80.00	90.00	40.00	20	1851132		0
331050800AMX		80.00	90.00	40.00	20	1851133		0
331050820AM		82.00	90.00	40.00	20	1851140		0
331050820AMX		82.00	90.00	40.00	20	1851141		0
331050850AM		85.00	90.00	40.00	20	1851148		0
331050850AMX		85.00	90.00	40.00	20	1851149		0
331050851AM		85.00	90.00	40.00	12	1851152		0
331050880AM		88.00	100.00	50.00	20	1851156		0
331050880AMX		88.00	100.00	50.00	20	1851157		0
331050900AM		90.00	100.00	50.00	20	1851164		0
331050900AMX		90.00	100.00	50.00	20	1851165		0
331050920AM		92.00	100.00	50.00	20	1851174		0
331050920AMX		92.00	100.00	50.00	20	1851175		0
331050950AM		95.00	100.00	50.00	20	1851182		0
331050950AMX		95.00	100.00	50.00	20	1851183		0
331050980AM		98.00	100.00	50.00	20	1851190		0
331050980AMX		98.00	100.00	50.00	20	1851191		0
331051000AM		100.00	100.00	50.00	20	1851198		0
331051000AMX		100.00	100.00	50.00	20	1851199		0
331051001AM		100.00	100.00	50.00	14	1851202		0

Click here for the Cutting Parameters for this family
