UOP Cutting Tools - Metal Working Tools - Milling -

Cutting Parameters
for this family

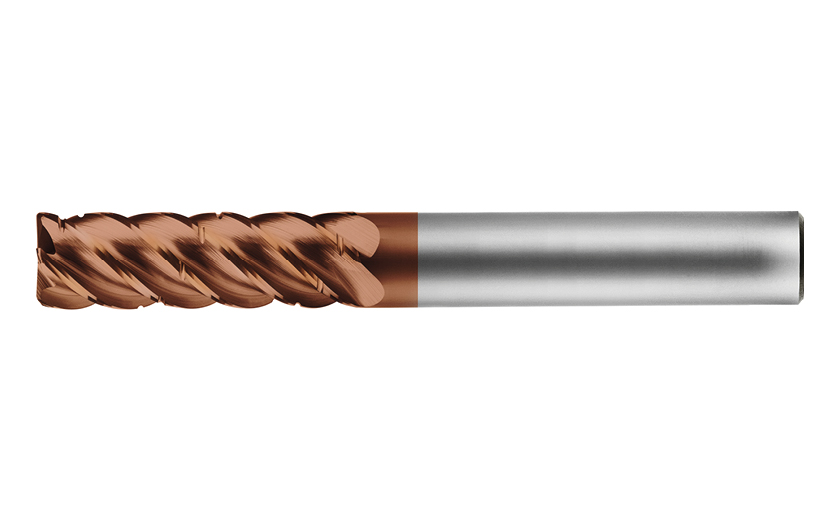

797TRU5 : Maximum axial depth of cut. Axial Width of cut up to 4DC

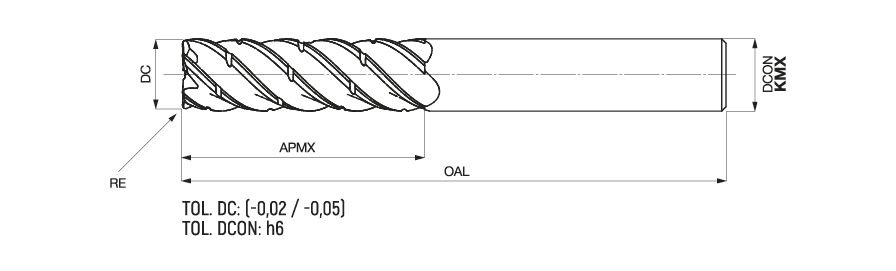

Designation	GICODE	DC	DCONMS	OAL	APMX	RE	NOF	GICAT	giic
797TRU5R020802KMX		8.00	8.00	76.00	33.00	0.20	5	1843136	1
797TRU5R050802KMX		8.00	8.00	76.00	33.00	0.50	5	1843134	1
797TRU5R100802KMX		8.00	8.00	76.00	33.00	1.00	5	1843132	1
797TRU5R021002KMX		10.00	10.00	88.00	41.00	0.20	5	1843130	1
797TRU5R051002KMX		10.00	10.00	88.00	41.00	0.50	5	1843128	1
797TRU5R101002KMX	Y	10.00	10.00	88.00	41.00	1.00	5	1843126	1
797TRU5R021202KMX		12.00	12.00	100.00	49.00	0.20	5	1843093	1
797TRU5R051202KMX		12.00	12.00	100.00	49.00	0.50	5	1843095	1
797TRU5R101202KMX		12.00	12.00	100.00	49.00	1.00	5	1843099	0
797TRU5R041602KMX		16.00	16.00	122.00	65.00	0.40	5	1843104	1
797TRU5R101602KMX		16.00	16.00	122.00	65.00	1.00	5	1843102	0
797TRU5R201602KMX		16.00	16.00	122.00	65.00	2.00	5	1843124	1
797TRU5R301602KMX		16.00	16.00	122.00	65.00	3.00	5	1843122	1
797TRU5R042002KMX		20.00	20.00	142.00	81.00	0.40	5	1843097	1
797TRU5R102002KMX		20.00	20.00	142.00	81.00	1.00	5	1843120	1
797TRU5R202002KMX		20.00	20.00	142.00	81.00	2.00	5	1843118	1
797TRU5R302002KMX		20.00	20.00	142.00	81.00	3.00	5	1843116	1

Click here for the Cutting Parameters for this family
