Milling
>
>
797TRU6
Milling
Main Application
Cutting Parameters
for this family
797TRU6 :

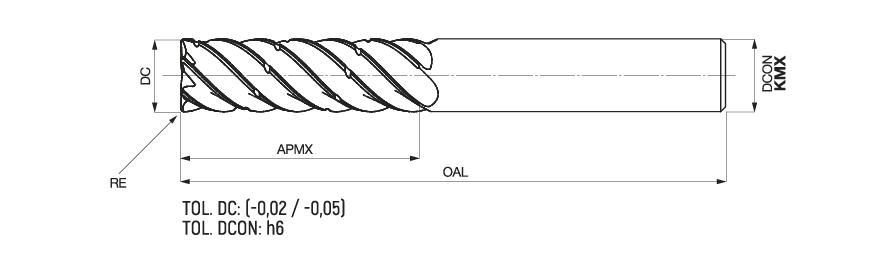

Maximum axial depth of cut. Axial Width of cut up to 3DC
Designation
GICODE
DC
DCONMS
OAL
APMX
RE
NOF
GICAT
GIREM
giic
797TRU6R020800KMX
8.00
8.00
63.00
17.00
0.20
6
1843141
0
797TRU6R020801KMX
8.00
8.00
68.00
25.00
0.20
6
1843147
0
797TRU6R050800KMX
8.00
8.00
63.00
17.00
0.50
6
1843143
0
797TRU6R050801KMX
8.00
8.00
68.00
25.00
0.50
6
1843149
0
797TRU6R100800KMX
8.00
8.00
63.00
17.00
1.00
6
1843145
0
797TRU6R100801KMX
8.00
8.00
68.00
25.00
1.00
6
1843151
0
797TRU6R021000KMX
10.00
10.00
66.00
21.00
0.20
6
1843153
0
797TRU6R021001KMX
10.00
10.00
80.00
31.00
0.20
6
1843159
0
797TRU6R051000KMX
10.00
10.00
66.00
21.00
0.50
6
1843155
0
797TRU6R051001KMX
10.00
10.00
80.00
31.00
0.50
6
1843161
0
797TRU6R101000KMX
10.00
10.00
66.00
21.00
1.00
6
1843157
0
797TRU6R101001KMX
10.00
10.00
80.00
31.00
1.00
6
1843163
0
797TRU6R021200KMX
12.00
12.00
83.00
25.00
0.20
6
1843165
0
797TRU6R021201KMX
12.00
12.00
95.00
37.00
0.20
6
1843106
0
797TRU6R051200KMX
12.00
12.00
83.00
25.00
0.50
6
1843167
0
797TRU6R051201KMX
12.00
12.00
95.00
37.00
0.50
6
1843108
0
797TRU6R101200KMX
12.00
12.00
83.00
25.00
1.00
6
1843169
0
797TRU6R101201KMX
12.00
12.00
95.00
37.00
1.00
6
1843171
0
797TRU6R041600KMX
16.00
16.00
92.00
33.00
0.40
6
1843173
0
797TRU6R041601KMX
16.00
16.00
106.00
49.00
0.40
6
1843112
0
797TRU6R101600KMX
16.00
16.00
92.00
33.00
1.00
6
1843175
0
797TRU6R101601KMX
16.00
16.00
106.00
49.00
1.00
6
1843110
0
797TRU6R201600KMX
16.00
16.00
92.00
33.00
2.00
6
1843177
0
797TRU6R201601KMX
16.00
16.00
106.00
49.00
2.00
6
1843209
0
797TRU6R301600KMX
16.00
16.00
92.00
33.00
3.00
6
1843195
0
797TRU6R301601KMX
16.00
16.00
106.00
49.00
3.00
6
1843226
0
797TRU6R042000KMX
20.00
20.00
104.00
41.00
0.40
6
1843269
0
797TRU6R042001KMX
20.00
20.00
125.00
61.00
0.40
6
1843358
0
797TRU6R102000KMX
20.00
20.00
104.00
41.00
1.00
6
1843289
0
797TRU6R102001KMX
20.00
20.00
125.00
61.00
1.00
6
1843370
0
797TRU6R202000KMX
20.00
20.00
104.00
41.00
2.00
6
1843314
0
797TRU6R202001KMX
20.00
20.00
125.00
61.00
2.00
6
1843379
0
797TRU6R302000KMX
20.00
20.00
104.00
41.00
3.00
6
1843337
0
797TRU6R302001KMX
20.00
20.00
125.00
61.00
3.00
6
1843399
0
Click here for the Cutting Parameters for this family
