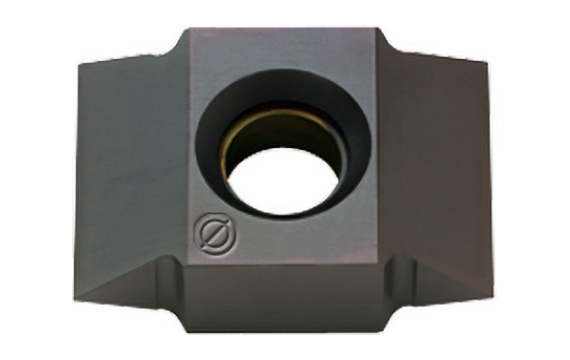

XNL323-102 : 4-schneidige Form-WSP für Gewinde mit Steigung 1,5-2,5 mm

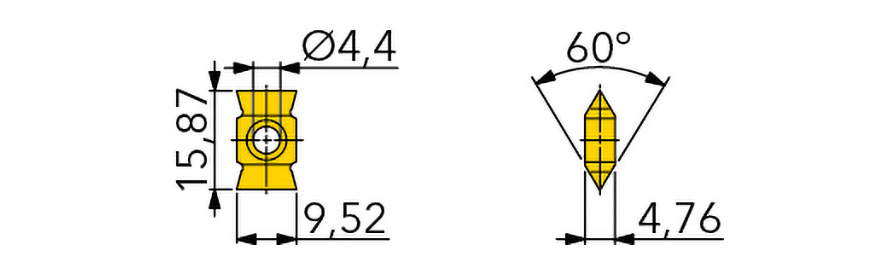

Designation	l	d	t	D1	Drehrich	Z	E r	a n hs	P min.	P max.	T	f min.	f max.	ap min.	ap max.	HM	ESP	Tolkl.	Bem.	Befestig	Form	Normbeze	SC-WSP	E6	ISYC	DIN-BLD	NORM	GICAT	GIREM	giic	GICODE	Grade
XNL323-102	15.87	9.52	4.76	4.40	N	4	90.0	30.0~	1.50	2.50	Thread-INS~	0.05	0.15	1.50~	2.50~	0.12~	G20~	~	Tangential~	3~	Rechteckig~	0~	XNL323-2___N~	0~	201-0~	SPJ-0~	DIN 4000-76~	5861905		1		IN0545

For cutting speed recommendations, click on the required grade number related to specific item geometry
