TaeguTec Cutting Tools - Metal Working Tools - Turning -

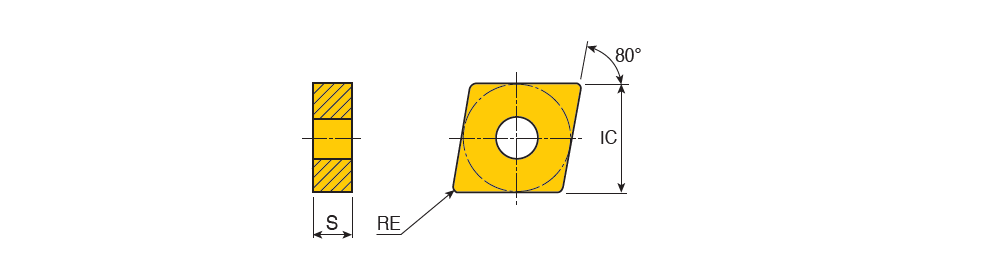

CNMG-FS (RHINO) : Negative 80° Rhombic RHINOTURN inserts for super-finishing of steel

Designation	IC	S	RE	ft (min)	ft (max)	ap (min)	ap (max)	CBMD	alpha	AN	CEDC	Precise	Utility	l	ClssID	SC	RHINO	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
CNMG 090402 FS	9.52	4.76	0.20	0.05	0.25	0.20	1.50	FS ~	80~	0.00~	4~	~	U ~	9.70~	71DD68D301C30 ~	C ~	RHINO-TURN ~	Cermet ~	8115B ~	2~	ISO$CN0904022NB$$02 ~	330.5 ~	CNMG ~	Y ~	9 ~	6212213	3	TT8115B CT3000 PV3010
CNMG 090404 FS	9.52	4.76	0.40	0.07	0.30	0.25	1.50	FS ~	80~	0.00~	4~	~	U ~	9.70~	71DD68D301C30 ~	C ~	RHINO-TURN ~	Cermet ~	8125B ~	2~	ISO$CN0904042NB$$04 ~	331 FS ~	CNMG ~	Y ~	9 ~	6212516	3	TT8125B CT3000 PV3010
CNMG 090408 FS	9.52	4.76	0.80	0.10	0.30	0.50	1.50	FS ~	80~	0.00~	4~	~	U ~	9.70~	71DD68D301C30 ~	C ~	RHINO-TURN ~	Cermet ~	8115B ~	2~	ISO$CN0904082NB$$08 ~	332 FS ~	CNMG ~	Y ~	~	6236480	4	TT8125B TT8115B CT3000 PV3010
