TaeguTec Cutting Tools - Metal Working Tools - Turning -

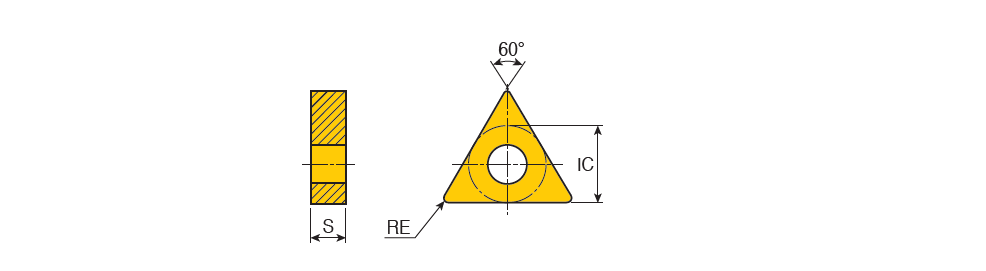

TNMG-FS (RHINO) : Negative 60° Triangular RHINOTURN inserts for super- finishing of steel

Designation	IC	S	RE	ap (min)	ap (max)	ft (min)	ft (max)	CBMD	alpha	AN	CEDC	Precise	Utility	l	ClssID	SC	RHINO	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
TNMG 130402 FS	7.94	4.76	0.20	0.20	1.00	0.05	0.25	FS ~	60~	0.00~	6~	~	U ~	13.00~	71DD68D8446CE ~	T ~	RHINO-TURN ~	Cermet ~	8115B ~	2~	ISO$TN1304022NB$$02 ~	2.530. ~	TNMG ~	Y ~	13 ~	6242853	3	TT8115B CT3000 PV3010
TNMG 130404 FS	7.94	4.76	0.40	0.25	1.00	0.07	0.30	FS ~	60~	0.00~	6~	~	U ~	13.00~	71DD68D8446CE ~	T ~	RHINO-TURN ~	Cermet ~	CT3000~	2~	ISO$TN1304042NB$$04 ~	2.531 ~	TNMG ~	Y ~	13 ~	6140248	2	CT3000 PV3010
TNMG 130408 FS	7.94	4.76	0.80	0.50	1.00	0.10	0.30	FS ~	60~	0.00~	6~	~	U ~	13.00~	71DD68D8446CE ~	T ~	RHINO-TURN ~	Cermet ~	8125B ~	2~	ISO$TN1304082NB$$08 ~	2.532 ~	TNMG ~	Y ~	~	6241838	3	TT8125B CT3000 PV3010
