TaeguTec Cutting Tools - Metal Working Tools - Turning -

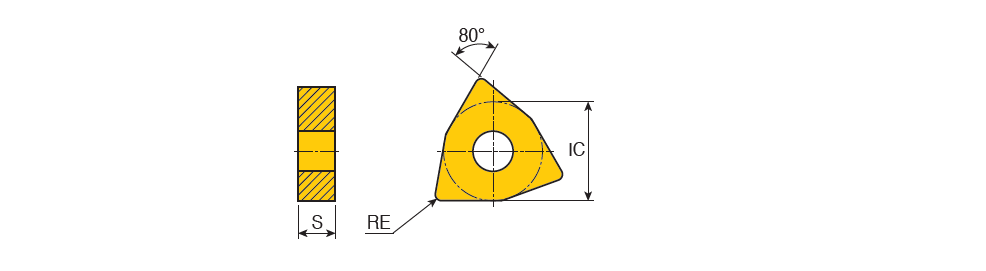

WNMX-FS (RHINO) : Negative 80° Trigon RHINOTURN inserts for super-finishing of steel

Designation	IC	S	RE	ap (min)	ap (max)	ft (min)	ft (max)	CBMD	alpha	AN	CEDC	Precise	Utility	l	ClssID	SC	RHINO	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
WNMX 060404 FS	9.52	4.76	0.40	0.25	1.50	0.07	0.30	FS ~	80~	0.00~	6~	~	U ~	6.52~	71DD68D73218C ~	W ~	RHINO-TURN ~	Cermet ~	8125B ~	2~	ISO$WN0604042NA$$04 ~	331 FS ~	WNMX ~	Y ~	6 ~	6241220		3		TT8125B CT3000 PV3010
WNMX 060408 FS	9.52	4.76	0.80	0.50	1.50	0.10	0.30	FS ~	80~	0.00~	6~	~	U ~	6.52~	71DD68D73218C ~	W ~	RHINO-TURN ~	Cermet ~	8125B ~	2~	ISO$WN0604082NA$$08 ~	332 FS ~	WNMX ~	Y ~	6 ~	6241747		2		TT8125B CT3000
